AFAM chain kit for Suzuki GS 500 01-08 520 XHR2G chain kit

AFAM chain kit for Suzuki GS 500 01-08 520 XHR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with an appropriate connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the Suzuki GS 500 BK 2001-2008 chain kit

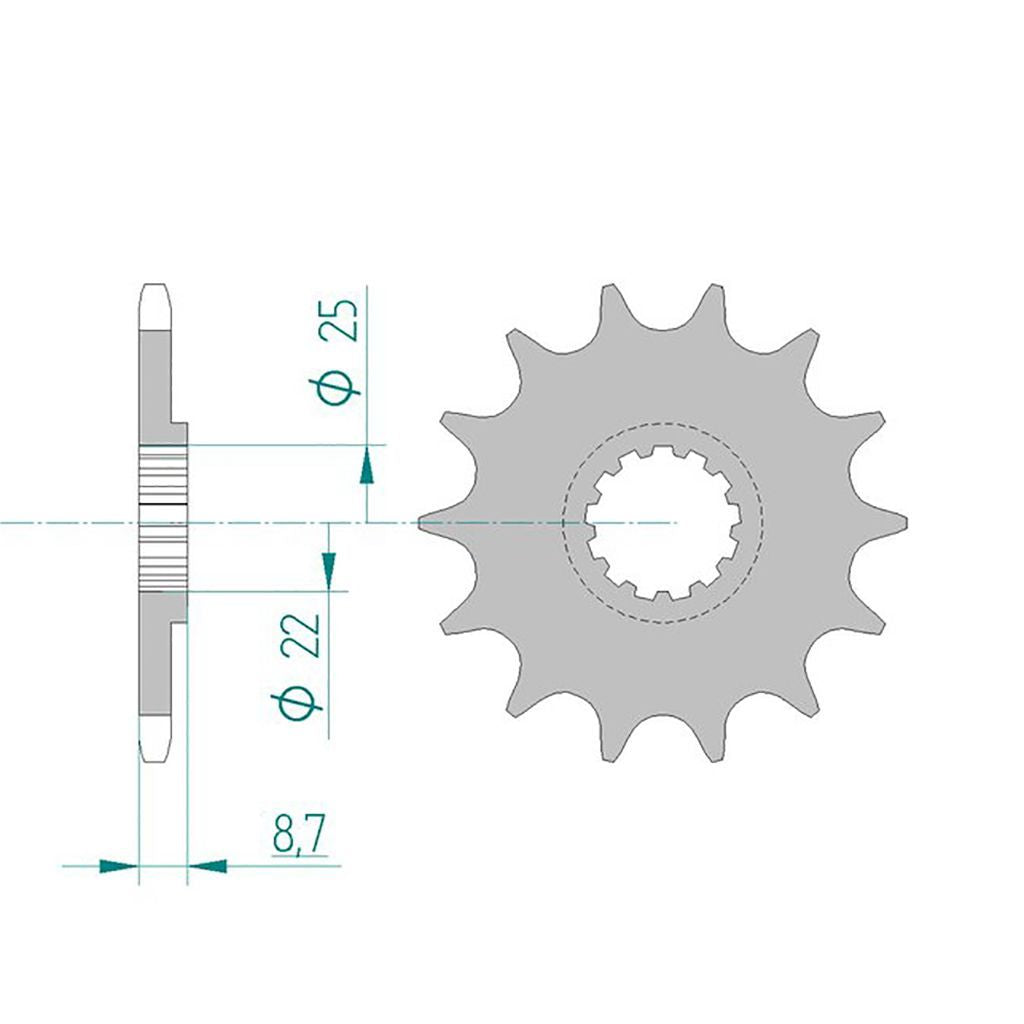

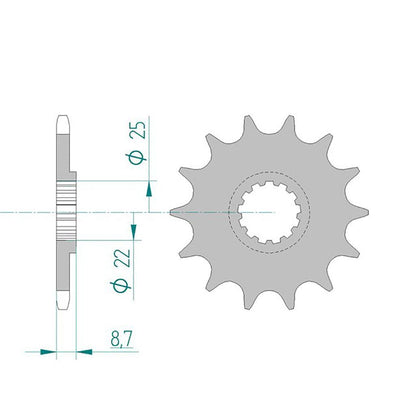

• Front sprocket: AFAM front sprocket #520 16 teeth - a22505.16
• Chain: AFAM chain 520 XHR2-G Xs-Ring 110 w. rivet link - a520xhr2.g.110

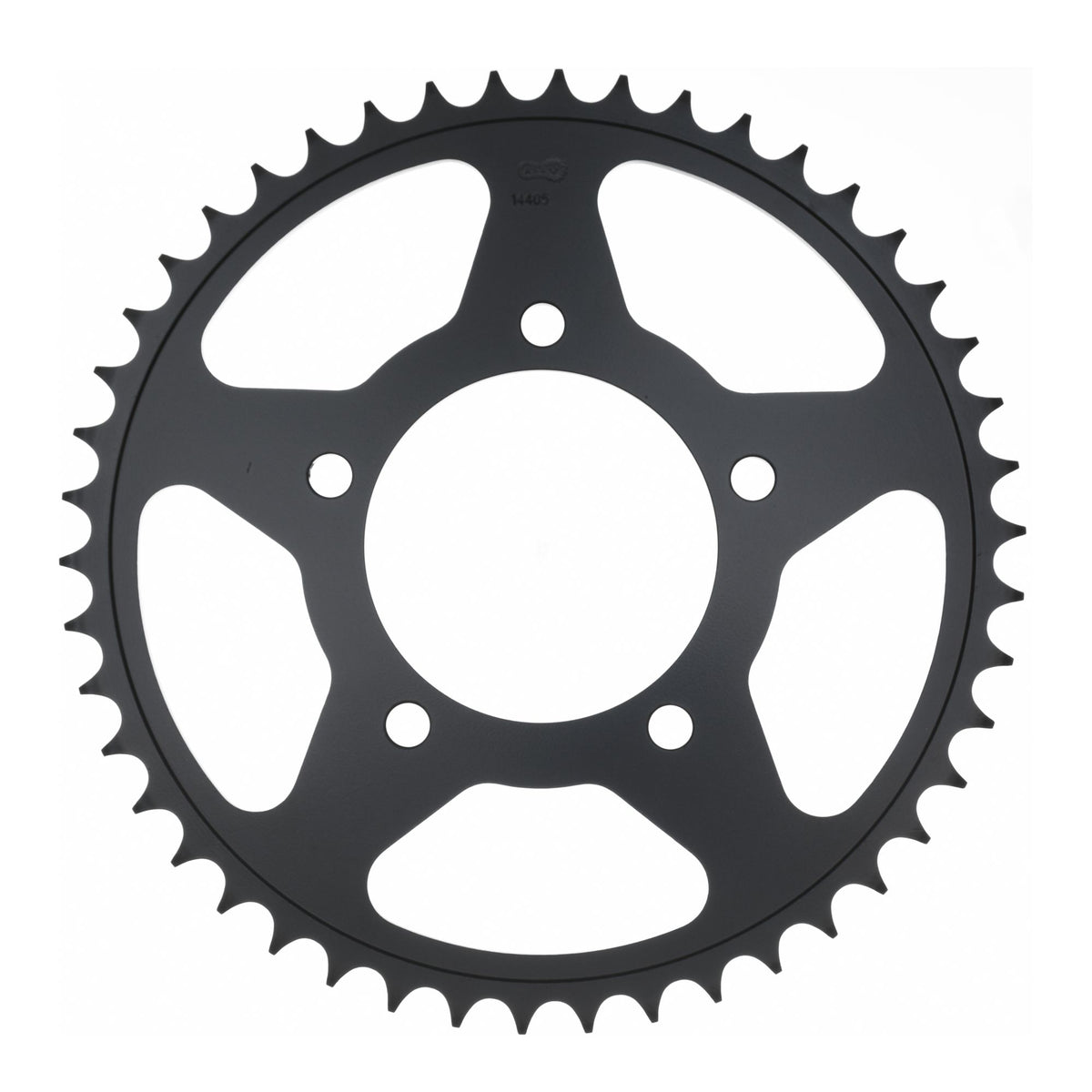

• Rear sprocket: AFAM rear sprocket STEEL #520 39 teeth - a14405.39
• Gear ratio front sprocket-chain-rear sprocket: 16-110-39

AFAM 520 XHR2-G

Hyper-reinforced chain with smooth-running properties. The "all-rounder"!
Xs-Ring chain
Color: Gold
Application by displacement: up to 1000 cc / street and sport

Technical specifications:
Pitch: 520
Pin length: 20.80 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-52003

Suitable for

Suzuki 251 - 500 cc GS 500 BK 2001
Suzuki 251 - 500 cc GS 500 BK 2002
Suzuki 251 - 500 cc GS 500 BK 2003
Suzuki 251 - 500 cc GS 500 BK 2004
Suzuki 251 - 500 cc GS 500 BK 2005
Suzuki 251 - 500 cc GS 500 BK 2006
Suzuki 251 - 500 cc GS 500 BK 2007
Suzuki 251 - 500 cc GS 500 BK 2008
