AFAM chain kit for Suzuki GS 550 E 78-79 530 XMR3 chain kit

AFAM Chain Kit for Suzuki GS 550 E 78-79 530 XMR3 Chain Kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the Suzuki GS 550 E GS550 1978-1979 chain kit

• Front sprocket: AFAM front sprocket #530 15 teeth - a28400.15

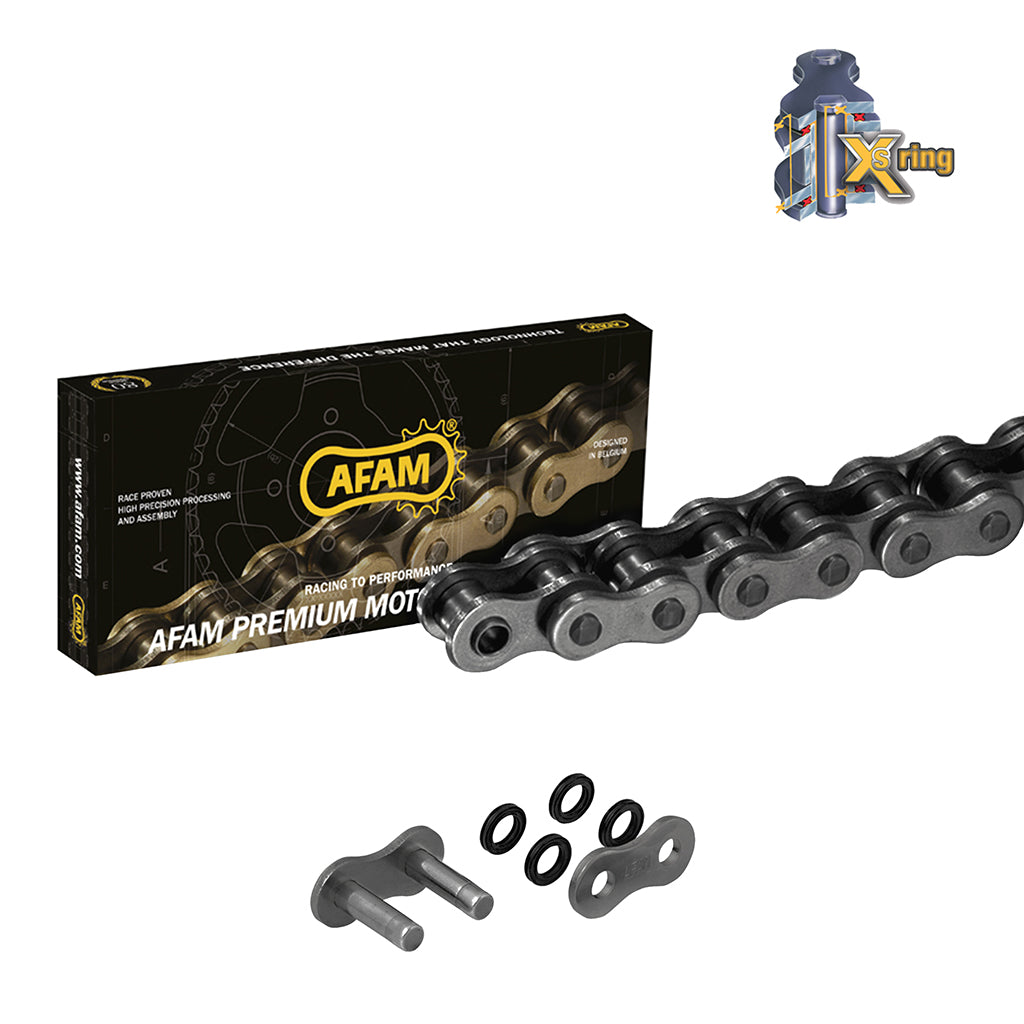

• Chain: AFAM chain 530 XMR3 Xs-ring 110 w. rivet link - a530xmr3.110

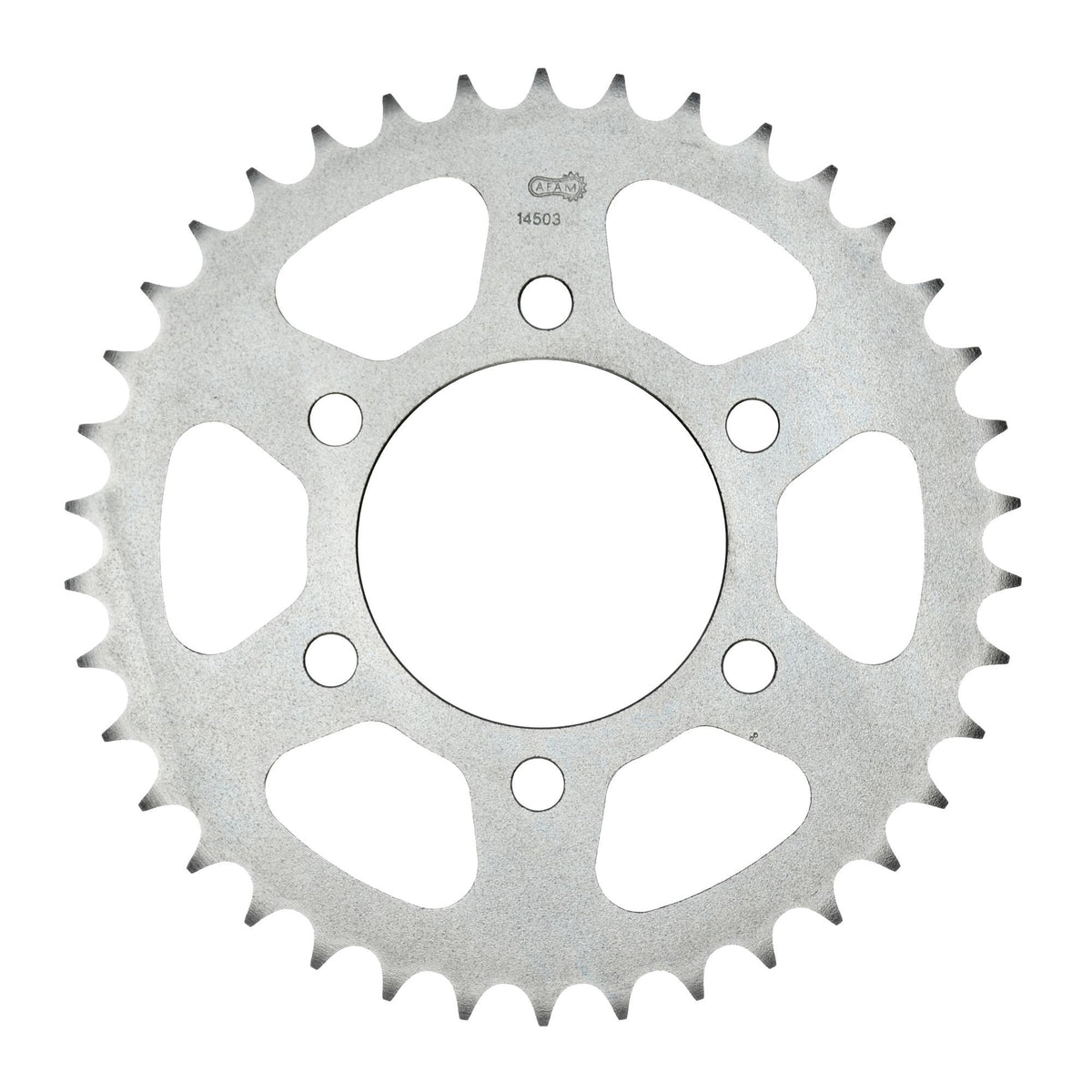

• Rear sprocket: AFAM steel rear sprocket #530 50 teeth - a14503.50
• Gear ratio front sprocket-chain-rear sprocket: 15-110-50

AFAM 530 XMR3

Reinforced chain with low-friction properties
Xs-ring chain
Color: Steel
Application by displacement: up to 800 cc / road

Technical data:
Pitch: 530
Pin length: 25.50 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 2.08 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-50837

Suitable for

Suzuki 501 - 750 cc GS 550 E GS550 1978
Suzuki 501 - 750 cc GS 550 E GS550 1979
