AFAM chain kit for Suzuki GS 550 Katana M 81-83 530 XHR2G chain kit

AFAM Chain Kit for Suzuki GS 550 Katana M 81-83 530 XHR2G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit for Suzuki GS 550 Katana M GS550M 1981-1983

• Sprocket: AFAM sprocket #530 15 teeth - a28400.15
• Chain: AFAM chain 530 XHR2-G Xs-ring 112 with rivet link - a530xhr2.g.112

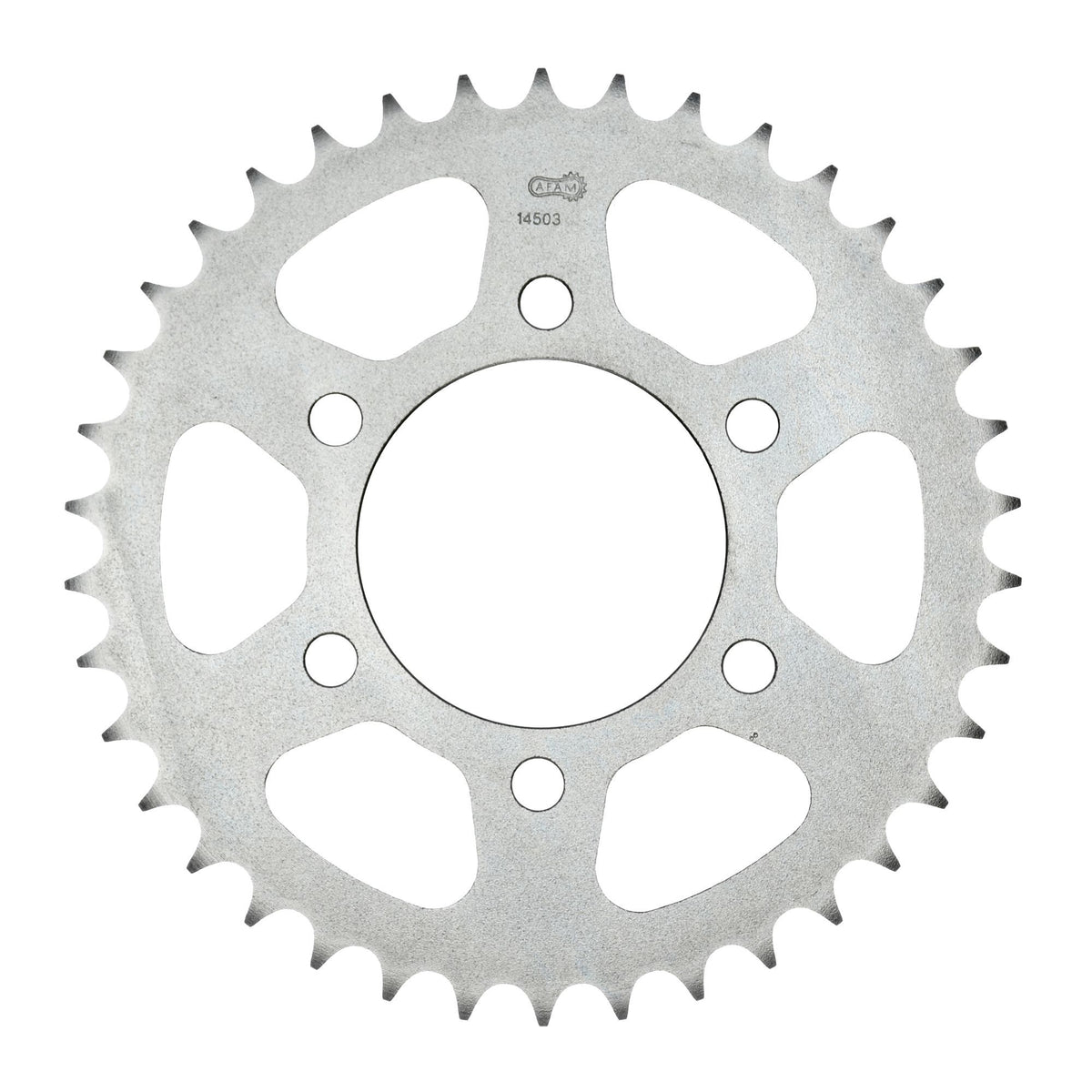

• Rear sprocket: AFAM STEEL rear sprocket #530 50 teeth - a14503.50
• Gear ratio sprocket-chain-rear sprocket: 15-112-50

AFAM 530 XHR2-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1400 cc / street and sport

Technical data:
Pitch: 530
Pin length: 24.70 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.16 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer and was not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-52077

Fits the following

Suzuki 501 - 750 cc GS 550 Katana M GS550M 1981
Suzuki 501 - 750 cc GS 550 Katana M GS550M 1982
Suzuki 501 - 750 cc GS 550 Katana M GS550M 1983
