AFAM chain kit for Suzuki GS 550 Katana M 81-83 530 XSR2G chain kit

AFAM Chain Kit for Suzuki GS 550 Katana M 81-83 530 XSR2G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - Manufacturer names are used for compatibility identification purposes only!

Components of the chain kit Suzuki GS 550 Katana M GS550M 1981-1983

• Front sprocket: AFAM front sprocket #530 15 teeth - a28400.15
• Chain: AFAM chain 530 XSR2-G Xs-ring 112 with rivet link - a530xsr2.g.112

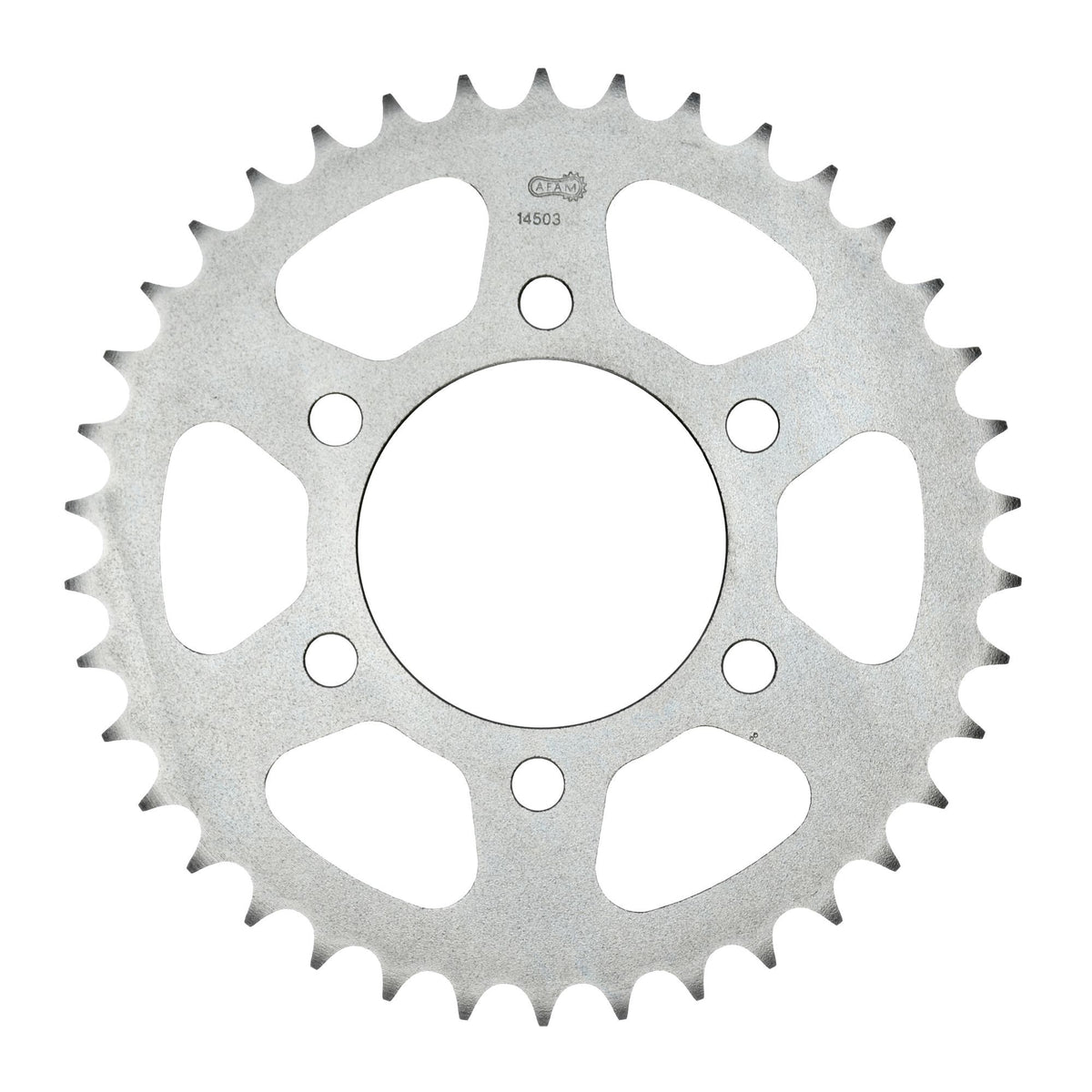

• Rear sprocket: AFAM STEEL rear sprocket #530 50 teeth - a14503.50
• Transmission ratio front sprocket-chain-rear sprocket: 15-112-50

AFAM 530 XSR2-G

Super reinforced chain with smooth running properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1100 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.40 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 2.05 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves solely to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-50851

Suitable for

Suzuki 501 - 750 cc GS 550 Katana M GS550M 1981
Suzuki 501 - 750 cc GS 550 Katana M GS550M 1982
Suzuki 501 - 750 cc GS 550 Katana M GS550M 1983
