AFAM chain kit for Suzuki GS 550 T 1981 530 XHR2G chain kit

AFAM chain kit for Suzuki GS 550 T 1981 530 XHR2G chain kit

Chain kit or chain set for the assigned model according to the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are only for compatibility representation!

Components of the chain kit Suzuki GS 550 T GS550E 1981-1981

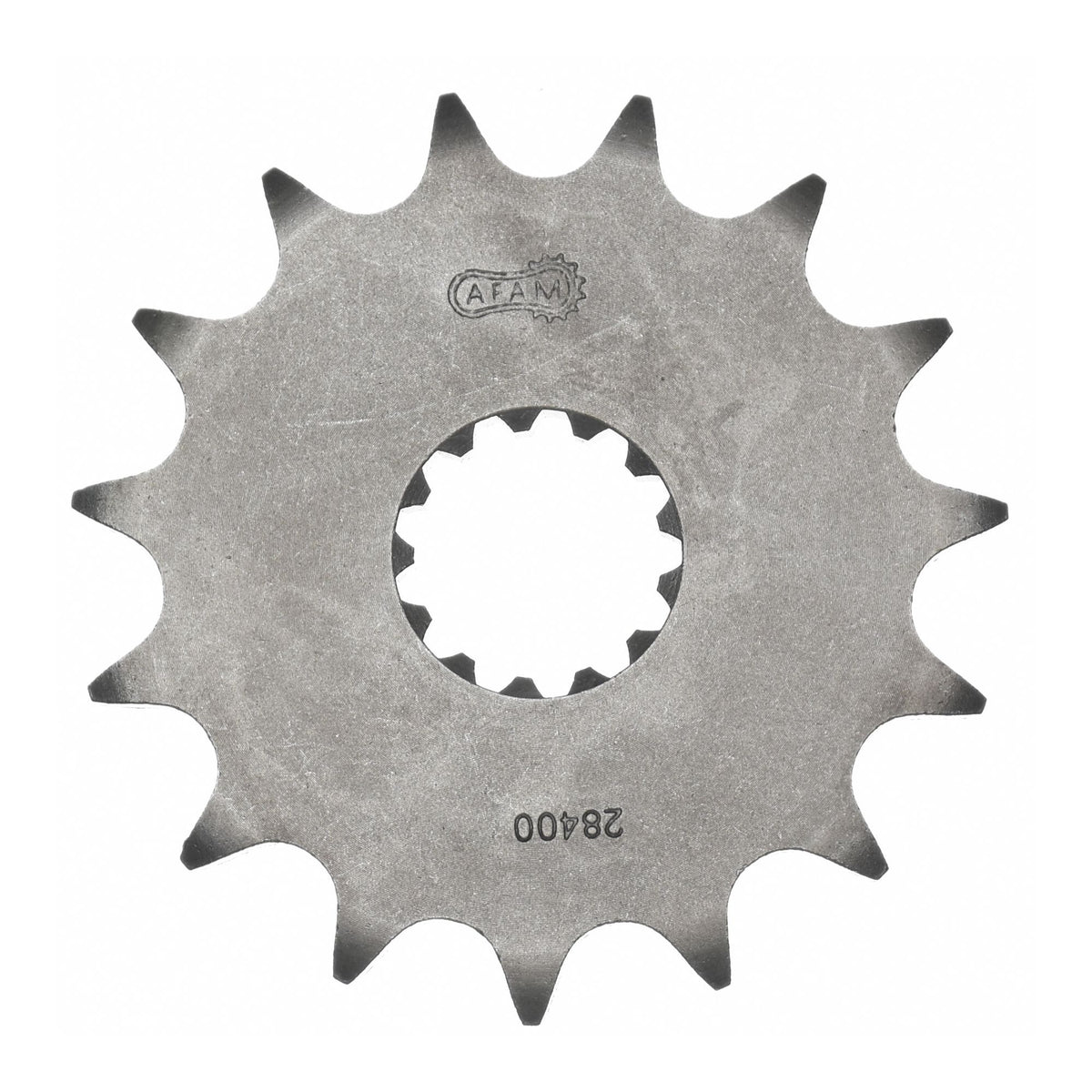

• Sprocket: AFAM sprocket #530 15 teeth - a28400.15
• Chain: AFAM chain 530 XHR2-G Xs-ring 110 w. rivet link - a530xhr2.g.110

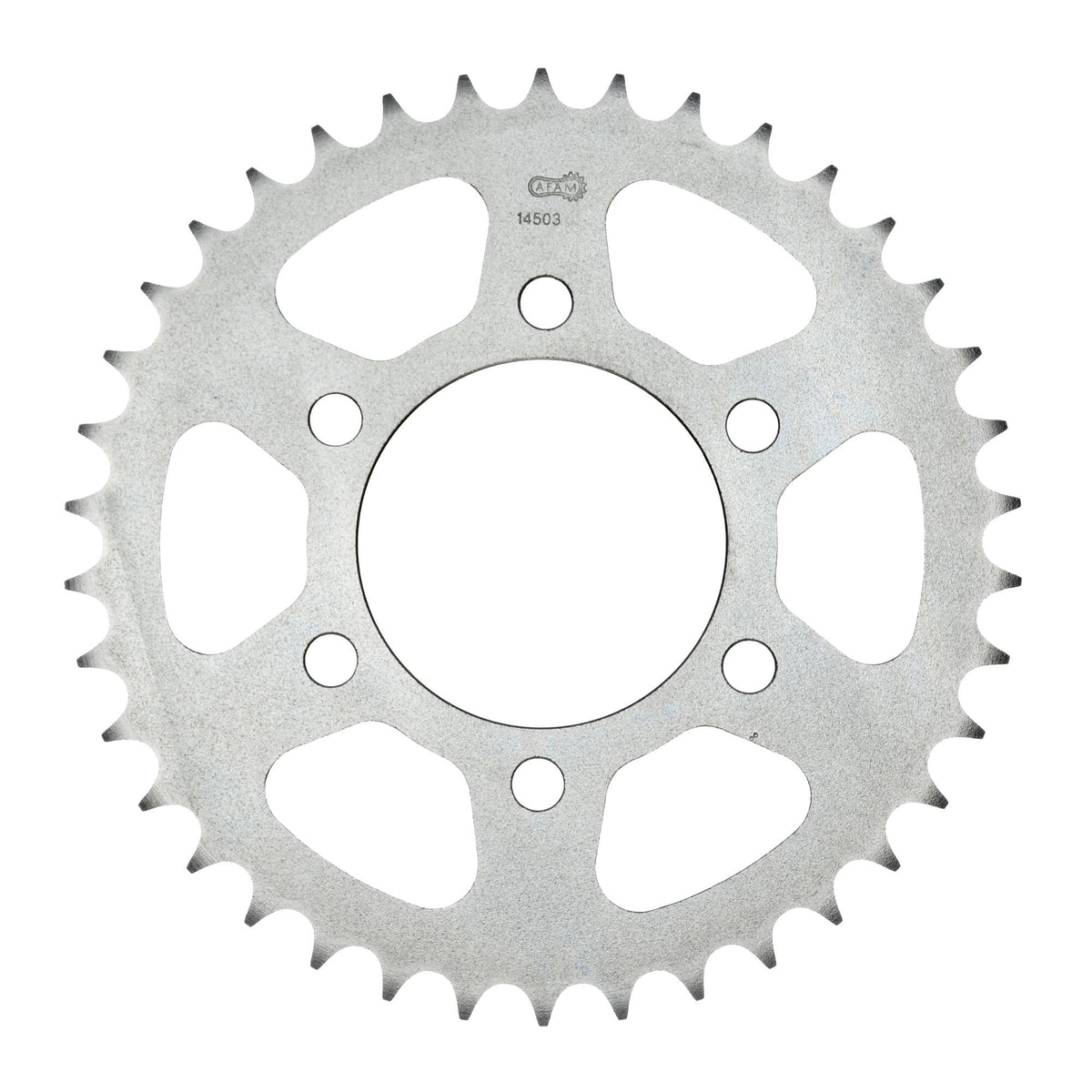

• Rear sprocket: AFAM rear sprocket STEEL #530 50 teeth - a14503.50
• Gear ratio sprocket-chain-rear sprocket: 15-110-50

AFAM 530 XHR2-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1400 cc / street and sport

Technical data:
Pitch: 530
Pin length: 24.70 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.16 kg

Unless otherwise stated: The offered goods are accessories/spare parts from a third-party manufacturer, not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively for the determination of compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-52081

Fits

Suzuki 501 - 750 cc GS 550 T GS550E 1981
