AFAM chain kit for Suzuki GSF 1200 Bandit 96-00 530 XSR2G chain kit

AFAM chain kit for Suzuki GSF 1200 Bandit 96-00 530 XSR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the Suzuki GSF 1200 Bandit GV75A 1996-2000 chain kit

• Front sprocket: AFAM sprocket #530 15 teeth - a28400.15
• Chain: AFAM chain 530 XSR2-G Xs-ring 110 w. rivet link - a530xsr2.g.110

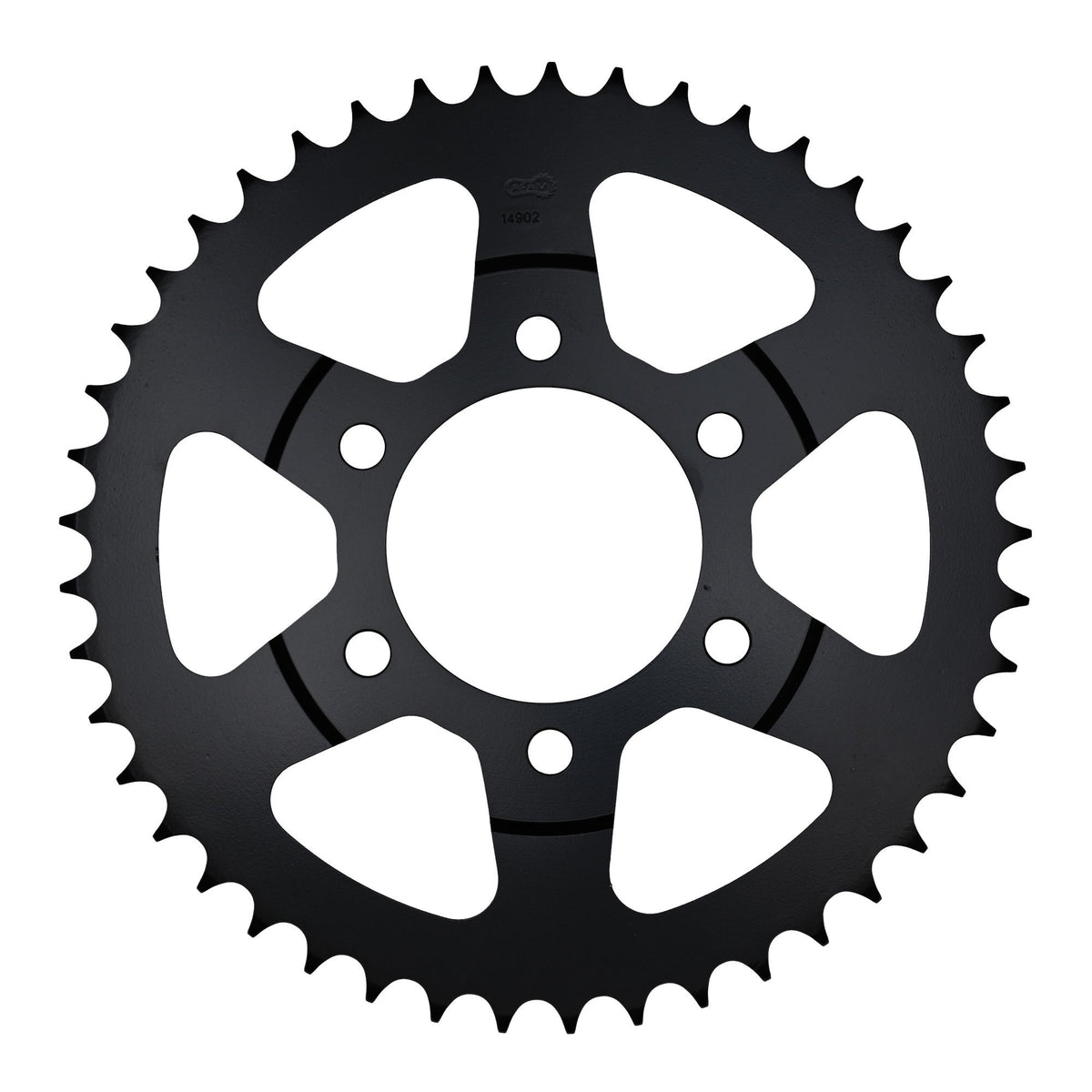

• Rear sprocket: AFAM STEEL sprocket #530 45 teeth - a14902.45
• Transmission ratio front sprocket-chain-rear sprocket: 15-110-45

AFAM 530 XSR2-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1100 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.40 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 2.05 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer and was not produced on behalf of or with the approval of the motorcycle manufacturer. Mentioning the brand is exclusively for determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-50407

Fits

Suzuki over 1001 cc GSF 1200 Bandit GV75A 1996
Suzuki over 1001 cc GSF 1200 Bandit GV75A 1997
Suzuki over 1001 cc GSF 1200 Bandit GV75A 1998
Suzuki over 1001 cc GSF 1200 Bandit GV75A 1999
Suzuki over 1001 cc GSF 1200 Bandit GV75A 2000
