AFAM chain kit for Suzuki GSF 1200 Bandit SA ABS 97-00 530 XHR2G chain kit

AFAM chain kit for Suzuki GSF 1200 Bandit SA ABS 97-00 530 XHR2G chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Suzuki GSF 1200 Bandit SA ABS GV75A 1997-2000

• Front sprocket: AFAM front sprocket #530 15 teeth - a28400.15
• Chain: AFAM chain 530 XHR2-G Xs-ring 114 links with rivet link - a530xhr2.g.114

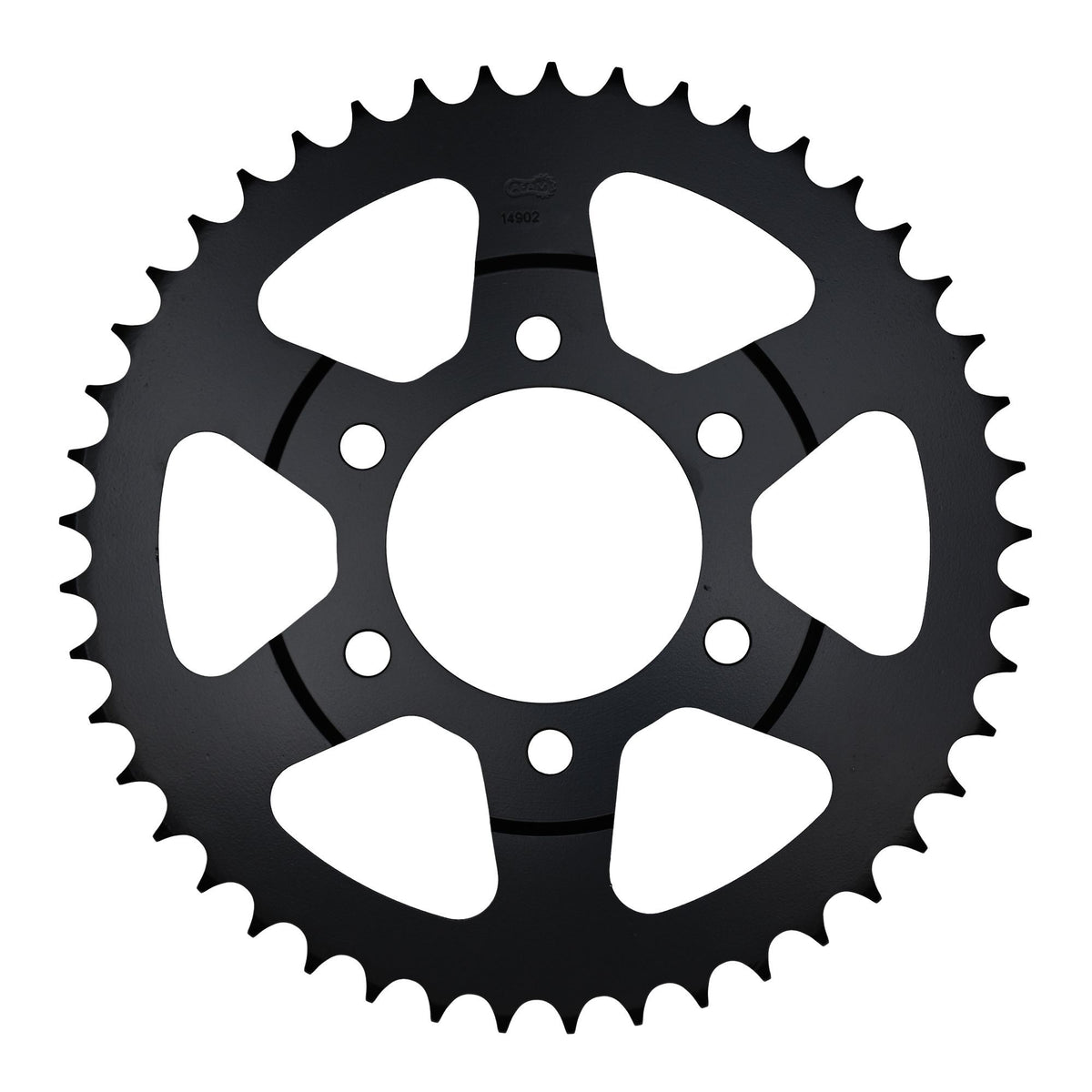

• Rear sprocket: AFAM STEEL rear sprocket #530 45 teeth - a14902.45
• Gear ratio front sprocket-chain-rear sprocket: 15-114-45

AFAM 530 XHR2-G

Hyper reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1400 cc / street and sport

Technical data:
Pitch: 530
Pin length: 24.70 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.16 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-16136

Suitable for

Suzuki over 1001 cc GSF 1200 Bandit SA ABS GV75A 1997
Suzuki over 1001 cc GSF 1200 Bandit SA ABS GV75A 1998
Suzuki over 1001 cc GSF 1200 Bandit SA ABS GV75A 1999
Suzuki over 1001 cc GSF 1200 Bandit SA ABS GV75A 2000
