AFAM chain kit for Suzuki GSF 600 Bandit S 96-99 530 XHR2G chain kit

AFAM chain kit for Suzuki GSF 600 Bandit S 96-99 530 XHR2G chain kit

Chain kit or chain set for the assigned model according to the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Suzuki GSF 600 Bandit S GN77B 1996-1999

• Sprocket: AFAM sprocket #530 15 teeth - a28400.15
• Chain: AFAM chain 530 XHR2-G Xs-Ring 110 w. rivet link - a530xhr2.g.110

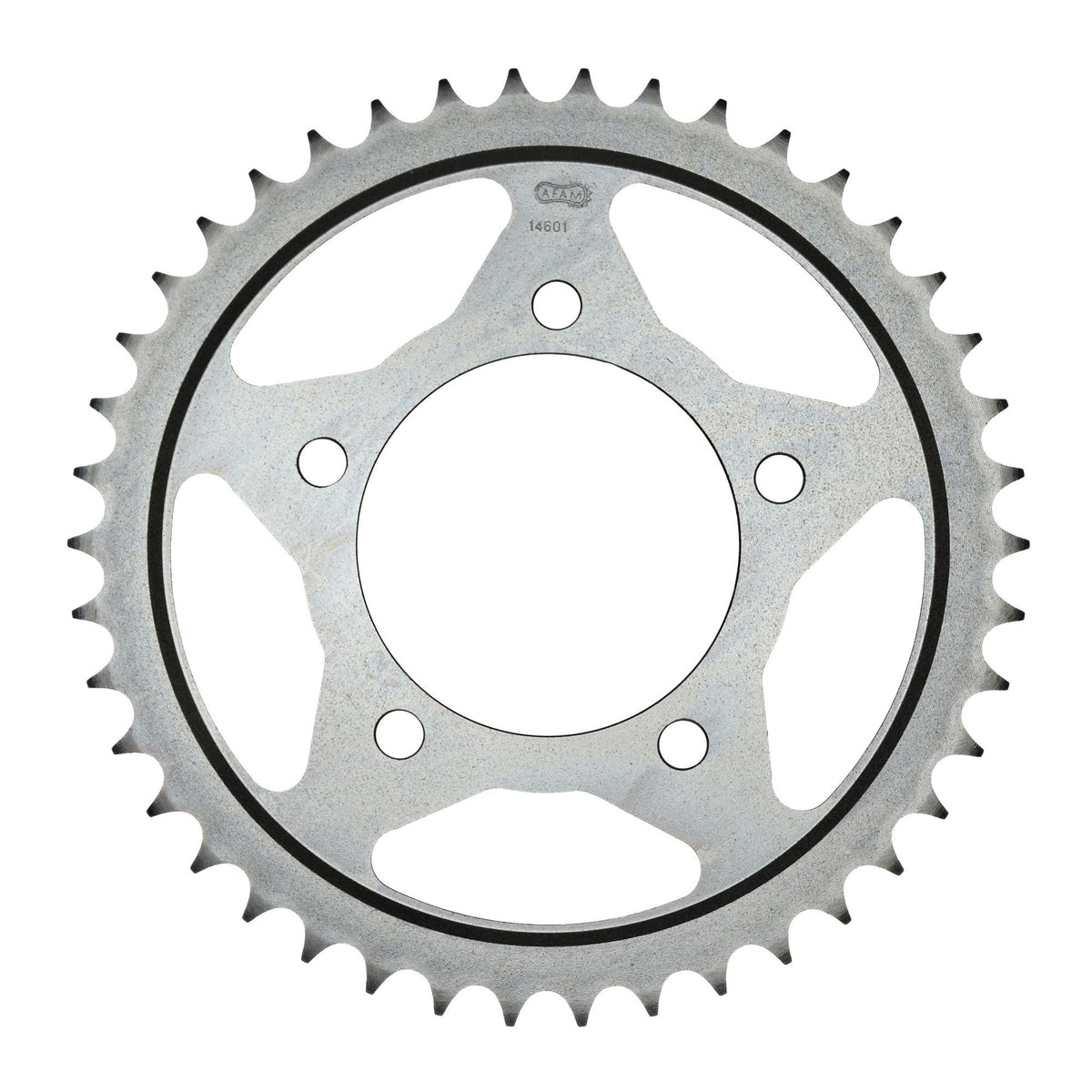

• Rear sprocket: AFAM rear sprocket STEEL #530 47 teeth - a14601.47
• Gear ratio sprocket-chain-rear sprocket: 15-110-47

AFAM 530 XHR2-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-Ring chain
Color: Gold
Application by displacement: up to 1400 cc / road and sport

Technical specifications:
Pitch: 530
Pin length: 24.70 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.16 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-52093

Suitable for

Suzuki 501 - 750 cc GSF 600 Bandit S GN77B 1996
Suzuki 501 - 750 cc GSF 600 Bandit S GN77B 1997
Suzuki 501 - 750 cc GSF 600 Bandit S GN77B 1998
Suzuki 501 - 750 cc GSF 600 Bandit S GN77B 1999
