AFAM chain kit for Suzuki GSF 650 Bandit A ABS 07-08 525 XHR3G chain kit

AFAM chain kit for Suzuki GSF 650 Bandit A ABS 07-08 525 XHR3G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

Components of the chain kit Suzuki GSF 650 Bandit A ABS WVCJ 2007-2008

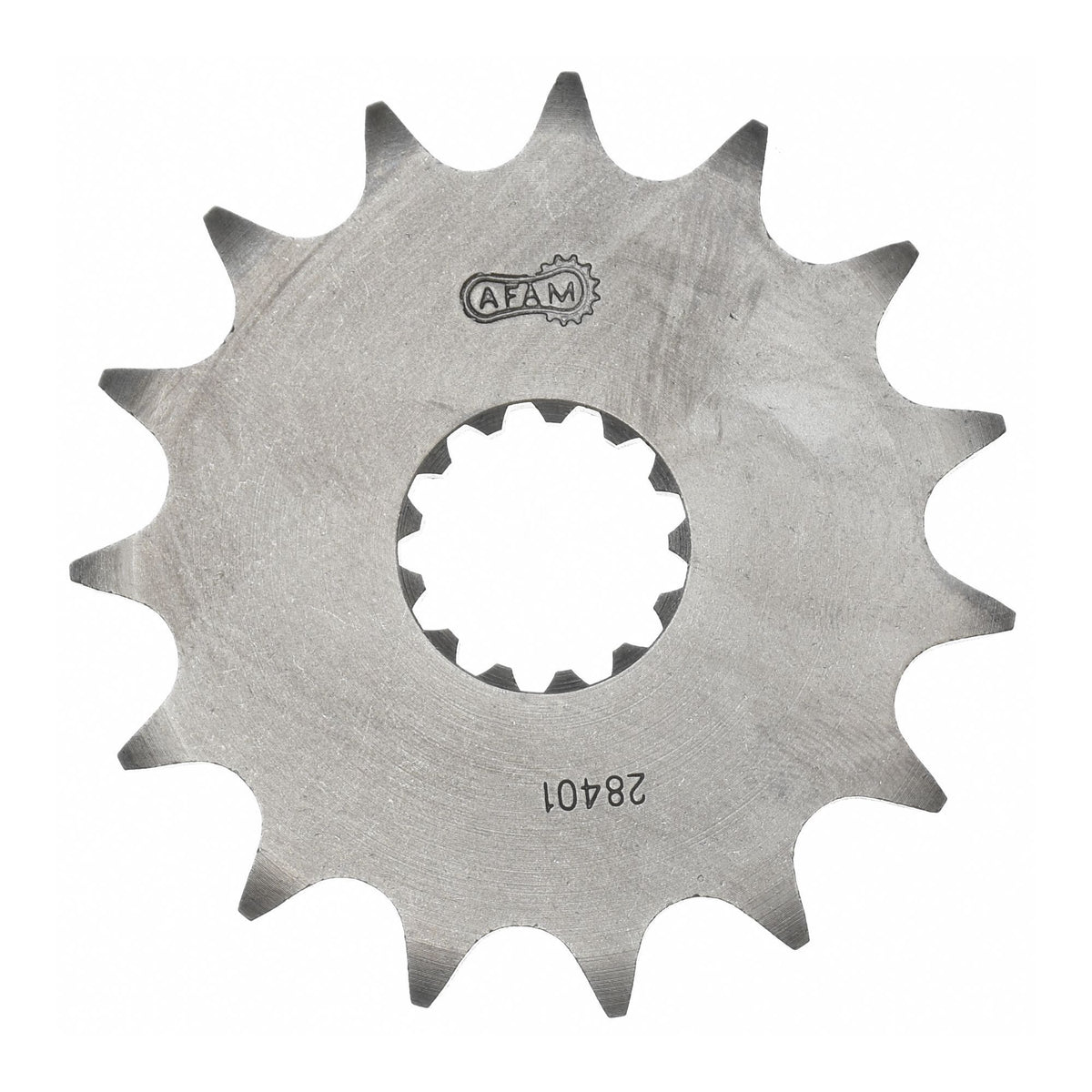

• Front sprocket: AFAM front sprocket #525 15 teeth - a28401.15
• Chain: AFAM chain 525 XHR3-G Xs-ring 118 with rivet link - a525xhr3.g.118

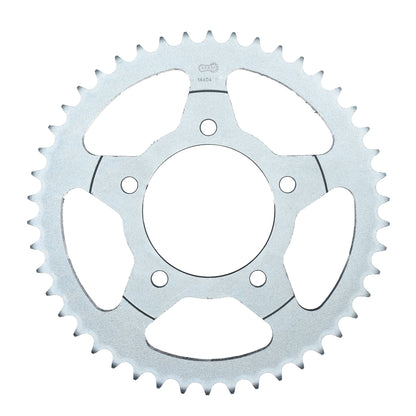

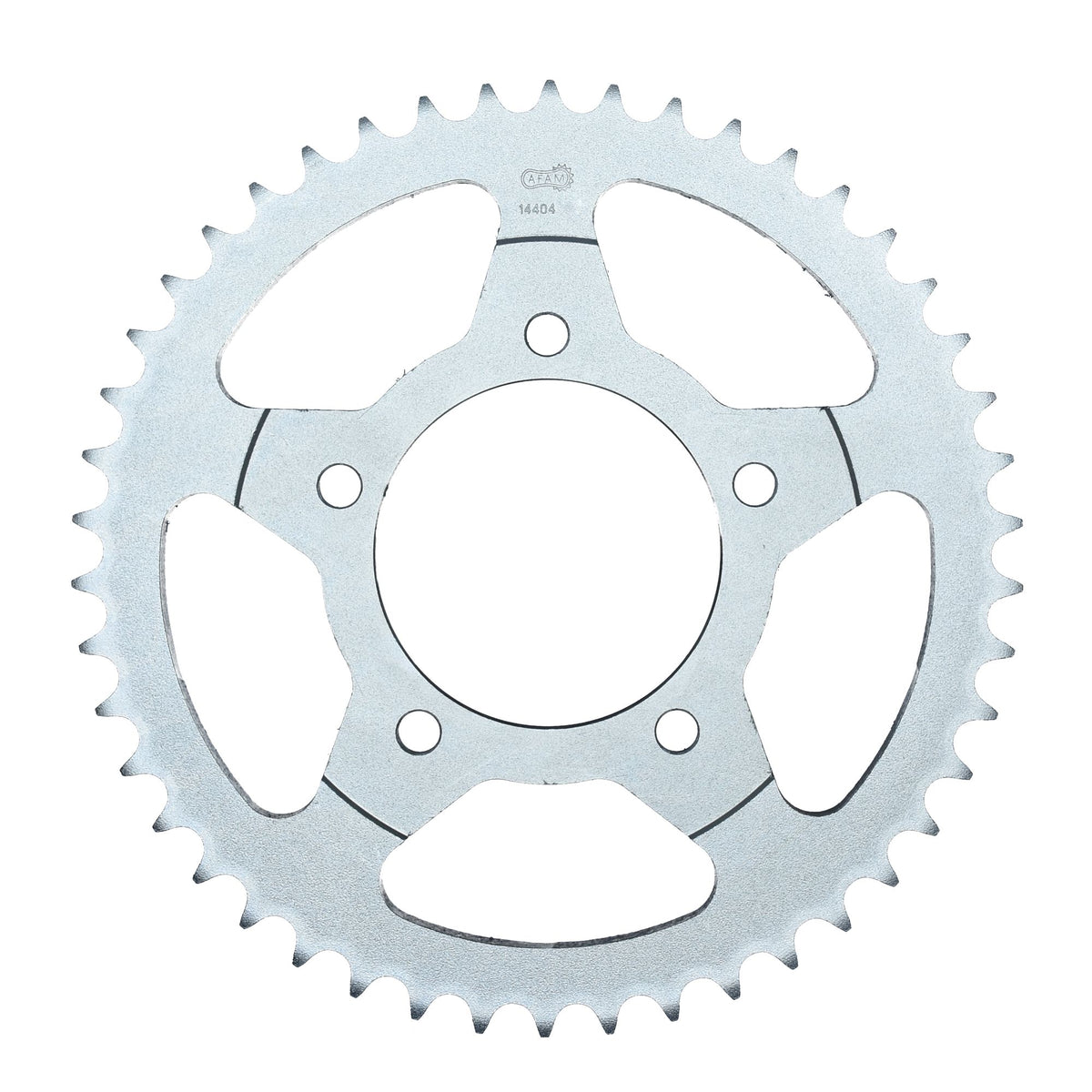

• Rear sprocket: AFAM STEEL rear sprocket #525 48 teeth - a14404.48
• Gear ratio sprocket-chain-rear sprocket: 15-118-48

AFAM 525 XHR3-G

Hyper reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / street and sport

Technical specifications:
Pitch: 525
Pin length: 23.10 mm
Roller Ø: 10.20 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.06 kg

Unless otherwise stated: The offered goods are accessories/spare parts from a third-party manufacturer and were not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mentioning the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-50944

Fits

Suzuki 501 - 750 cc GSF 650 Bandit A ABS WVCJ 2007
Suzuki 501 - 750 cc GSF 650 Bandit A ABS WVCJ 2008
