AFAM chain kit for Suzuki GSF 650 Bandit S 09-11 525 XHR3G chain kit

AFAM chain kit for Suzuki GSF 650 Bandit S 09-11 525 XHR3G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Suzuki GSF 650 Bandit S WVCZ 2009-2011

• Front sprocket: AFAM sprocket #525 15 teeth - a28401.15
• Chain: AFAM chain 525 XHR3-G Xs-ring 118 with rivet link - a525xhr3.g.118

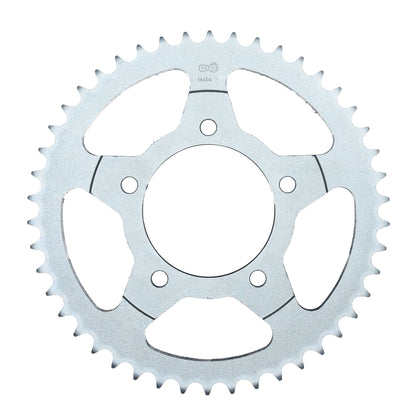

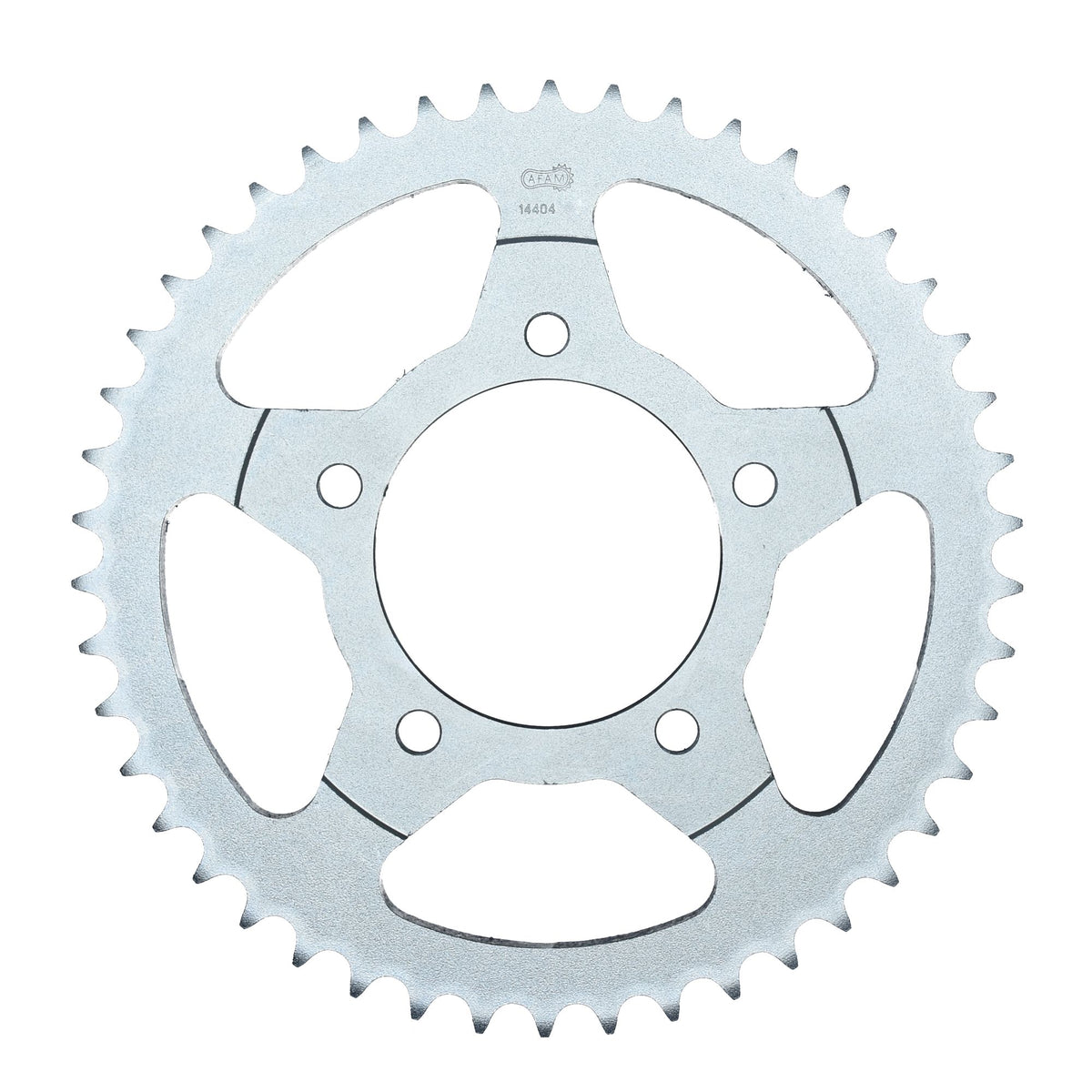

• Rear sprocket: AFAM STEEL sprocket #525 48 teeth - a14404.48
• Gear ratio sprocket-chain-rear sprocket: 15-118-48

AFAM 525 XHR3-G

Hyper-reinforced chain with smooth-running properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 525
Pin length: 23.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.06 kg

Unless otherwise stated: The offered goods are an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely for the purpose of identifying compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-50951

Suitable for

Suzuki 501 - 750 cc GSF 650 Bandit S WVCZ 2009
Suzuki 501 - 750 cc GSF 650 Bandit S WVCZ 2010
Suzuki 501 - 750 cc GSF 650 Bandit S WVCZ 2011
