AFAM chain kit for Suzuki GSR 600 06-10 525 XSR2G chain kit

AFAM chain kit for Suzuki GSR 600 06-10 525 XSR2G chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility representation only!

Components of the chain kit Suzuki GSR 600 WVB9 2006-2010

• Sprocket: AFAM sprocket #525 16 teeth - a28401.16
• Chain: AFAM chain 525 XSR2-G Xs-ring 114 w. rivet link - a525xsr2.g.114

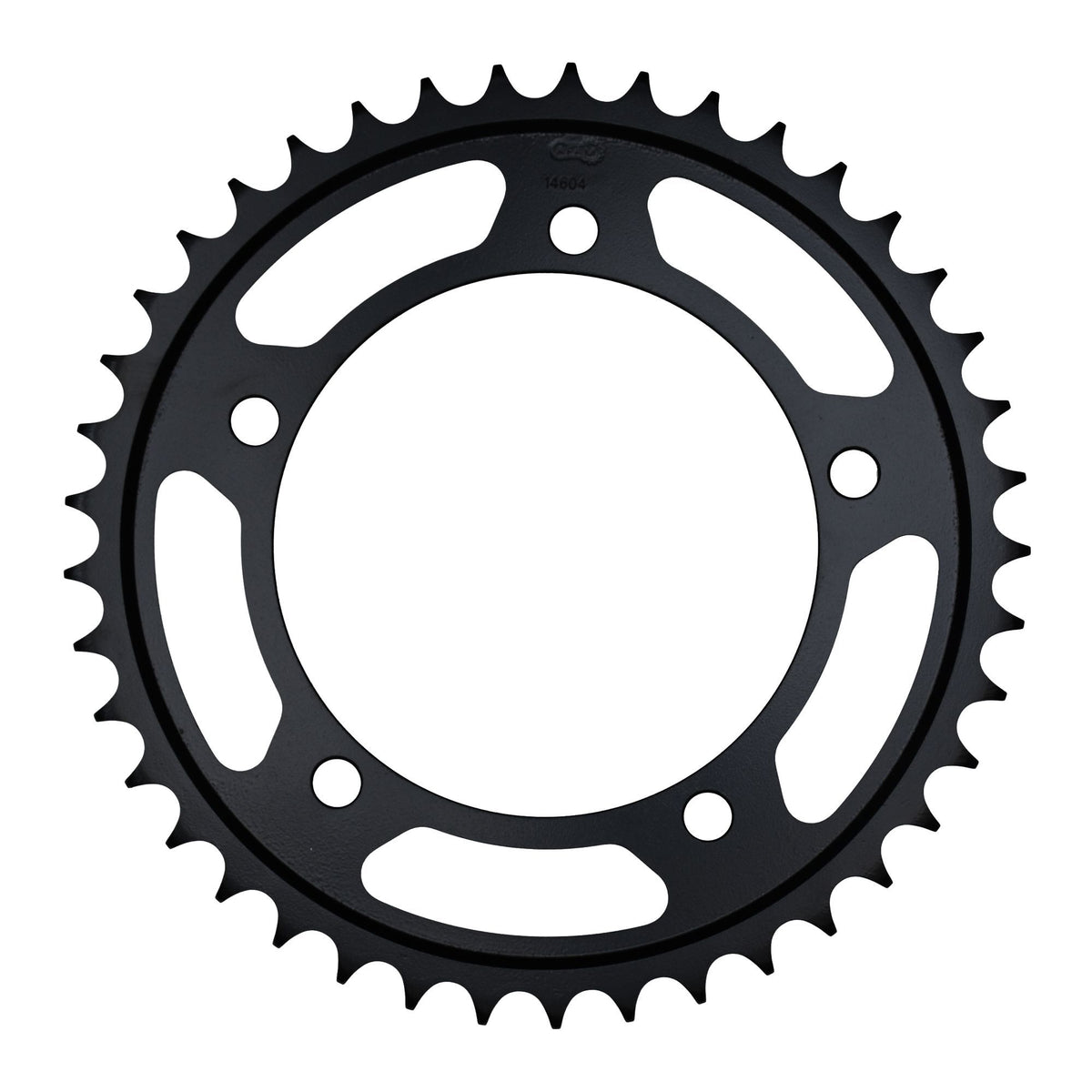

• Rear sprocket: AFAM STEEL rear sprocket #525 48 teeth - a14604.48
• Gear ratio sprocket-chain-rear sprocket: 16-114-48

AFAM 525 XSR2-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by engine displacement: up to 1000 cc / street and sport

Technical specifications:
Pitch: 525
Pin length: 22.75 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely for the purpose of identifying compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-52101

Suitable for

Suzuki 501 - 750 cc GSR 600 WVB9 2006
Suzuki 501 - 750 cc GSR 600 WVB9 2007
Suzuki 501 - 750 cc GSR 600 WVB9 2008
Suzuki 501 - 750 cc GSR 600 WVB9 2009
Suzuki 501 - 750 cc GSR 600 WVB9 2010
