AFAM chain kit for Suzuki GSR 750 11-12 525 XSR2G chain kit

AFAM Chain Kit for Suzuki GSR 750 11-12 525 XSR2G Chain Kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Suzuki GSR 750 C5 2011-2012

• Front sprocket: AFAM front sprocket #525 17 teeth - a28401.17
• Chain: AFAM chain 525 XSR2-G Xs-ring 112 with rivet link - a525xsr2.g.112

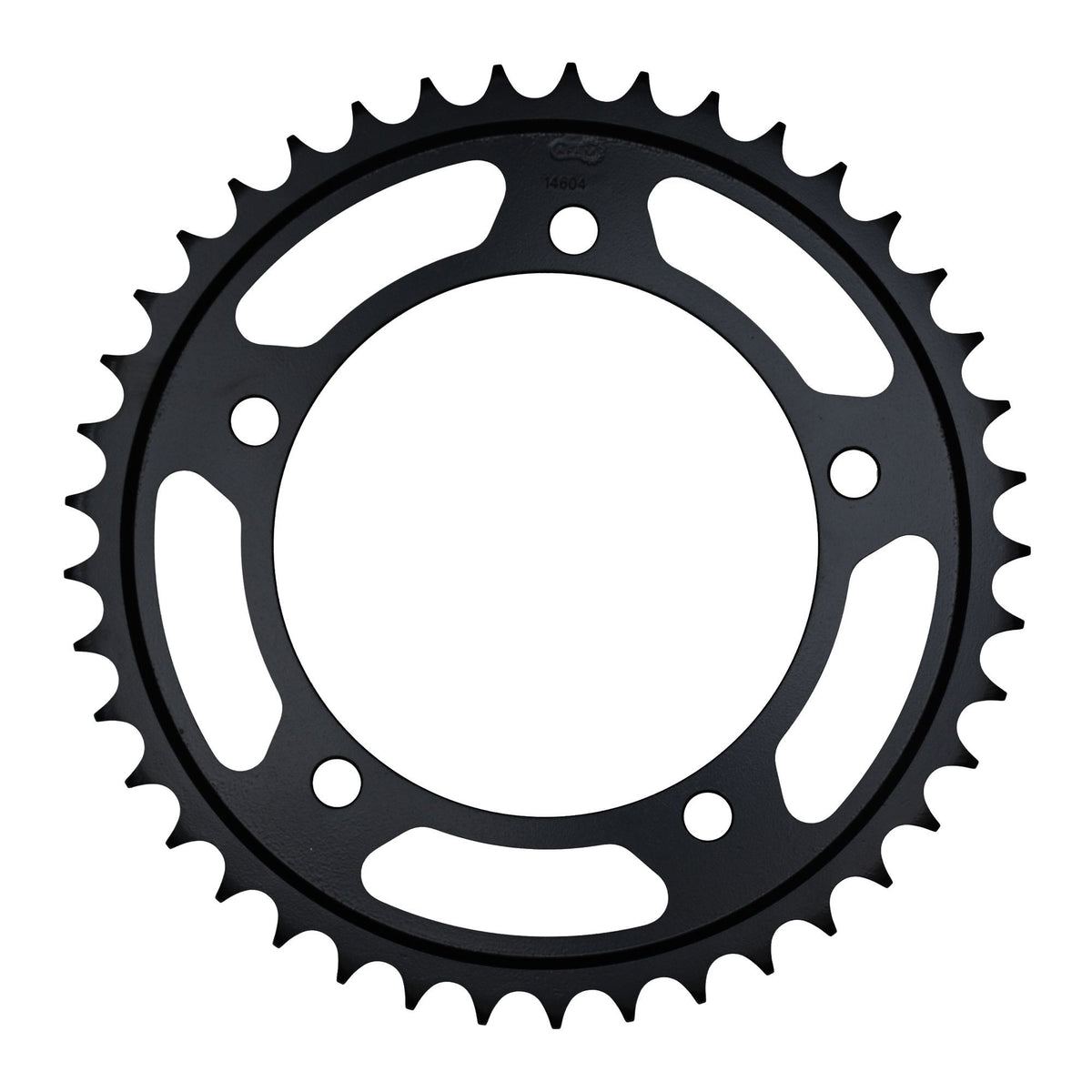

• Rear sprocket: AFAM rear sprocket STEEL #525 42 teeth - a14604.42
• Transmission ratio front sprocket-chain-rear sprocket: 17-112-42

AFAM 525 XSR2-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical specifications:
Pitch: 525
Pin length: 22.75 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered goods are an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-52427

Suitable for

Suzuki 501 - 750 cc GSR 750 C5 2011
Suzuki 501 - 750 cc GSR 750 C5 2012
