AFAM chain kit for Suzuki GSX 1100 F 1988 530 XSR2G chain kit

AFAM Chain Kit for Suzuki GSX 1100 F 1988 530 XSR2G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching master link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the chain kit Suzuki GSX 1100 F GV72A 1988-1988 Conversion #530

• Front sprocket: AFAM front sprocket #530 15 teeth - a28400.15
• Chain: AFAM chain 530 XSR2-G Xs-ring 118 with rivet link - a530xsr2.g.118

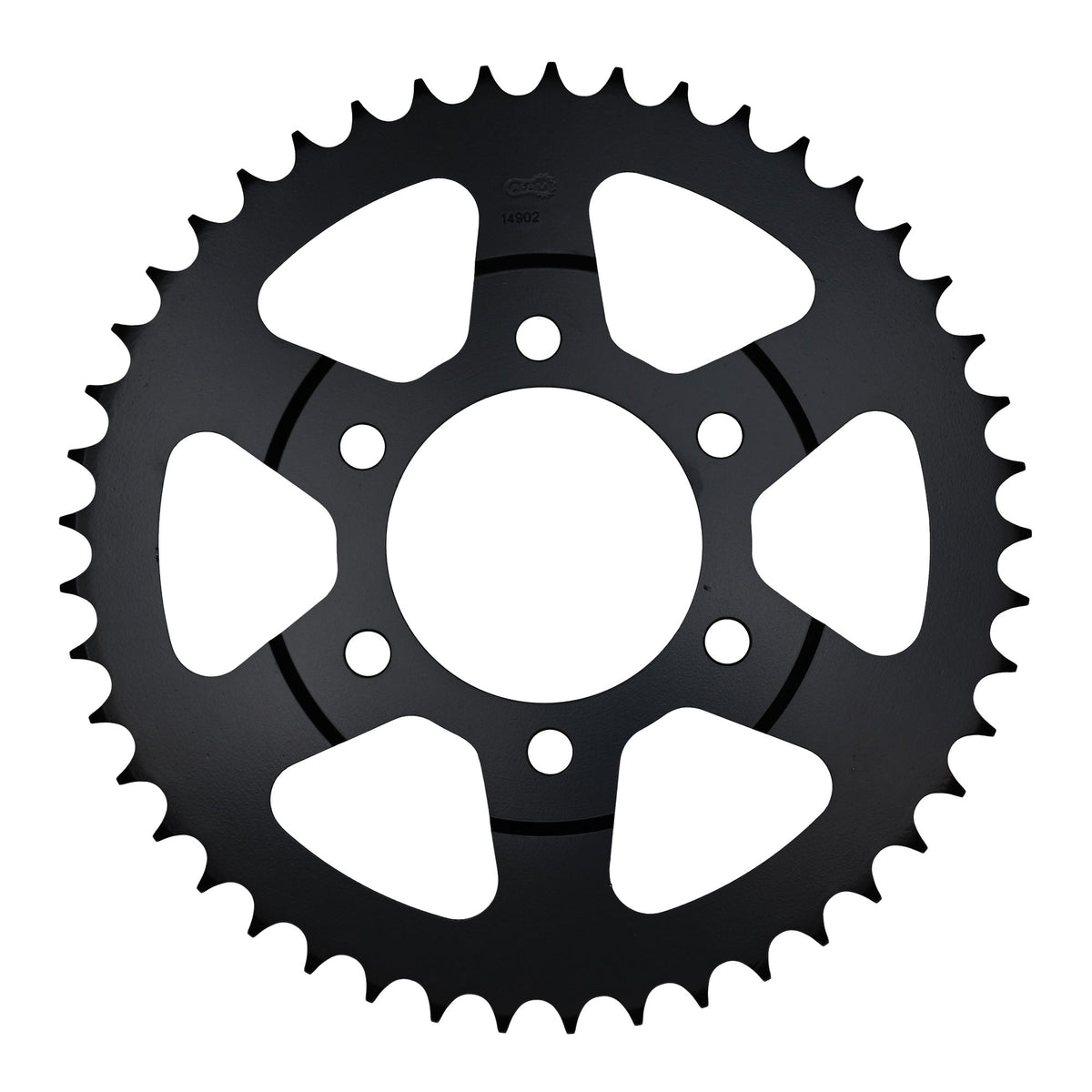

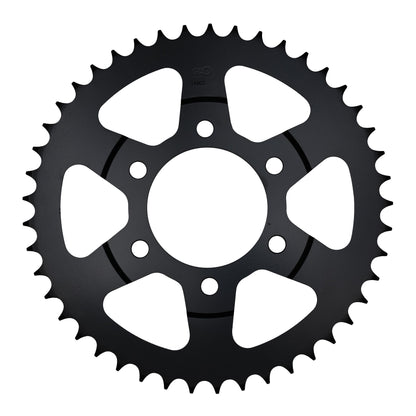

• Rear sprocket: AFAM rear sprocket STEEL #530 52 teeth - a14902.52
• Gear ratio front sprocket-chain-rear sprocket: 15-118-52 conversion #530

AFAM 530 XSR2-G

Super reinforced chain with smooth running properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1100 cc / road and sport

Technical specifications:
Pitch: 530
Pin length: 24.40 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 2.05 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-16112

Suitable for

Suzuki over 1001 cc GSX 1100 F GV72A 1988
