AFAM chain kit for Suzuki GSX 1300 RR Hayabusa ABS 2021 530 XHR2G chain kit

AFAM chain kit for Suzuki GSX 1300 RR Hayabusa ABS 2021 530 XHR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding chain connecting link.

Unless stated otherwise: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the Suzuki GSX 1300 RR Hayabusa ABS 2021-2021 chain kit

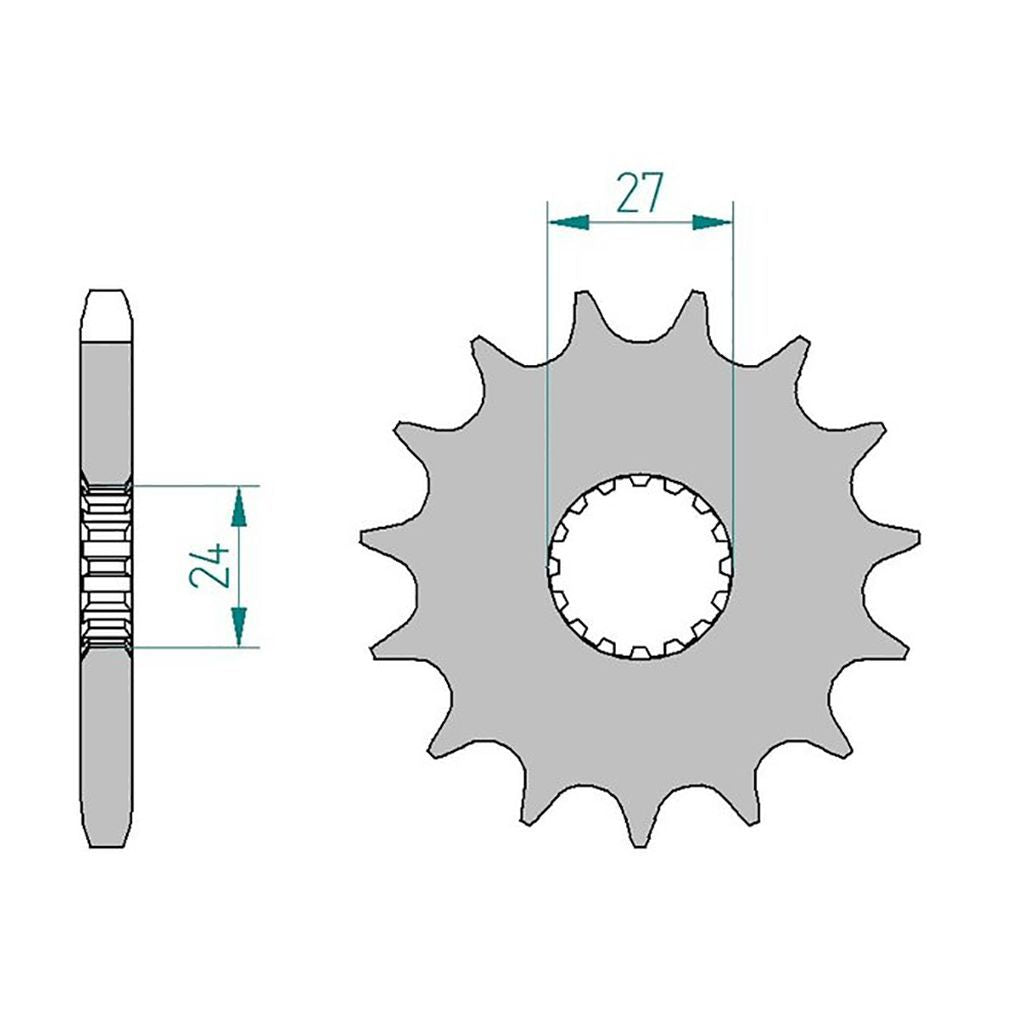

• Front sprocket: AFAM front sprocket #530 18 teeth - a22900.18
• Chain: AFAM chain 530 XHR2-G Xs-ring 114 with rivet link - a530xhr2.g.114

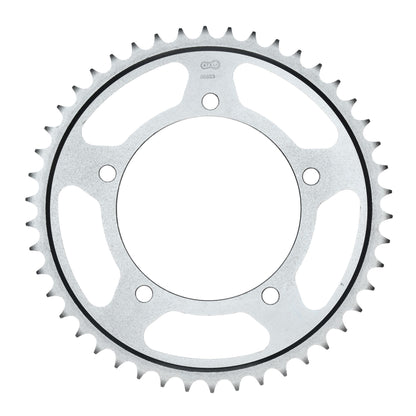

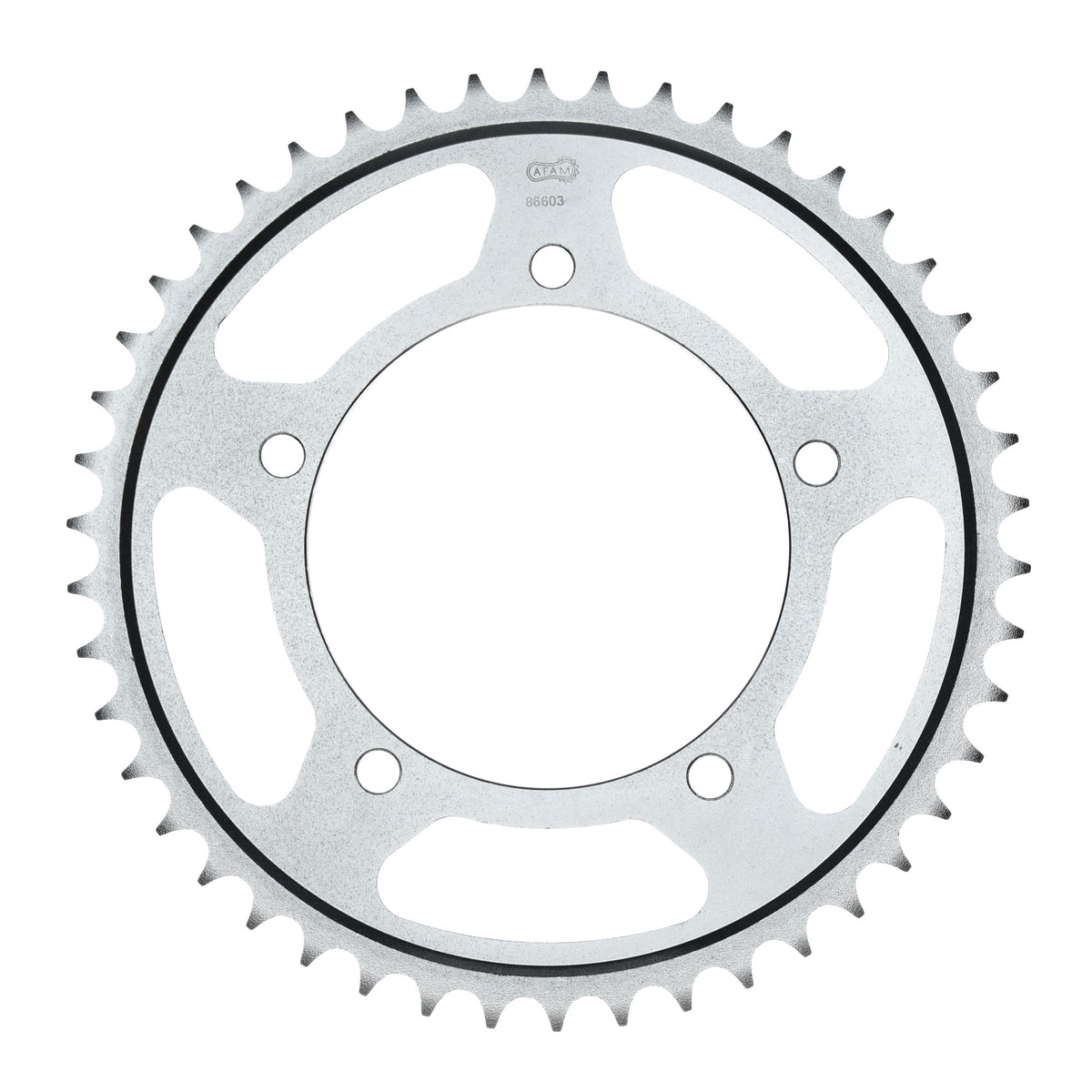

• Rear sprocket: AFAM rear sprocket STEEL #530 43 teeth - a86603.43
• Gear ratio front sprocket-chain-rear sprocket: 18-114-43

AFAM 530 XHR2-G

Hyper reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1400 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.70 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.16 kg

Unless stated otherwise: The product offered is a third-party accessory/spare part, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-73698

Suitable for

Suzuki over 1001 cc GSX 1300 RR Hayabusa ABS 2021
