AFAM chain kit for Suzuki GSX 650 F ABS 08-16 525 XHR3G chain kit

AFAM chain kit for Suzuki GSX 650 F ABS 08-16 525 XHR3G chain kit

Chain kit or chain set for the specified model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility identification only!

Components of the chain kit Suzuki GSX 650 F ABS WVCJ 2008-2016

• Sprocket: AFAM sprocket #525 15 teeth - a28401.15
• Chain: AFAM chain 525 XHR3-G Xs-ring 118 with rivet link - a525xhr3.g.118

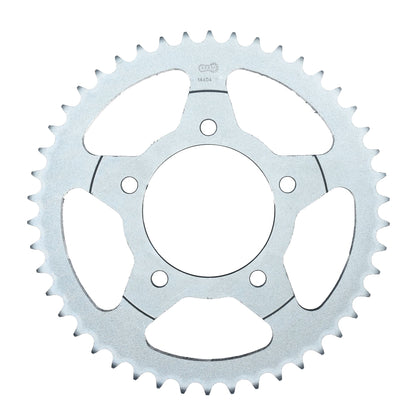

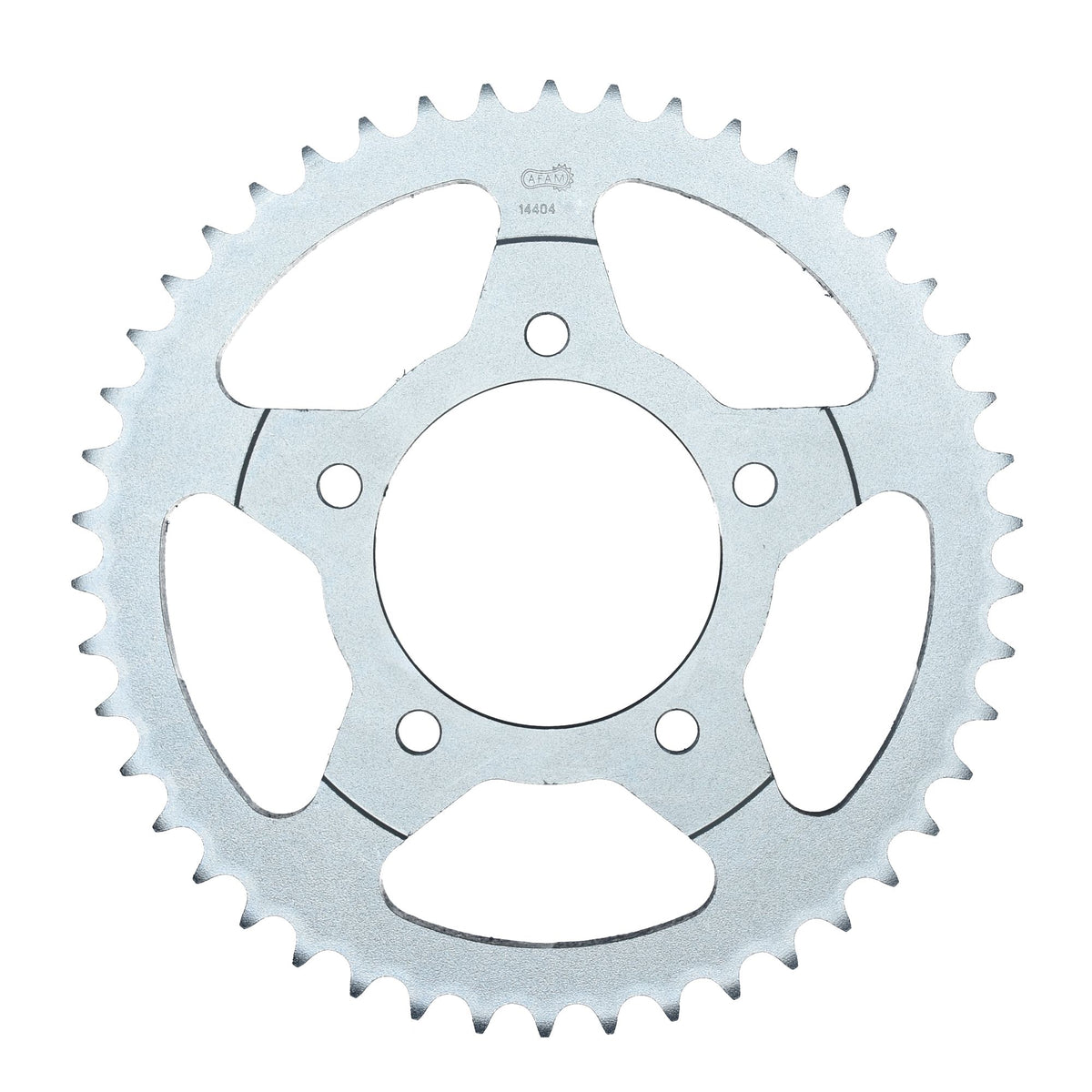

• Rear sprocket: AFAM rear sprocket STEEL #525 48 teeth - a14404.48
• Transmission ratio sprocket-chain-rear sprocket: 15-118-48

AFAM 525 XHR3-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / street and sport

Technical data:
Pitch: 525
Pin length: 23.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.06 kg

Unless otherwise stated: The offered goods are accessory/spare parts from a third-party manufacturer, not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves solely to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-52331

Fits

Suzuki 501 - 750 cc GSX 650 F ABS WVCJ 2008
Suzuki 501 - 750 cc GSX 650 F ABS WVCJ 2009
Suzuki 501 - 750 cc GSX 650 F ABS WVCJ 2010
Suzuki 501 - 750 cc GSX 650 F ABS WVCJ 2011
Suzuki 501 - 750 cc GSX 650 F ABS WVCJ 2012
Suzuki 501 - 750 cc GSX 650 F ABS WVCJ 2013
Suzuki 501 - 750 cc GSX 650 F ABS WVCJ 2014
Suzuki 501 - 750 cc GSX 650 F ABS WVCJ 2015
Suzuki 501 - 750 cc GSX 650 F ABS WVCJ 2016
