AFAM chain kit for Suzuki GSX 750 F 03-06 530 XHR2G chain kit

AFAM chain kit for Suzuki GSX 750 F 03-06 530 XHR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are only mentioned for the purpose of demonstrating compatibility!

Components of the chain kit Suzuki GSX 750 F AK 2003-2006

• Sprocket: AFAM sprocket #530 15 teeth - a28400.15
• Chain: AFAM chain 530 XHR2-G Xs-Ring 116 with rivet link - a530xhr2.g.116

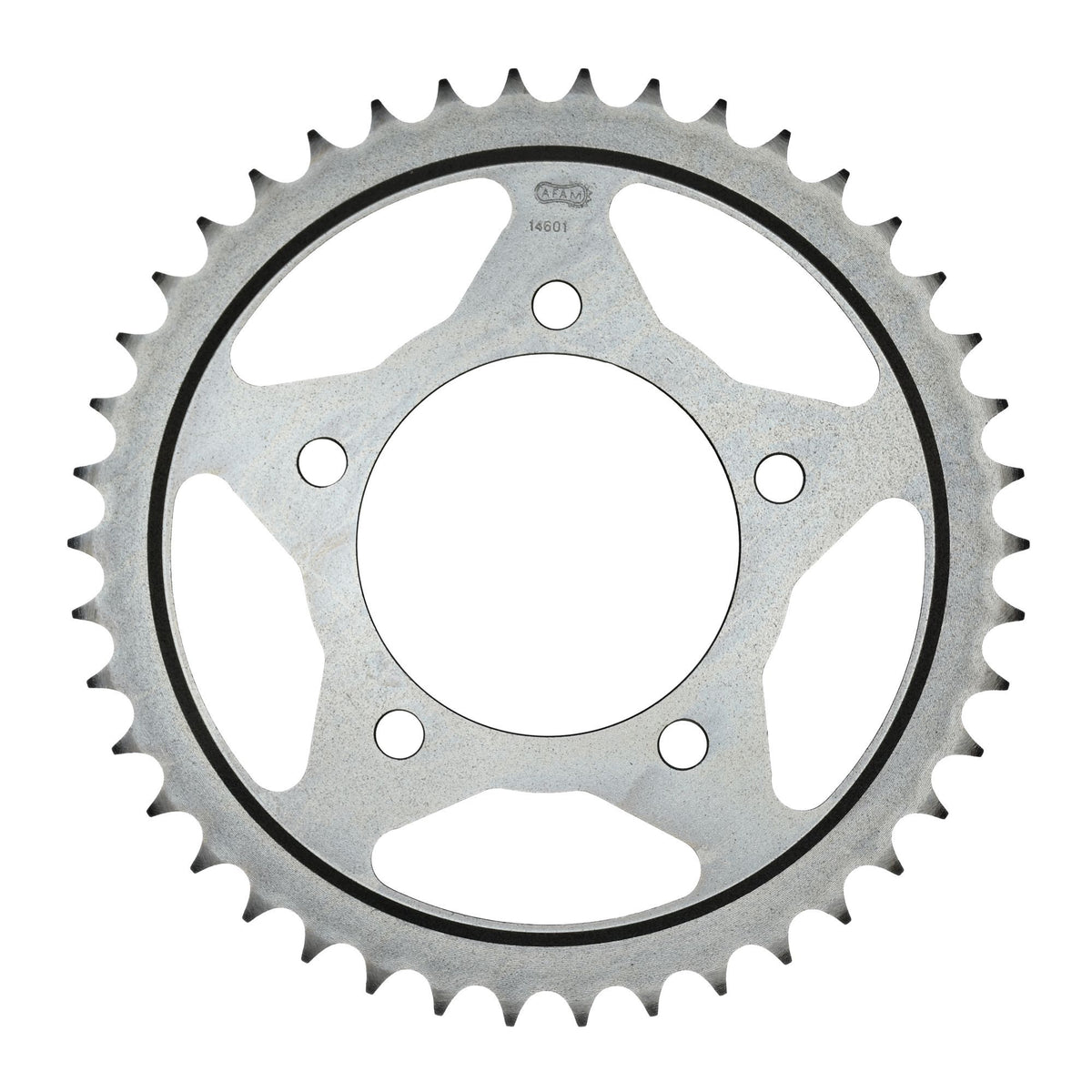

• Rear sprocket: AFAM rear sprocket STEEL #530 45 teeth - a14601.45
• Gear ratio sprocket-chain-rear sprocket: 15-116-45

AFAM 530 XHR2-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-Ring chain
Colour: Gold
Application by displacement: up to 1400 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.70 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.16 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is exclusively for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-52434

Suitable for

Suzuki 501 - 750 cc GSX 750 F AK 2003
Suzuki 501 - 750 cc GSX 750 F AK 2004
Suzuki 501 - 750 cc GSX 750 F AK 2005
Suzuki 501 - 750 cc GSX 750 F AK 2006
