AFAM chain kit for Suzuki GSX 750 F 98-02 530 XSR2G chain kit

AFAM chain kit for Suzuki GSX 750 F 98-02 530 XSR2G chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Suzuki GSX 750 F AK 1998-2002

• Sprocket: AFAM sprocket #530 15 teeth - a28400.15
• Chain: AFAM chain 530 XSR2-G Xs-ring 116 with rivet link - a530xsr2.g.116

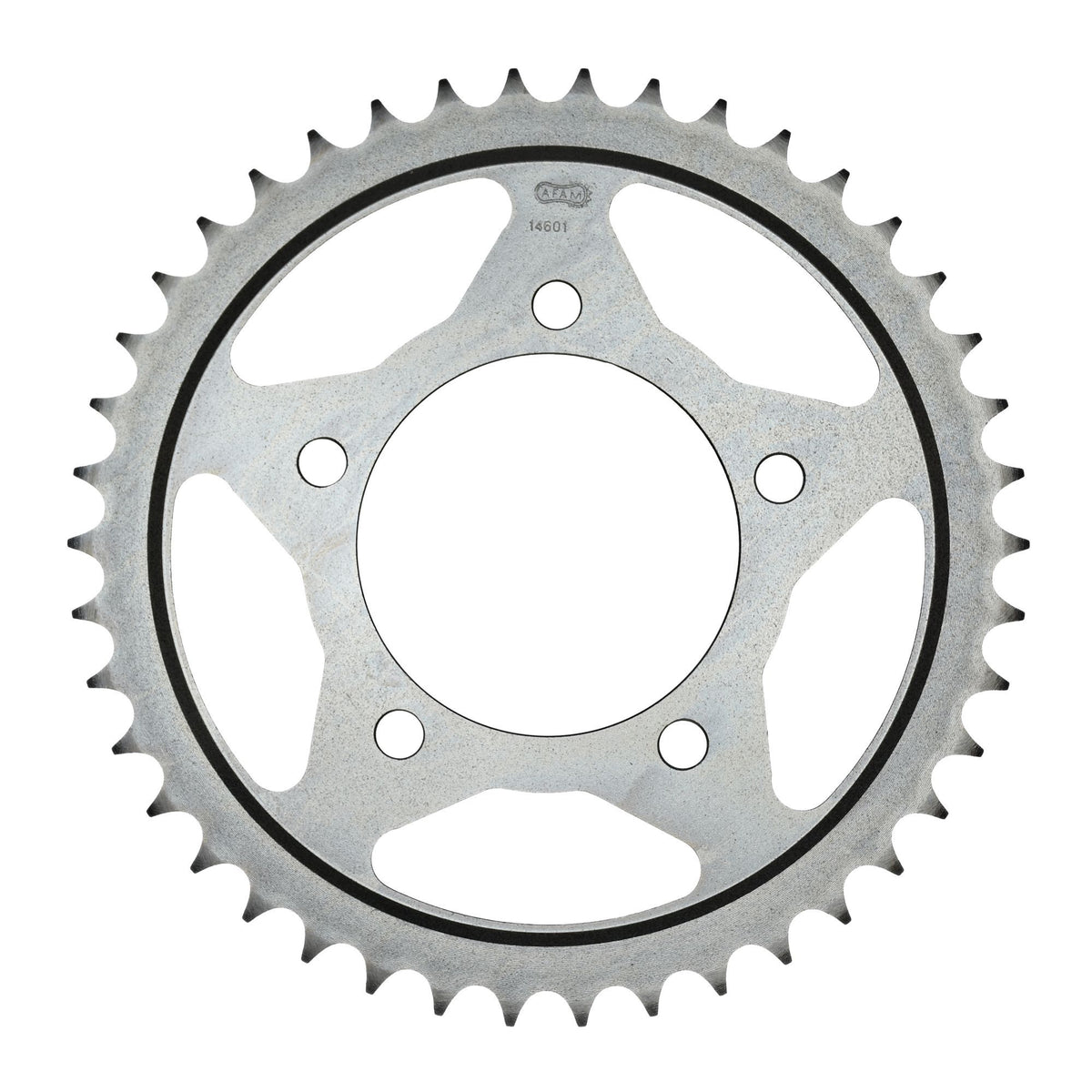

• Rear sprocket: AFAM STEEL sprocket #530 45 teeth - a14601.45
• Gear ratio sprocket-chain-rear sprocket: 15-116-45

AFAM 530 XSR2-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1100 cc / street and sport

Technical data:
Pitch: 530
Pin length: 24.40 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 2.05 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-51014

Suitable for

Suzuki 501 - 750 cc GSX 750 F AK 1998
Suzuki 501 - 750 cc GSX 750 F AK 1999
Suzuki 501 - 750 cc GSX 750 F AK 2000
Suzuki 501 - 750 cc GSX 750 F AK 2001
Suzuki 501 - 750 cc GSX 750 F AK 2002
