AFAM chain kit for Suzuki GSX-R 1000 R ABS 17-21 520 XHR2G chain kit

AFAM chain kit for Suzuki GSX-R 1000 R ABS 17-21 520 XHR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Suzuki GSX-R 1000 R ABS DM11 2017-2021 conversion #520

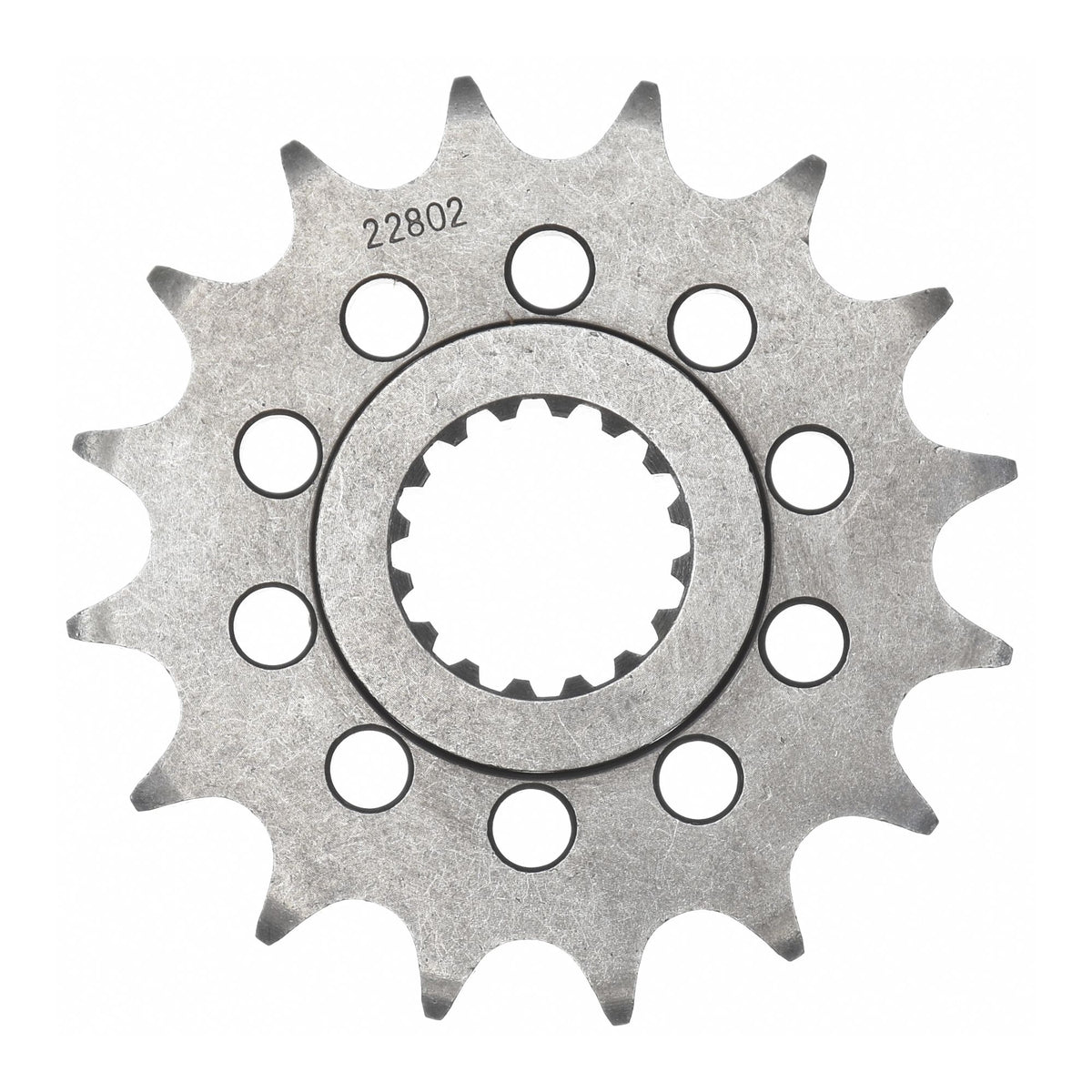

• Front sprocket: AFAM front sprocket #520 17 teeth - a22802.17
• Chain: AFAM chain 520 XHR2-G Xs-Ring 120 with rivet link - a520xhr2.g.120

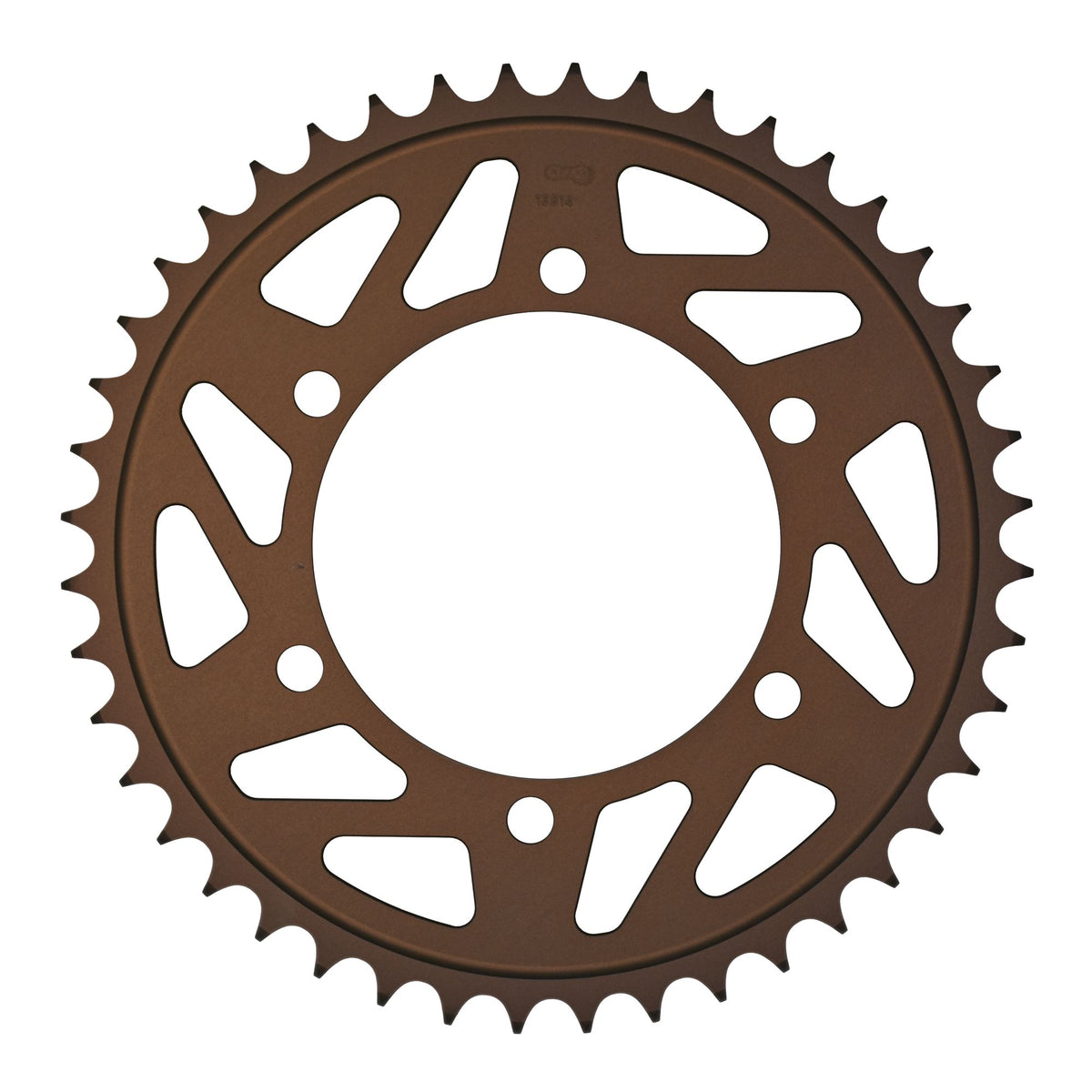

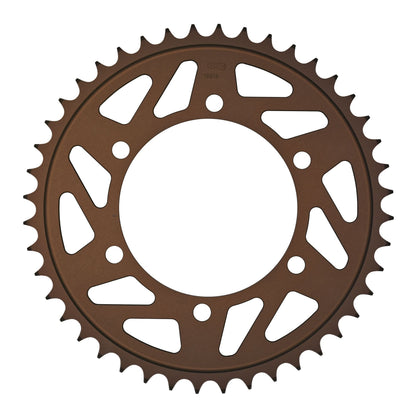

• Rear sprocket: AFAM rear sprocket ALU #520 45 teeth - a13814.45
• Gear ratio front sprocket-chain-rear sprocket: 17-120-45 conversion #520

AFAM 520 XHR2-G

Hyper reinforced chain with low-friction properties. The "all-rounder"!
Xs-Ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 520
Pin length: 20.80 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.85 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-15939

Suitable for

Suzuki 751 - 1000 cc GSX-R 1000 R ABS DM11 2017
Suzuki 751 - 1000 cc GSX-R 1000 R ABS DM11 2018
Suzuki 751 - 1000 cc GSX-R 1000 R ABS DM11 2019
Suzuki 751 - 1000 cc GSX-R 1000 R ABS DM11 2020
Suzuki 751 - 1000 cc GSX-R 1000 R ABS DM11 2021
