AFAM chain kit for Suzuki GSX-R 1100 W 95-97 530 XSR2G chain kit

AFAM Chain Kit for Suzuki GSX-R 1100 W 95-97 530 XSR2G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless stated otherwise: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the Suzuki GSX-R 1100 W GU75C 1995-1997 conversion chain kit #530

• Front sprocket: AFAM front sprocket #530 16 teeth - a28400.16
• Chain: AFAM chain 530 XSR2-G Xs-ring 116 with rivet link - a530xsr2.g.116

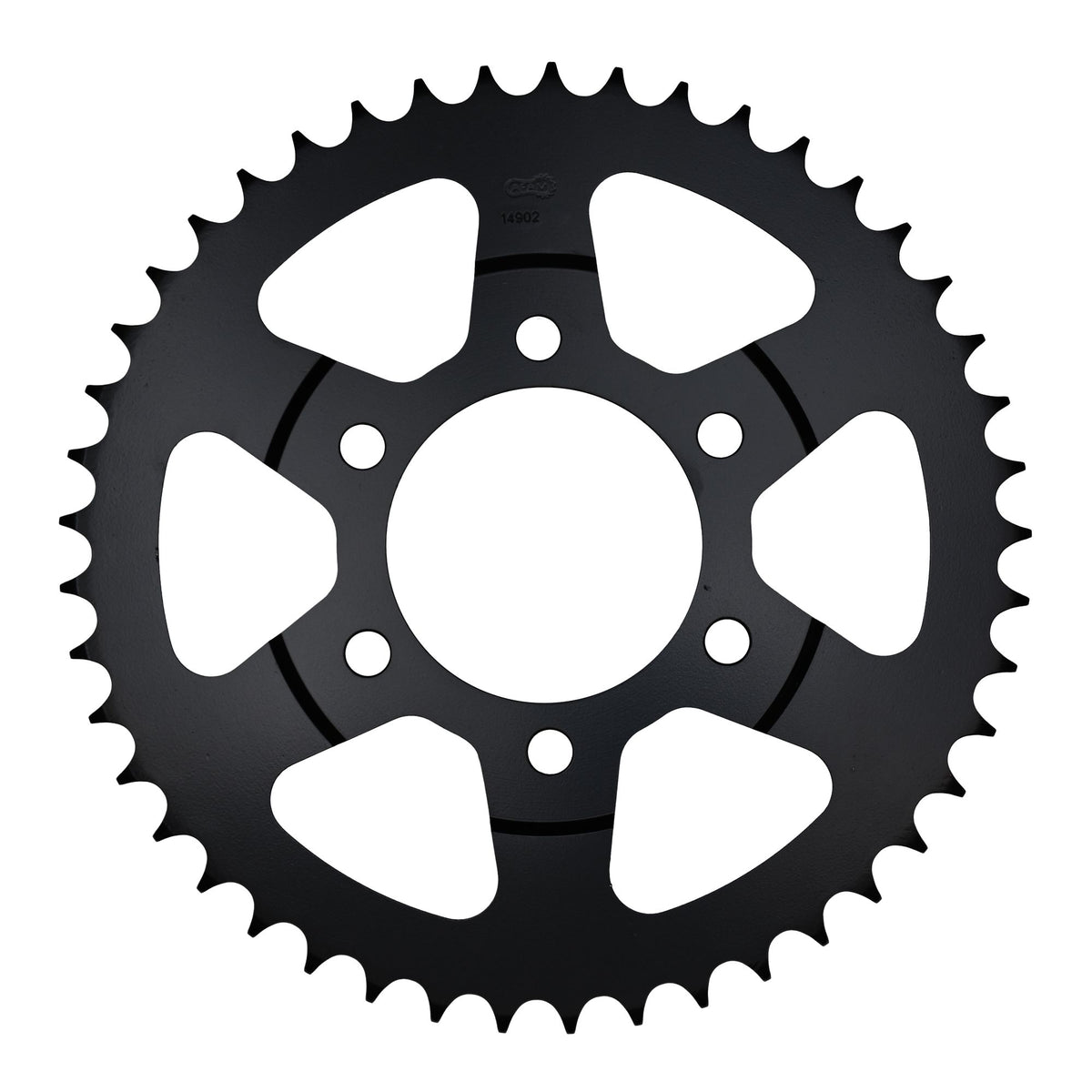

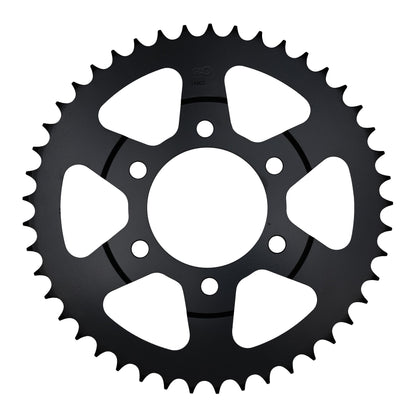

• Rear sprocket: AFAM rear sprocket STEEL #530 44 teeth - a14902.44
• Gear ratio front sprocket-chain-rear sprocket: 16-116-44 conversion #530

AFAM 530 XSR2-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1100 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.40 mm
Roller Ø: 10.20 mm
Inner plate thickness: 2.2 mm
Outer plate thickness: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 2.05 kg

Unless stated otherwise: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Part number	KKF-50404

Compatible with

Suzuki over 1001 cc GSX-R 1100 W GU75C 1995
Suzuki over 1001 cc GSX-R 1100 W GU75C 1996
Suzuki over 1001 cc GSX-R 1100 W GU75C 1997
