AFAM chain set for Suzuki GSX-R 600 04-05 520 XMR3 chain kit

AFAM chain kit for Suzuki GSX-R 600 04-05 520 XMR3 chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are only used to show compatibility!

Components of the chain kit Suzuki GSX-R 600 WVB2 2004-2005 conversion #520

• Sprocket: AFAM sprocket #520 16 teeth - a28404.16
• Chain: AFAM chain 520 XMR3 Xs-ring 112 with rivet link - a520xmr3.112

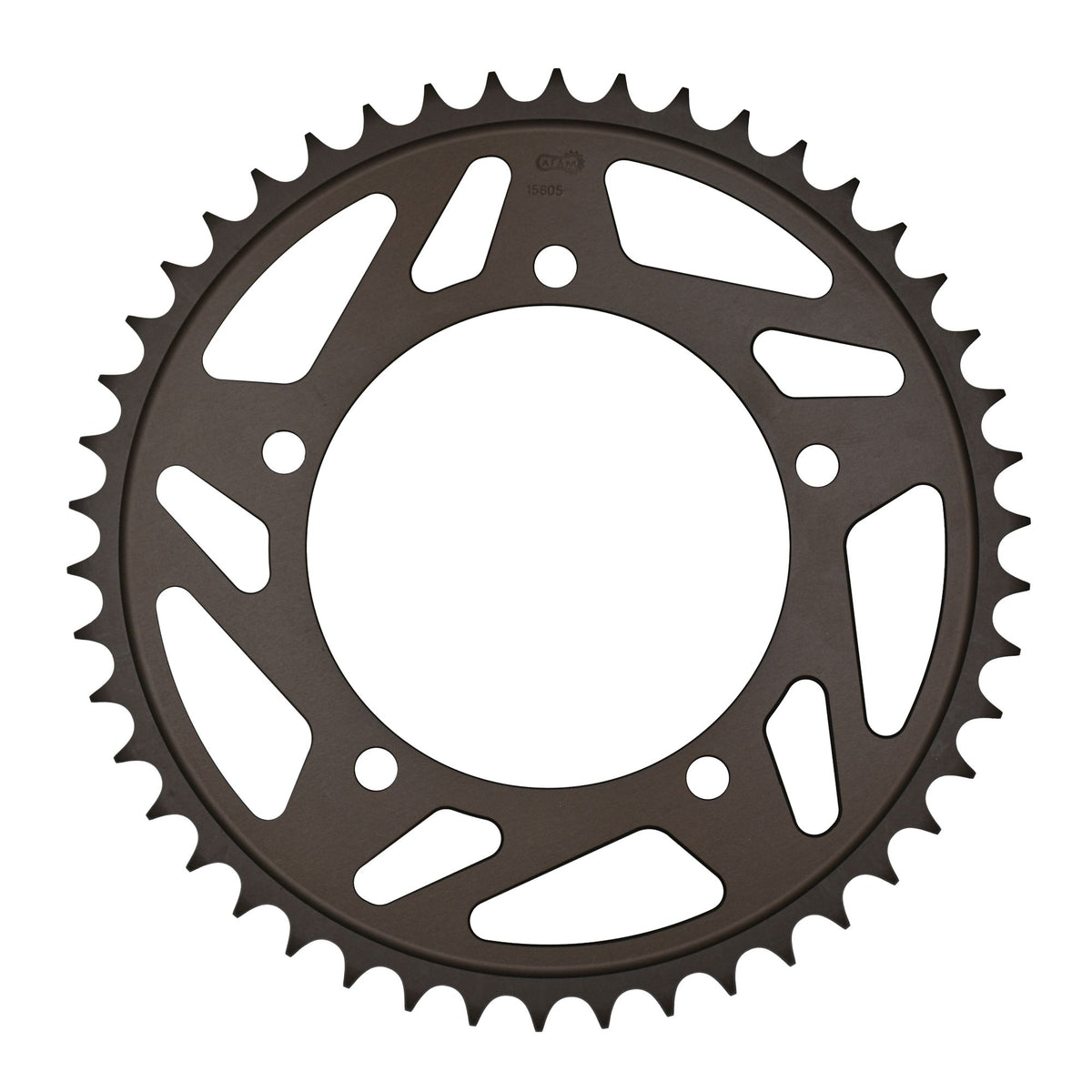

• Chain wheel: AFAM chain wheel ALU #520 45 teeth - a15605.45
• Gear ratio sprocket-chain-chain wheel: 16-112-45 conversion #520

AFAM 520 XMR3

Reinforced chain with low-friction properties
Xs-ring chain
Color: Steel
Application by displacement: up to 650 cc / road

Technical specifications:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-50887

Suitable for

Suzuki 501 - 750 cc GSX-R 600 WVB2 2004
Suzuki 501 - 750 cc GSX-R 600 WVB2 2005
