AFAM chain kit for Suzuki GSX-R 600 08-09 520 XSRG chain kit

AFAM chain set for Suzuki GSX-R 600 08-09 520 XSRG chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Suzuki GSX-R 600 WVCV 2008-2009 conversion #520

• Sprocket: AFAM sprocket #520 16 teeth - a28404.16
• Chain: AFAM chain 520 XSR-G Xs-ring 114 with rivet link - a520xsr.g.114

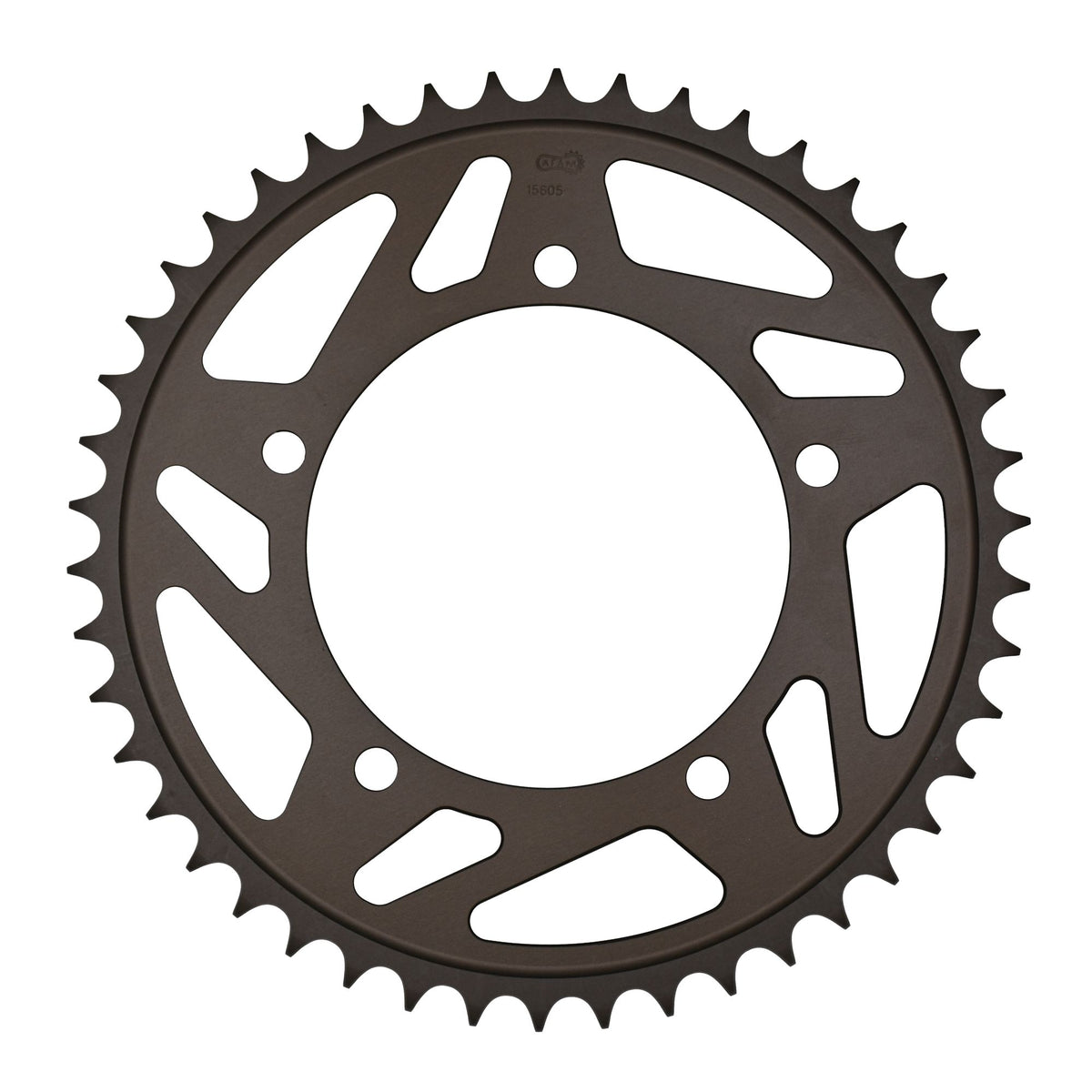

• Chain wheel: AFAM chain wheel ALU #520 43 teeth - a15605.43
• Gear ratio sprocket-chain-chain wheel: 16-114-43 conversion #520

AFAM 520 XSR-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 800 cc / road, sport and off-road

Technical data:
Pitch: 520
Pin length: 20.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 36.30 kN
Weight per 100 links: 1.58 kg

Unless otherwise stated: The offered goods are an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mentioning the brand is solely for determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-50892

Suitable for

Suzuki 501 - 750 cc GSX-R 600 WVCV 2008
Suzuki 501 - 750 cc GSX-R 600 WVCV 2009
