AFAM chain kit for Suzuki GSX-R 750 01-03 520 XSRG chain kit

AFAM chain kit for Suzuki GSX-R 750 01-03 520 XSRG chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - Manufacturer names are used only to indicate compatibility!

Components of the chain kit Suzuki GSX-R 750 WVBD 2001-2003 conversion #520

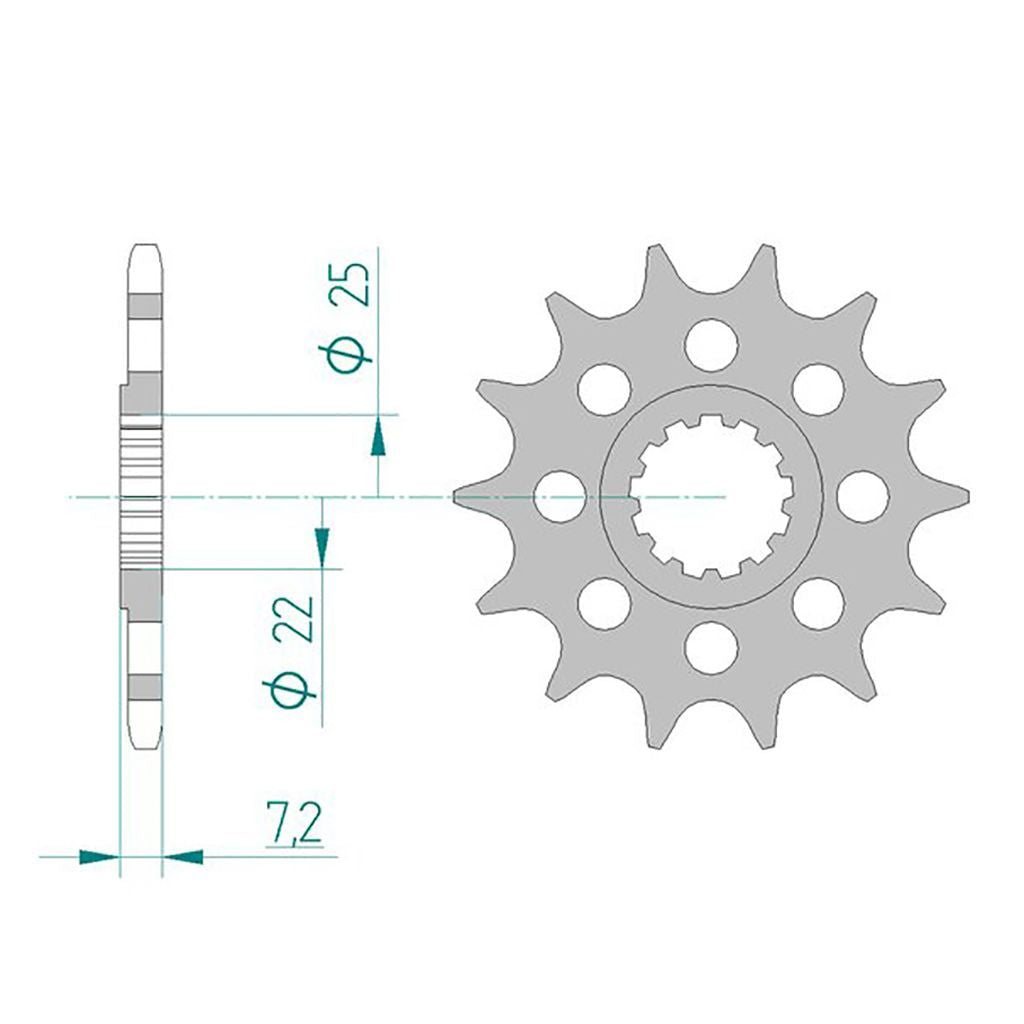

• Sprocket: AFAM sprocket #520 17 teeth - a28404.17
• Chain: AFAM chain 520 XSR-G Xs-Ring 110 w. rivet link - a520xsr.g.110

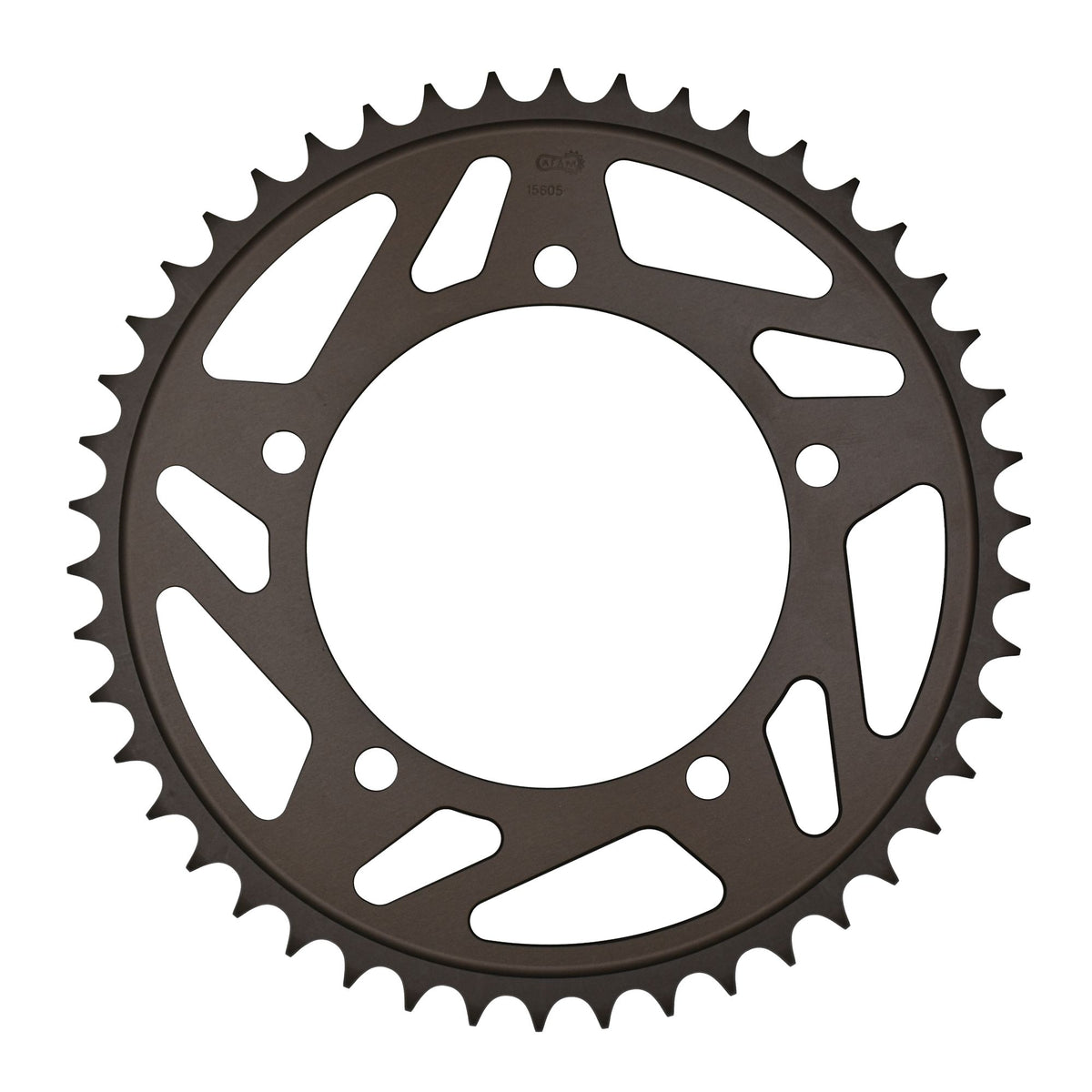

• Chain wheel: AFAM chain wheel ALU #520 42 teeth - a15605.42
• Gear ratio sprocket-chain-chain wheel: 17-110-42 conversion #520

AFAM 520 XSR-G

Super reinforced chain with low-friction properties
Xs-Ring chain
Color: Gold
Application by displacement: up to 800 cc / road, sport and offroad

Technical data:
Pitch: 520
Pin length: 20.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 36.30 kN
Weight per 100 links: 1.58 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer that was not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-52475

Fits

Suzuki 501 - 750 cc GSX-R 750 WVBD 2001
Suzuki 501 - 750 cc GSX-R 750 WVBD 2002
Suzuki 501 - 750 cc GSX-R 750 WVBD 2003
