AFAM chain kit for Suzuki GSX-R 750 88-89 530 XHR2G chain kit

AFAM chain kit for Suzuki GSX-R 750 88-89 530 XHR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are only used to show compatibility!

Components of the chain kit Suzuki GSX-R 750 GR77B 1988-1989

• Front sprocket: AFAM sprocket #530 15 teeth - a28400.15
• Chain: AFAM chain 530 XHR2-G Xs-ring 108 w. rivet link - a530xhr2.g.108

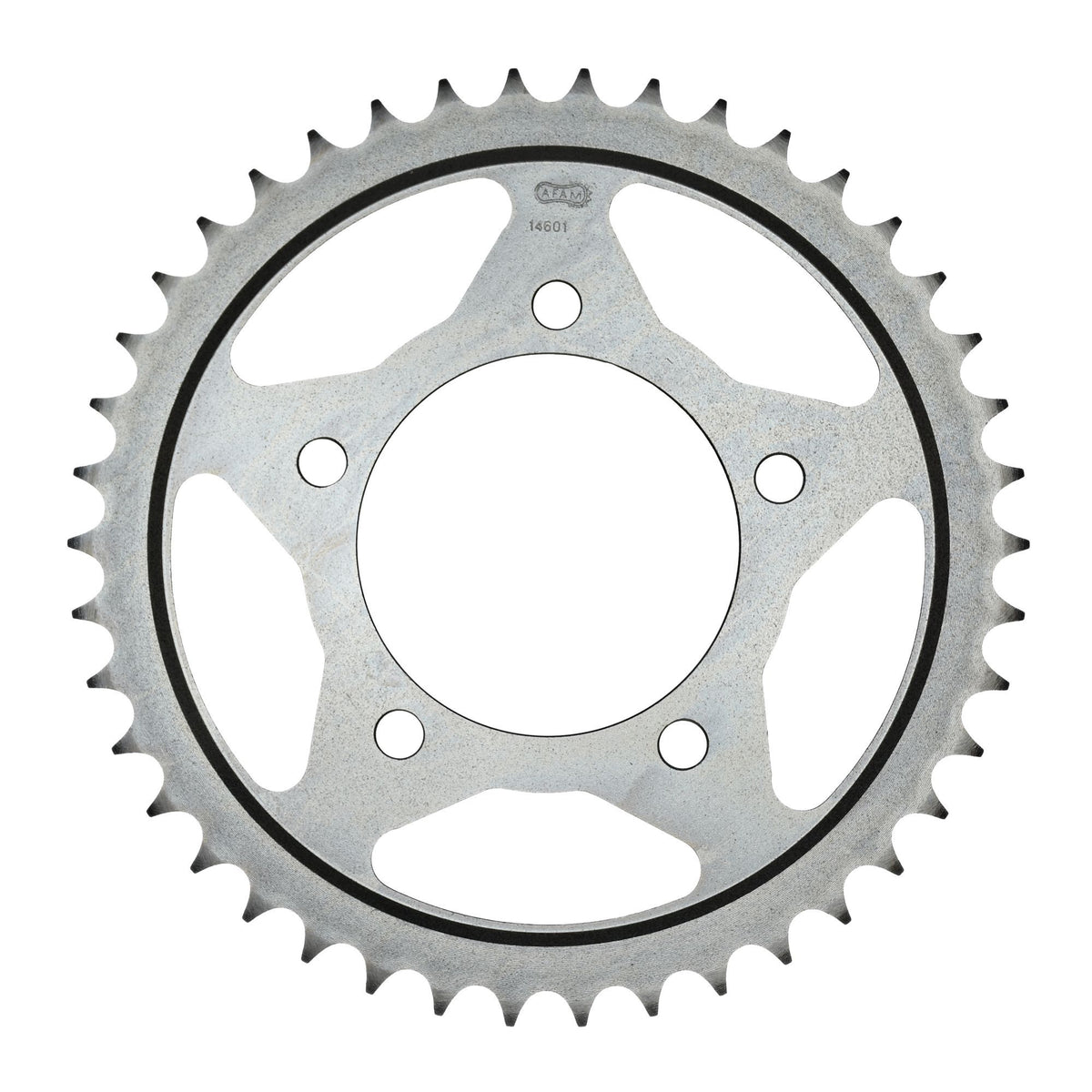

• Rear sprocket: AFAM rear sprocket STEEL #530 44 teeth - a14601.44
• Transmission ratio front sprocket-chain-rear sprocket: 15-108-44

AFAM 530 XHR2-G

Hyper-reinforced chain with smooth-running properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1400 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.70 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.16 kg

Unless otherwise stated: The offered goods are an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-52440

Suitable for

Suzuki 501 - 750 ccm GSX-R 750 GR77B 1988
Suzuki 501 - 750 ccm GSX-R 750 GR77B 1989
