AFAM chain kit for Suzuki GSX-R 750 96-97 530 XHR2G chain kit

AFAM chain kit for Suzuki GSX-R 750 96-97 530 XHR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the Suzuki GSX-R 750 GR7DB 1996-1997 chain kit

• Front sprocket: AFAM rubberized sprocket #530 Silent Sprocket 16 teeth - a28400oem.16
• Chain: AFAM chain 530 XHR2-G Xs-Ring 108 w. rivet link - a530xhr2.g.108

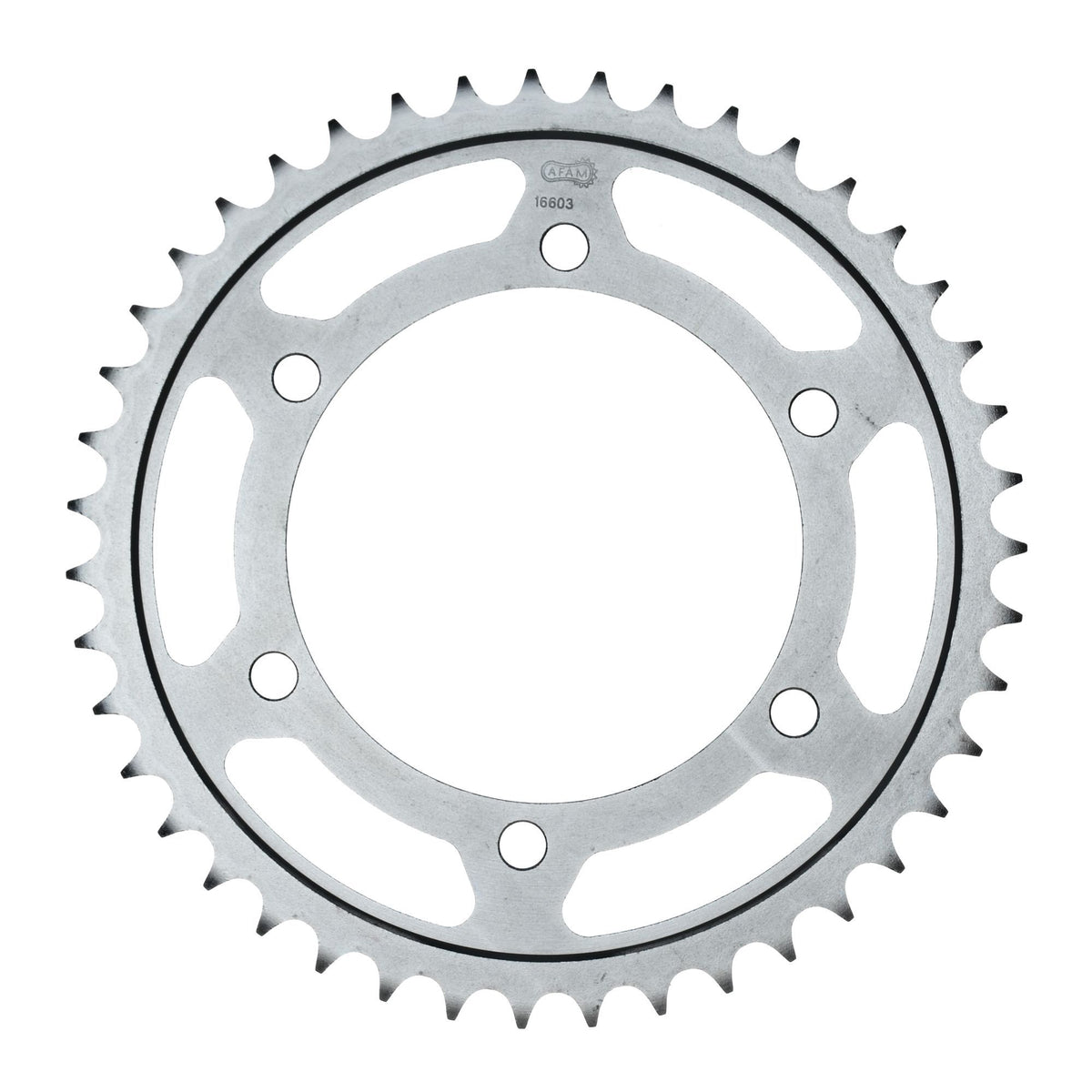

• Rear sprocket: AFAM STEEL rear sprocket #530 43 teeth - a16603.43
• Gear ratio front sprocket-chain-rear sprocket: 16-108-43

AFAM 530 XHR2-G

Hyper reinforced chain with low-friction properties. The "all-rounder"!
Xs-Ring chain
Color: Gold
Application by displacement: up to 1400 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.70 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.16 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-16359

Fits

Suzuki 501 - 750 ccm GSX-R 750 GR7DB 1996
Suzuki 501 - 750 ccm GSX-R 750 GR7DB 1997
