AFAM chain kit for Suzuki GSX-R 750 96-97 530 XHR2G chain kit

AFAM Chain Kit for Suzuki GSX-R 750 96-97 530 XHR2G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Suzuki GSX-R 750 GR7DB 1996-1997

• Front sprocket: AFAM front sprocket #530 16 teeth - a28400.16
• Chain: AFAM chain 530 XHR2-G Xs-ring 108 w. rivet link - a530xhr2.g.108

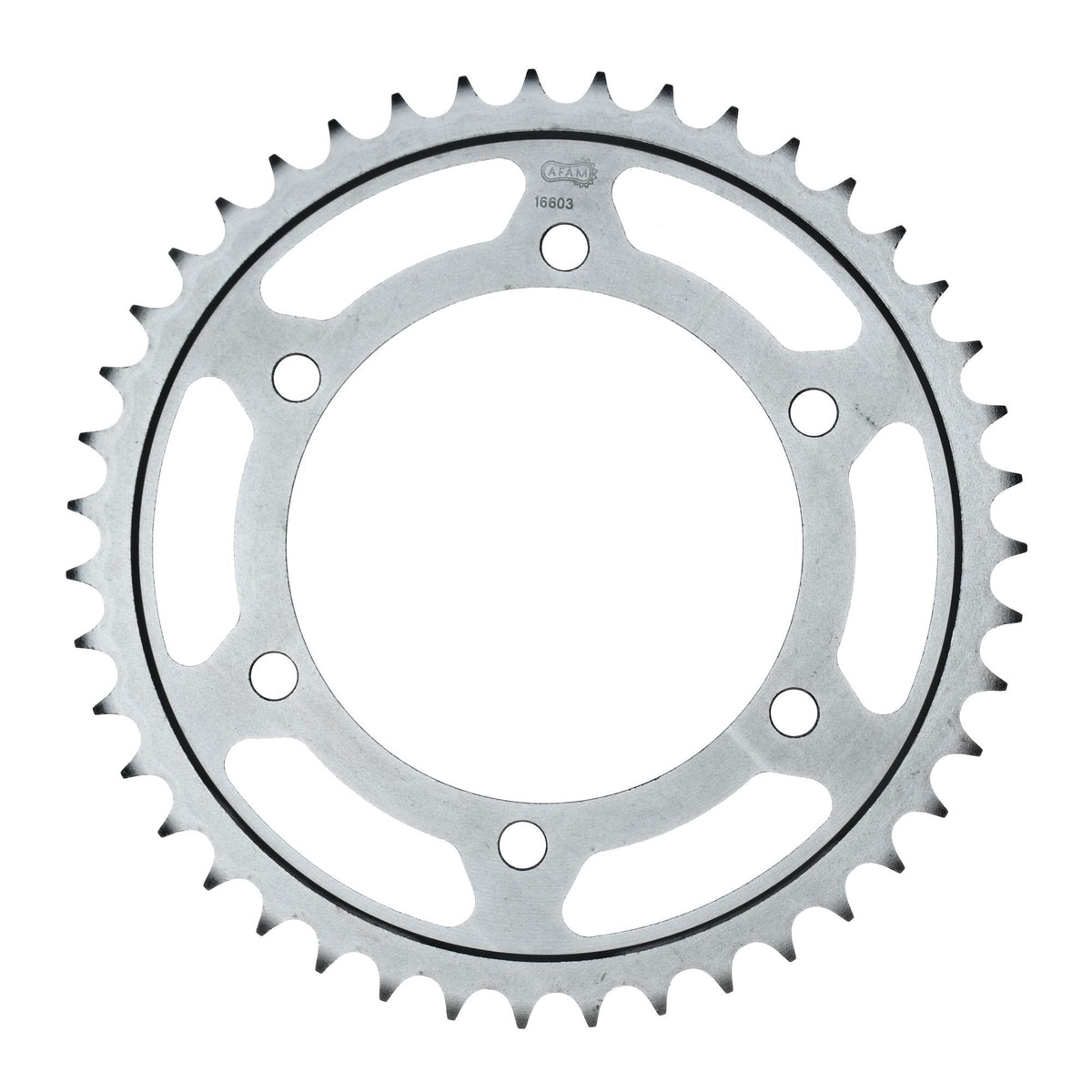

• Rear sprocket: AFAM steel rear sprocket #530 43 teeth - a16603.43
• Gear ratio sprocket-chain-rear sprocket: 16-108-43

AFAM 530 XHR2-G

Hyper reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1400 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.70 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.16 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-52446

Fits

Suzuki 501 - 750 cc GSX-R 750 GR7DB 1996
Suzuki 501 - 750 cc GSX-R 750 GR7DB 1997
