AFAM chain kit for Suzuki GSX-R 750 98-99 525 XSR2G chain kit

AFAM chain kit for Suzuki GSX-R 750 98-99 525 XSR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the chain kit Suzuki GSX-R 750 GR7DB 1998-1999

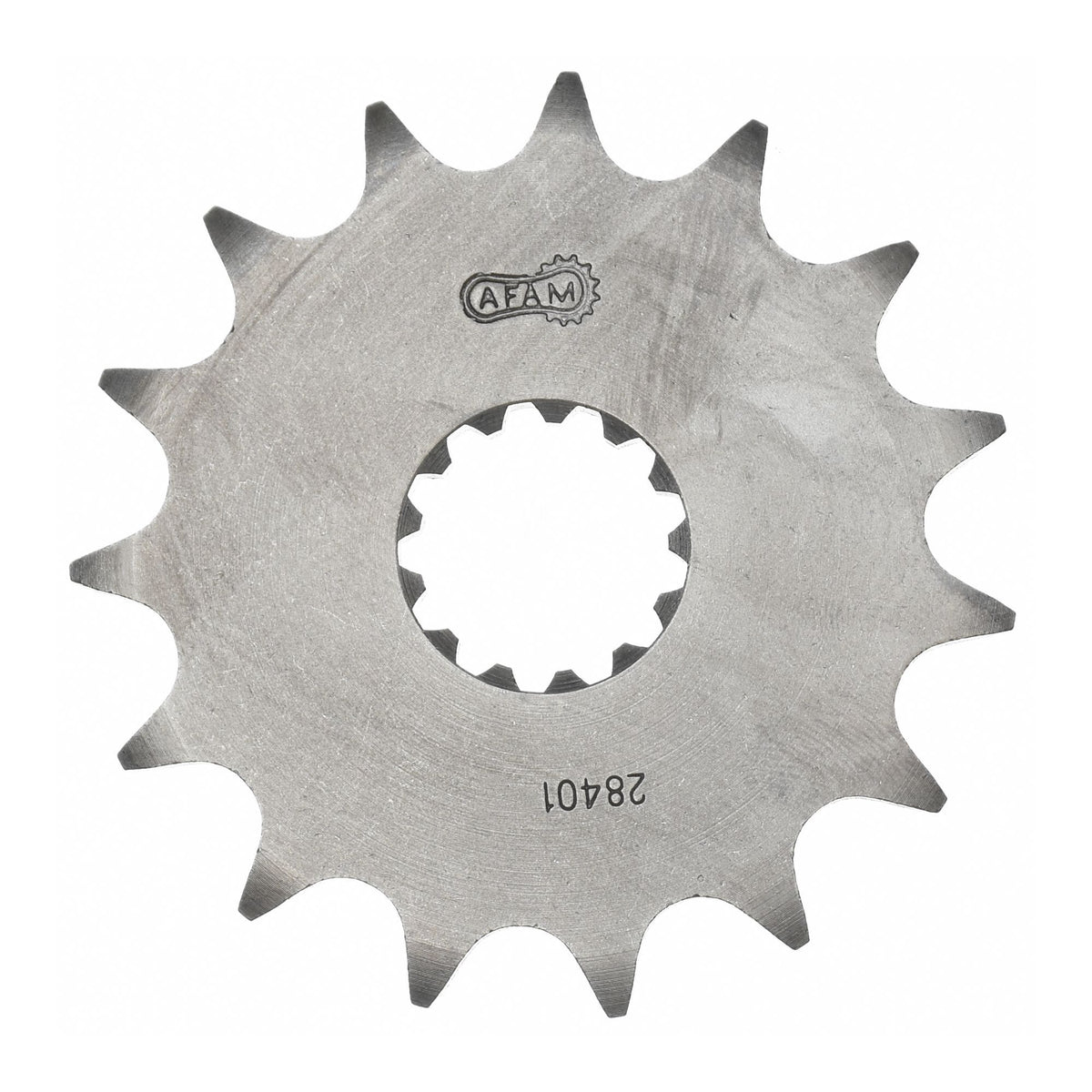

• Sprocket: AFAM sprocket #525 16 teeth - a28401.16
• Chain: AFAM chain 525 XSR2-G Xs-ring 108 w. rivet link - a525xsr2.g.108

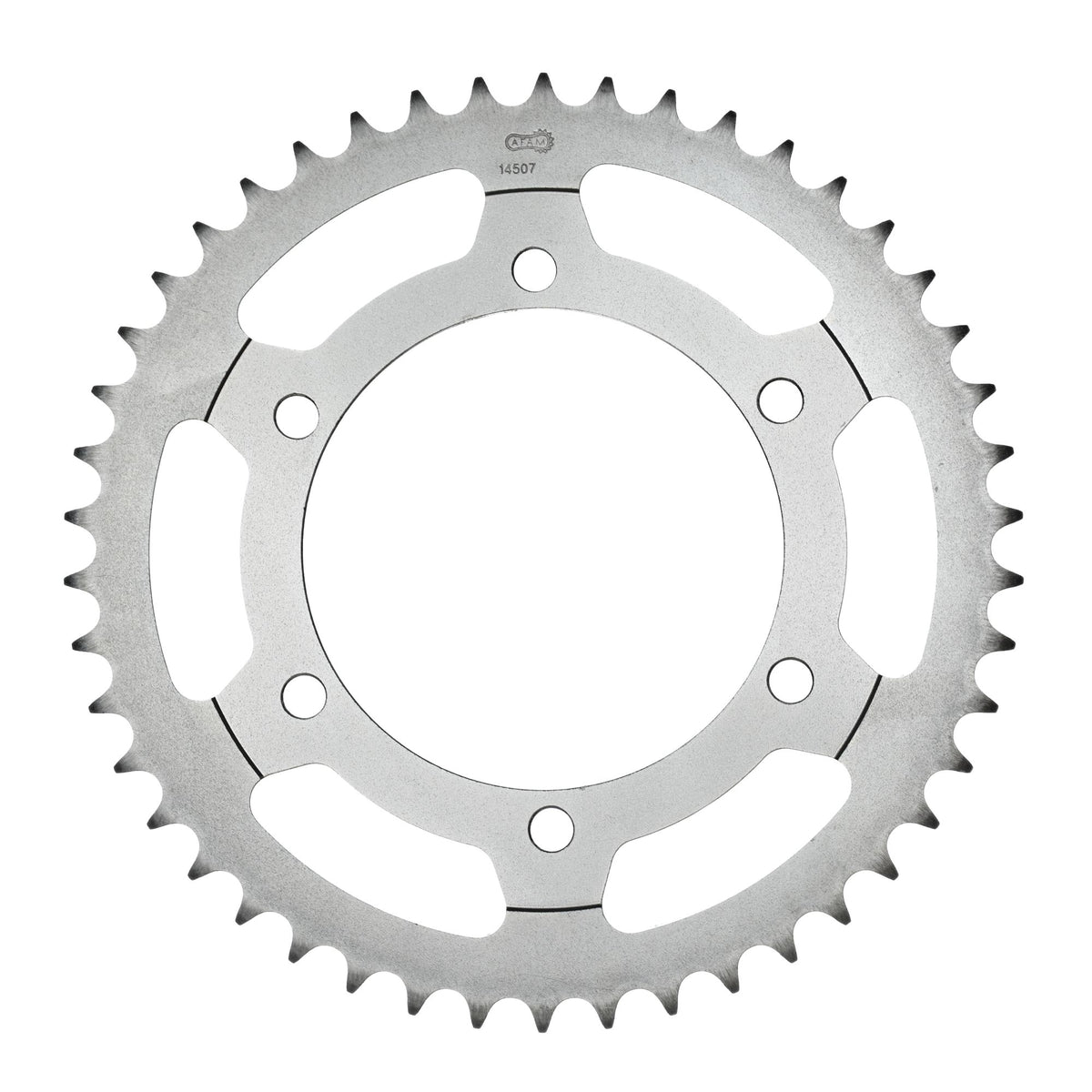

• Rear sprocket: AFAM rear sprocket STEEL #525 44 teeth - a14507.44
• Gear ratio sprocket-chain-rear sprocket: 16-108-44

AFAM 525 XSR2-G

Super reinforced chain with smooth-running properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 525
Pin length: 22.75 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is exclusively for the determination of compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-52471

Suitable for

Suzuki 501 - 750 cc GSX-R 750 GR7DB 1998
Suzuki 501 - 750 cc GSX-R 750 GR7DB 1999
