AFAM chain kit for Suzuki GSX-S 1000 F ABS 15-16 525 XHR3G chain kit

AFAM chain kit for Suzuki GSX-S 1000 F ABS 15-16 525 XHR3G chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Suzuki GSX-S 1000 F ABS DG 2015-2016

• Sprocket: AFAM sprocket #525 17 teeth - a28401.17
• Chain: AFAM chain 525 XHR3-G Xs-ring 116 with rivet link - a525xhr3.g.116

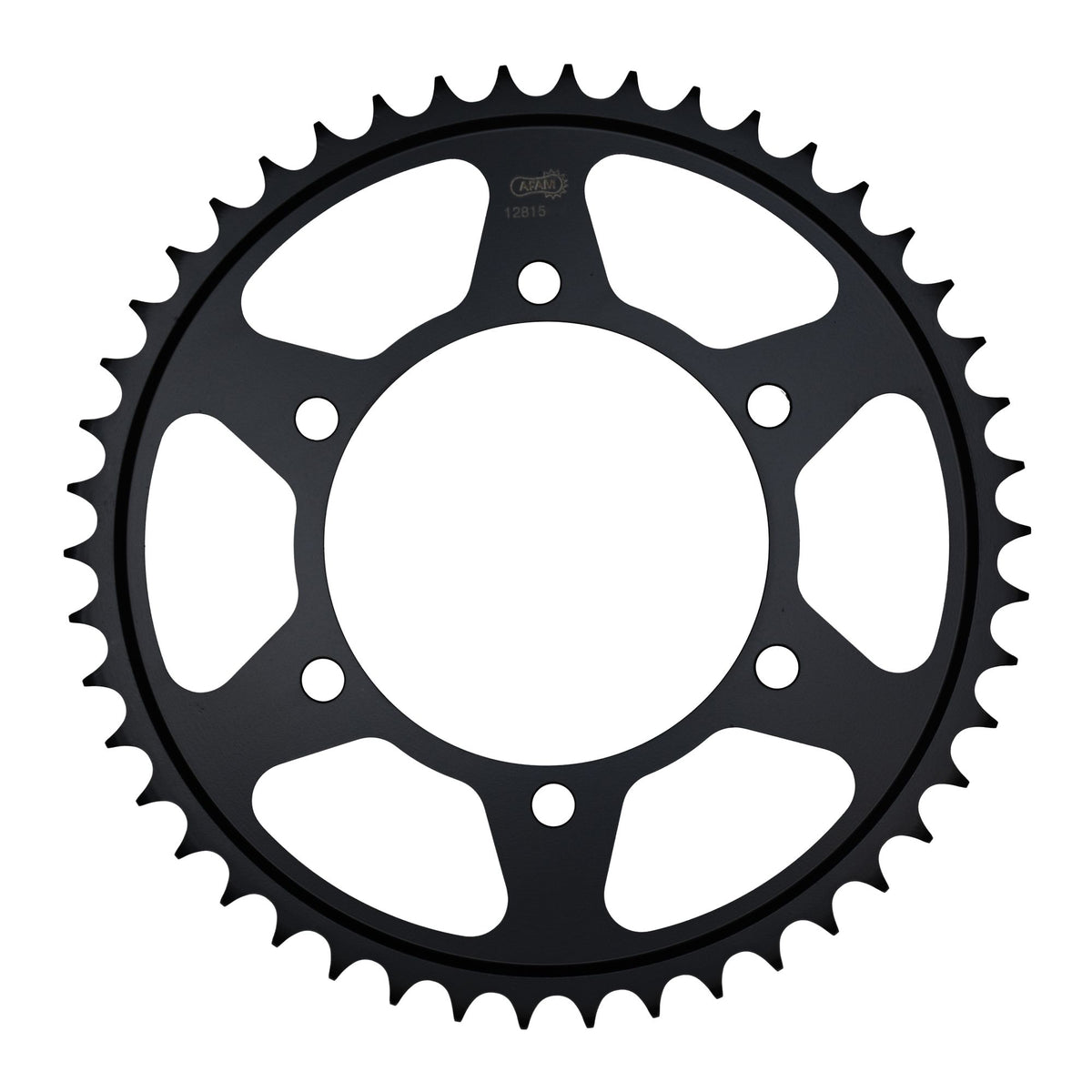

• Rear sprocket: AFAM rear sprocket STEEL #525 44 teeth - a12815.44
• Gear ratio sprocket-chain-rear sprocket: 17-116-44

AFAM 525 XHR3-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / street and sport

Technical data:
Pitch: 525
Pin length: 23.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.06 kg

Unless otherwise stated: The offered goods are accessories/spare parts from a third-party manufacturer, which were not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Part number	KKF-50376

Fits

Suzuki 751 - 1000 cc GSX-S 1000 F ABS DG 2015
Suzuki 751 - 1000 cc GSX-S 1000 F ABS DG 2016
