AFAM chain kit for Suzuki GSX-S 1000 F ABS 17-21 525 XHR3G chain kit

AFAM chain kit for Suzuki GSX-S 1000 F ABS 17-21 525 XHR3G chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Suzuki GSX-S 1000 F ABS DG 2017-2021

• Sprocket: AFAM sprocket #525 17 teeth - a28401.17
• Chain: AFAM chain 525 XHR3-G Xs-ring 116 with rivet link - a525xhr3.g.116

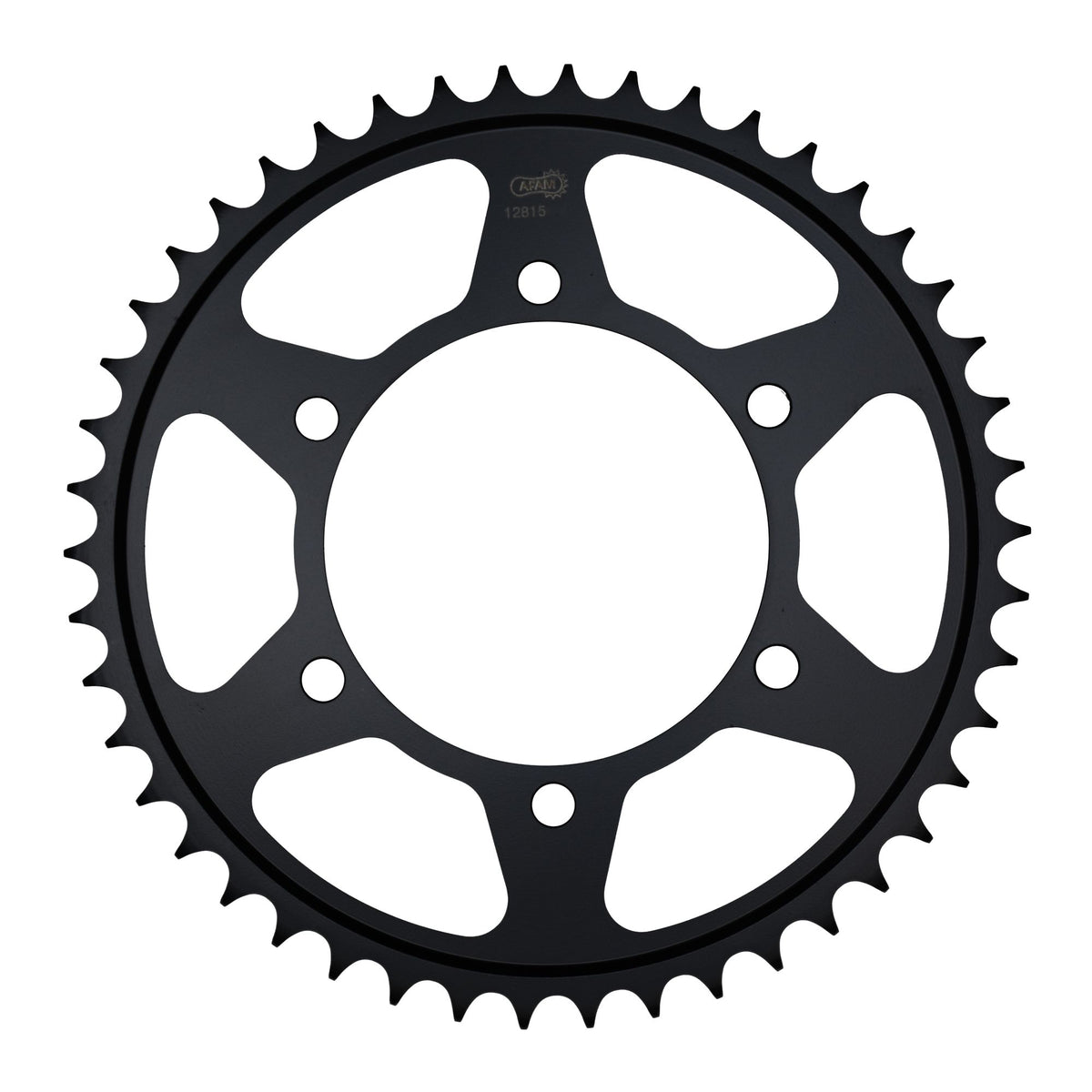

• Rear sprocket: AFAM rear sprocket STEEL #525 44 teeth - a12815.44
• Transmission ratio sprocket-chain-rear sprocket: 17-116-44

AFAM 525 XHR3-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / street and sport

Technical data:
Pitch: 525
Pin length: 23.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.06 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-15954

Suitable for

Suzuki 751 - 1000 cc GSX-S 1000 F ABS DG 2017
Suzuki 751 - 1000 cc GSX-S 1000 F ABS DG 2018
Suzuki 751 - 1000 cc GSX-S 1000 F ABS DG 2019
Suzuki 751 - 1000 cc GSX-S 1000 F ABS DG 2020
Suzuki 751 - 1000 cc GSX-S 1000 F ABS DG 2021
