AFAM chain kit for Suzuki GSX-S 1000 Street ABS 17-18 525 XSR2G chain kit

AFAM Chain Kit for Suzuki GSX-S 1000 Street ABS 17-18 525 XSR2G Chain Kit

Chain kit or chain set for the assigned model as per article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit for Suzuki GSX-S 1000 Street ABS DG 2017-2018

• Front sprocket: AFAM front sprocket #525 17 teeth - a28401.17
• Chain: AFAM chain 525 XSR2-G Xs-Ring 116 with rivet link - a525xsr2.g.116

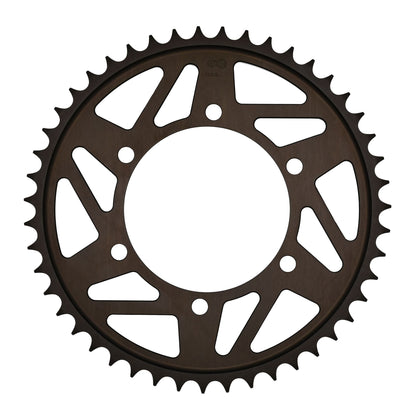

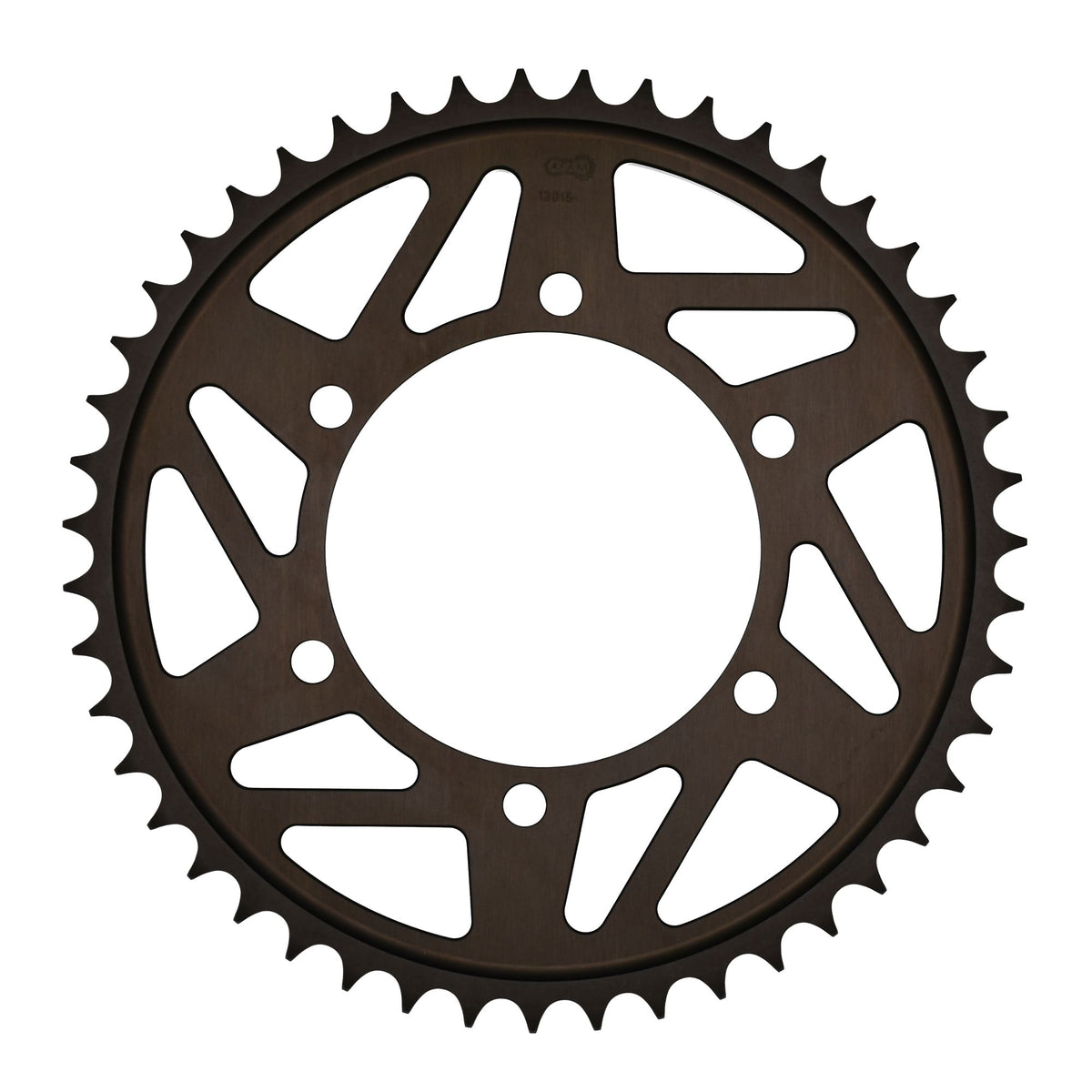

• Rear sprocket: AFAM rear sprocket 13815-44 ALU #525 44 teeth - a13815.44
• Gear ratio front sprocket-chain-rear sprocket: 17-116-44

AFAM 525 XSR2-G

Super reinforced chain with smooth-running properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical specifications:
Pitch: 525
Pin length: 22.75 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-43537

Suitable for

Suzuki 751 - 1000 cc GSX-S 1000 Street ABS DG 2017
Suzuki 751 - 1000 cc GSX-S 1000 Street ABS DG 2018
