AFAM chain kit for Suzuki GT 500 76-79 530 XHR2G chain kit

AFAM Chain kit for Suzuki GT 500 76-79 530 XHR2G chain kit

Chain kit or chain set for the assigned model as per article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the chain kit Suzuki GT 500 T500 1976-1979

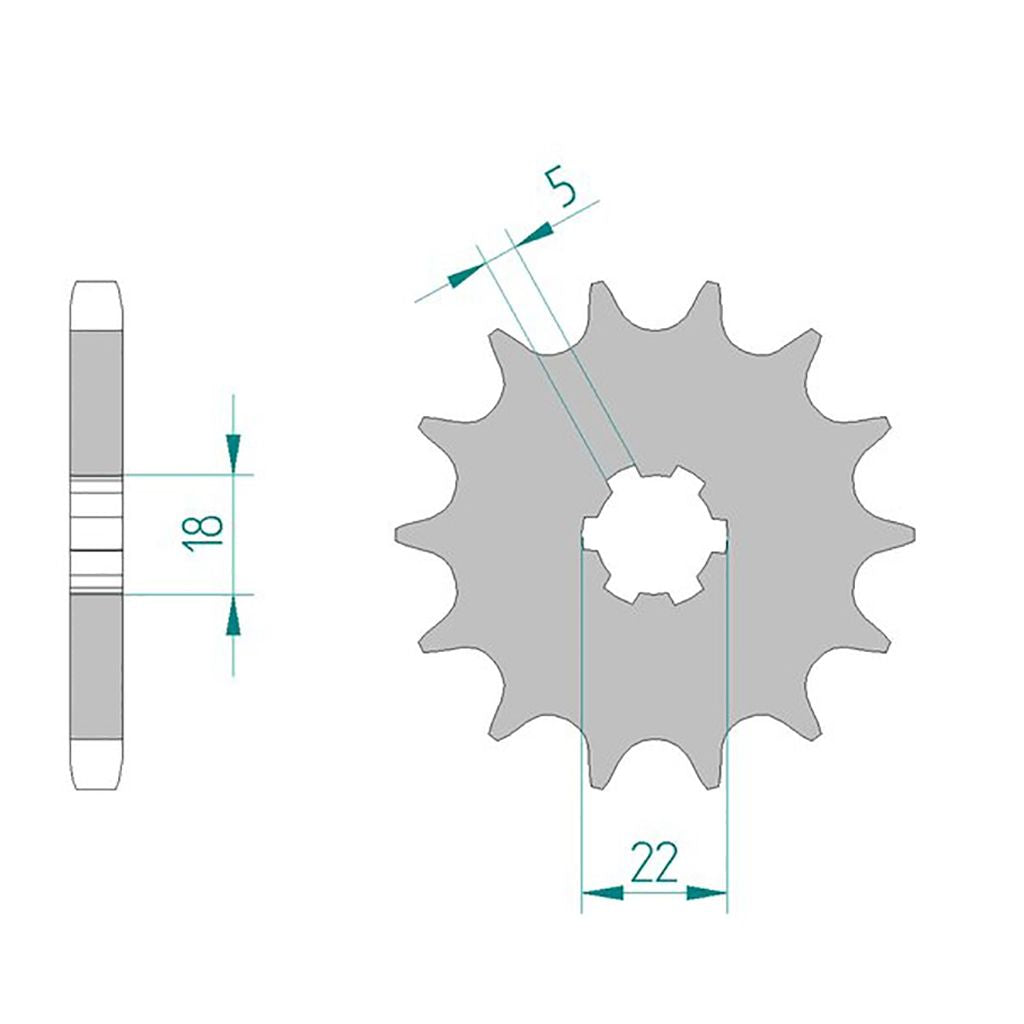

• Front sprocket: AFAM front sprocket #530 15 teeth - a22501.15
• Chain: AFAM chain 530 XHR2-G Xs-ring 110 w. rivet link - a530xhr2.g.110

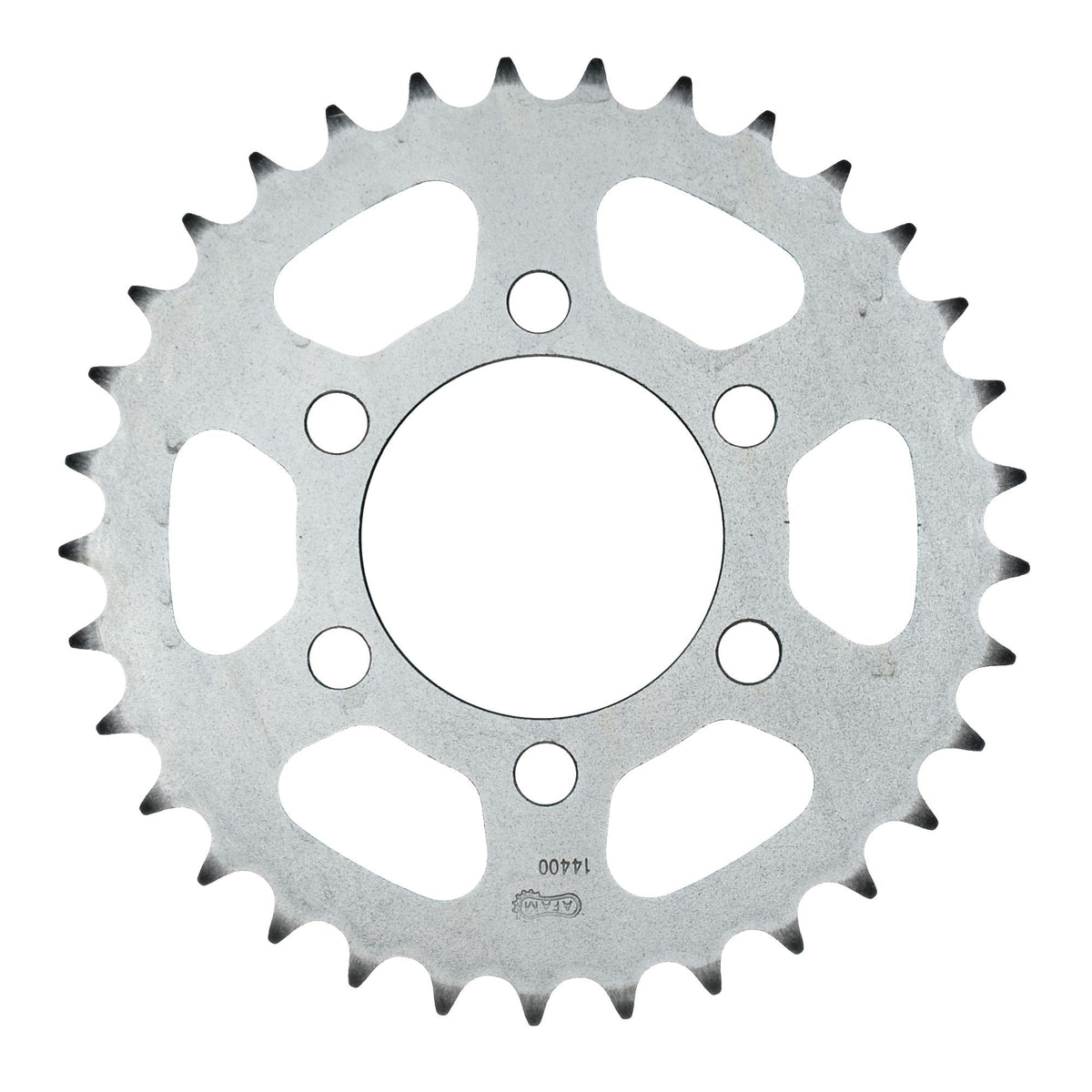

• Rear sprocket: AFAM STEEL rear sprocket #530 33 teeth - a14400.33
• Gear ratio front sprocket-chain-rear sprocket: 15-110-33

AFAM 530 XHR2-G

Hyper-reinforced chain with smooth-running properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by engine displacement: up to 1400 cc / street and sport

Technical data:
Pitch: 530
Pin length: 24.70 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.16 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively for the determination of compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-50826

Suitable for

Suzuki 251 - 500 cc GT 500 T500 1976
Suzuki 251 - 500 cc GT 500 T500 1977
Suzuki 251 - 500 cc GT 500 T500 1978
Suzuki 251 - 500 cc GT 500 T500 1979
