AFAM chain kit for Suzuki GT 500 76-79 530 XMR3 chain kit

AFAM chain kit for Suzuki GT 500 76-79 530 XMR3 chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are only mentioned to illustrate compatibility!

Components of the chain kit for Suzuki GT 500 T500 1976-1979

• Front sprocket: AFAM front sprocket #530 15 teeth - a22501.15
• Chain: AFAM chain 530 XMR3 Xs-ring 110 w. rivet link - a530xmr3.110

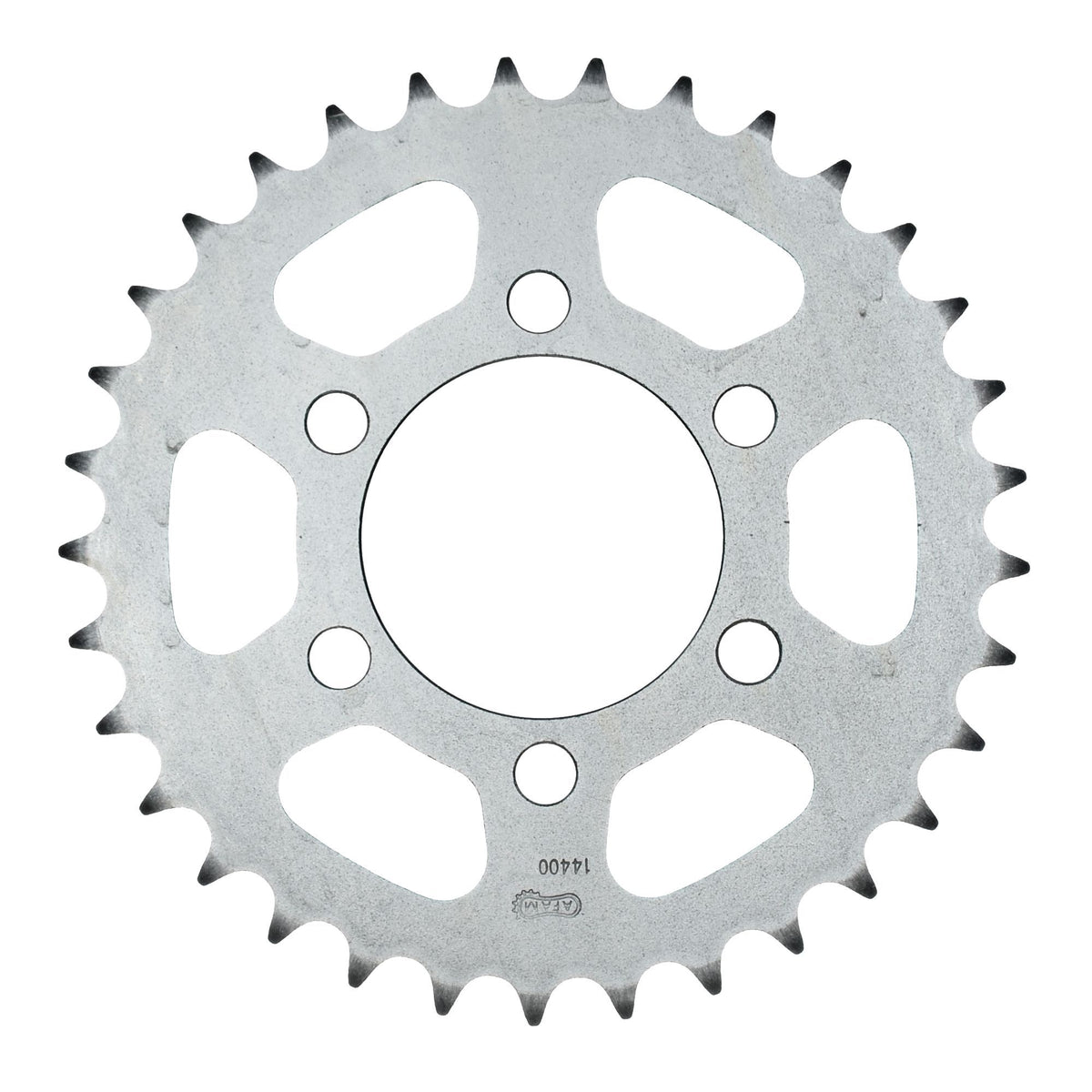

• Rear sprocket: AFAM steel rear sprocket #530 33 teeth - a14400.33
• Gear ratio front sprocket-chain-rear sprocket: 15-110-33

AFAM 530 XMR3

Reinforced chain with low-friction properties
Xs-ring chain
Color: Steel
Application by displacement: up to 800 cc / road

Technical specifications:
Pitch: 530
Pin length: 25.50 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 2.08 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-52009

Fits

Suzuki 251 - 500 cc GT 500 T500 1976
Suzuki 251 - 500 cc GT 500 T500 1977
Suzuki 251 - 500 cc GT 500 T500 1978
Suzuki 251 - 500 cc GT 500 T500 1979
