AFAM chain kit for Suzuki Inazuma 250 F 15-16 520 MR2G chain kit

AFAM chain kit for Suzuki Inazuma 250 F 15-16 520 MR2G chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Suzuki Inazuma 250 F GW250F 2015-2016

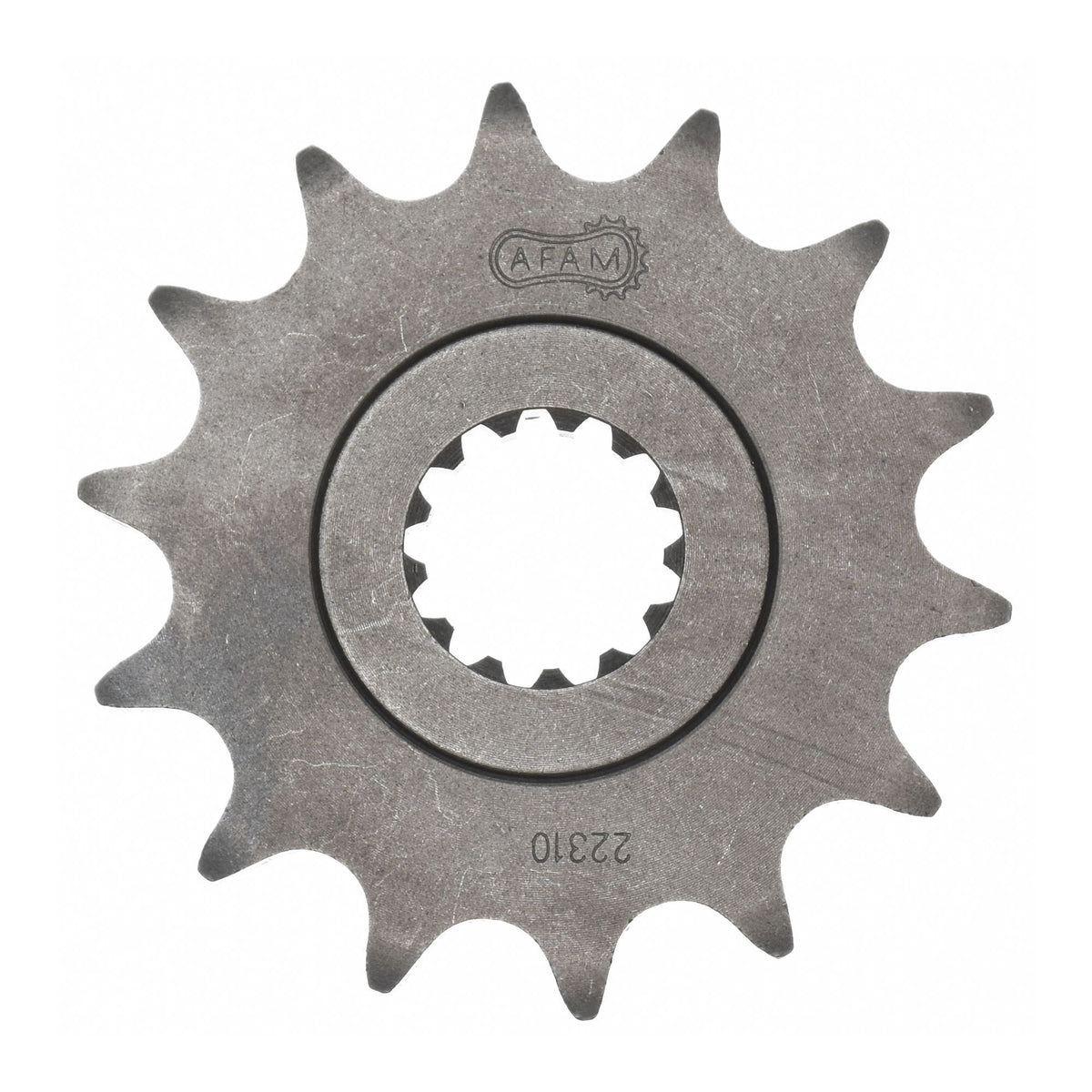

• Front sprocket: AFAM front sprocket #520 14 teeth - a22310.14
• Chain: AFAM chain 520 MR2-G w. clip link - a520mr2.g.116

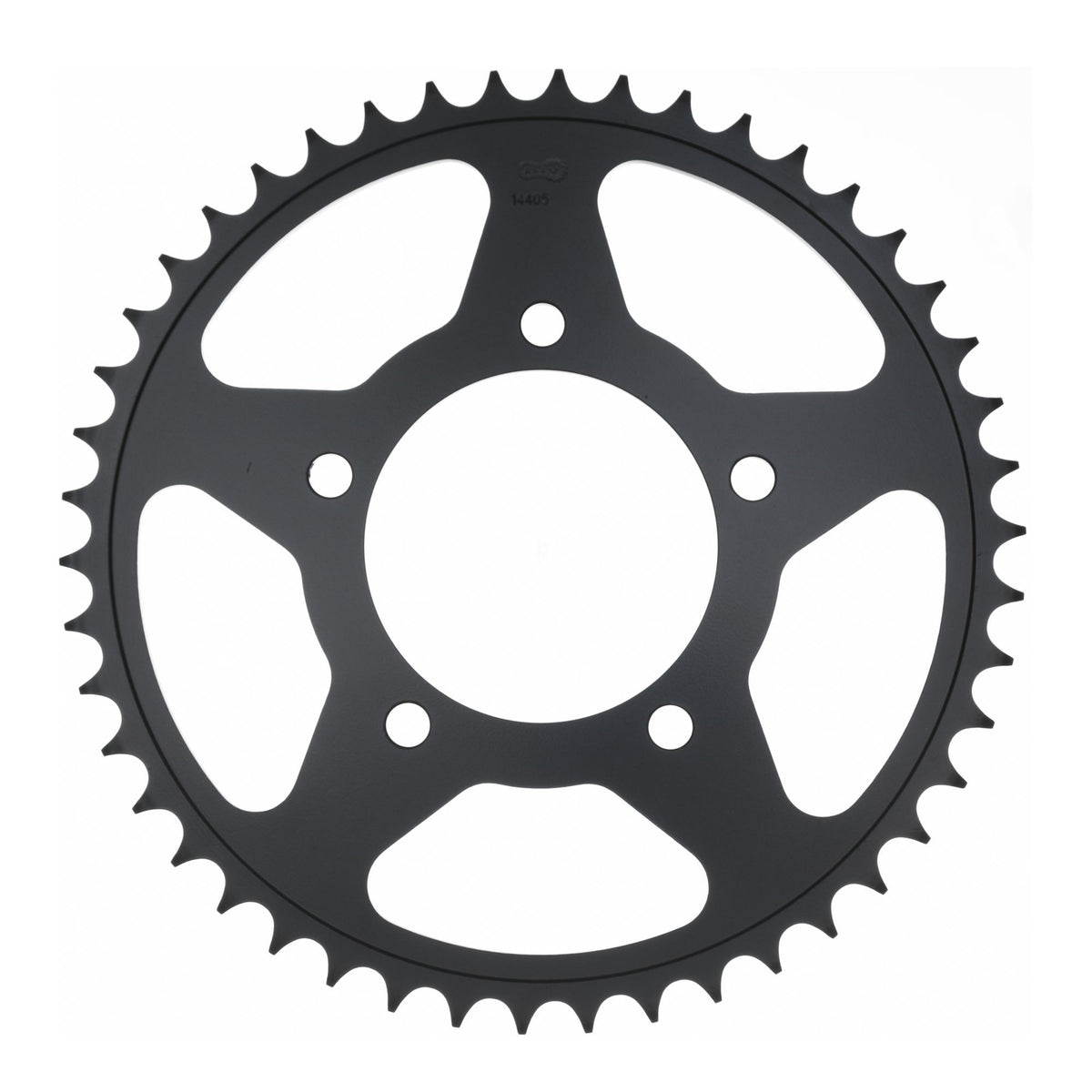

• Rear sprocket: AFAM rear sprocket STEEL #520 46 teeth - a14405.46
• Gear ratio front sprocket-chain-rear sprocket: 14-116-46

AFAM 520 MR2-G

Reinforced chain
Without O-rings
Color: Gold
Application by displacement: up to 250 cc / street, off-road, and motocross

Technical specifications:
Pitch: 520
Pin length: 18.9 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 34.30 kN
Weight per 100 links: 1.64 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-44340

Fits

Suzuki 126 - 250 cc Inazuma 250 F GW250F 2015
Suzuki 126 - 250 cc Inazuma 250 F GW250F 2016
