AFAM chain set for Suzuki JR 50 78-07 420 R1G chain kit

AFAM Chain Kit for Suzuki JR 50 78-07 420 R1G Chain Kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility identification purposes only!

Components of the chain kit Suzuki JR 50 1978-2007

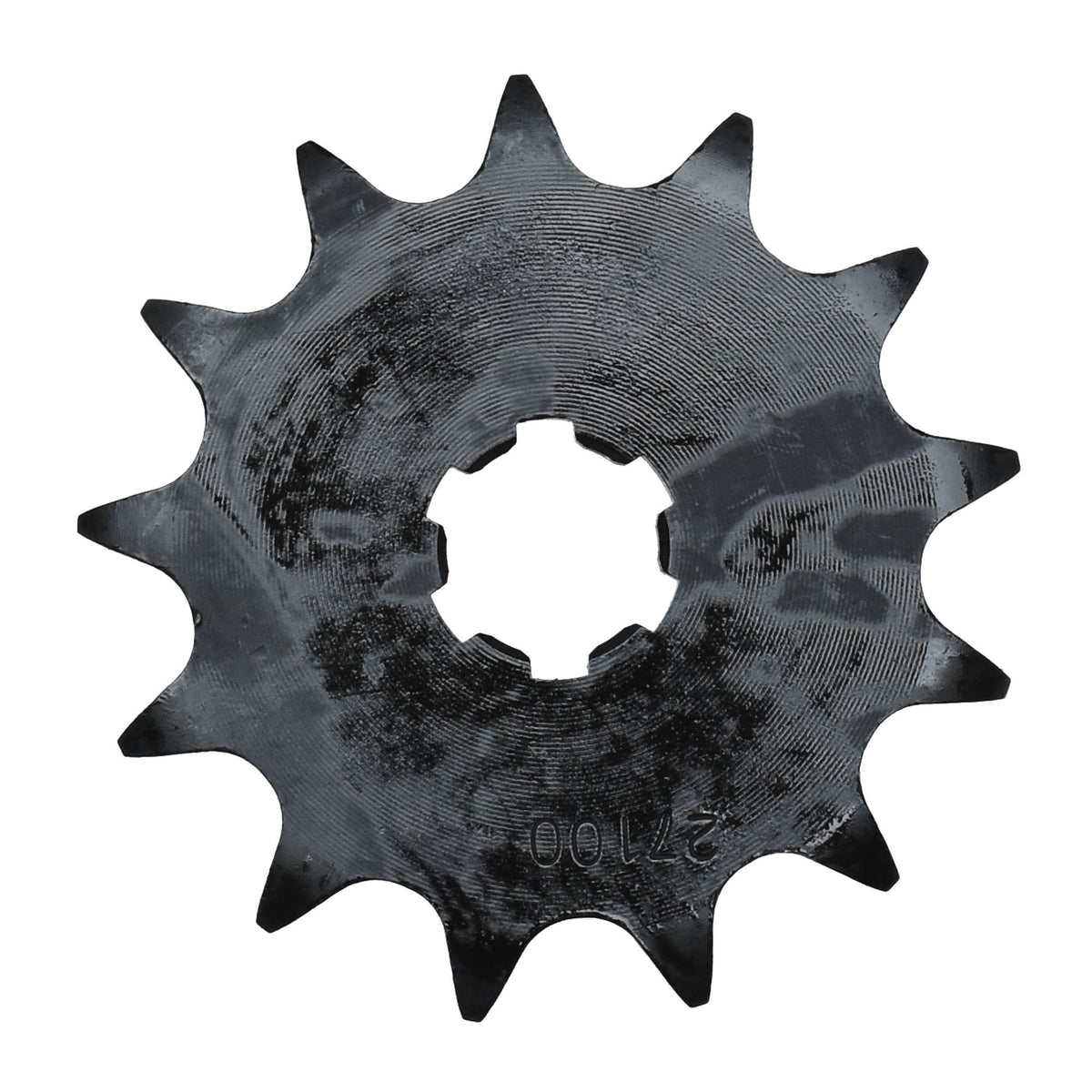

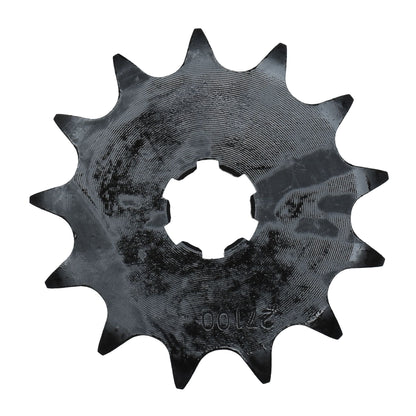

• Front sprocket: AFAM front sprocket #420 13 teeth - a27100.13
• Chain: AFAM chain 420 R1-G reinforced 78 with clip-type connecting link - a420r1.g.78
• Rear sprocket: AFAM rear sprocket STEEL #420 28 teeth - a14102.28
• Gear ratio sprocket-chain-rear sprocket: 13-78-28

AFAM 420 R1-G

Lightly reinforced chain
Without O-rings
Color: Gold

Technical specifications:
Pitch: 420
Pin length: 16.2 mm
Roller Ø: 7.75 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 21.00 kN
Weight per 100 links: 0.88 kg

Unless otherwise stated: The product offered is an accessory part/spare part from a third-party manufacturer and was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely for the purpose of identifying compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Article number	KKF-51997

Suitable for

Suzuki 0 - 100 cc JR 50 1978
Suzuki 0 - 100 cc JR 50 1979
Suzuki 0 - 100 cc JR 50 1980
Suzuki 0 - 100 cc JR 50 1981
Suzuki 0 - 100 cc JR 50 1982
Suzuki 0 - 100 cc JR 50 1983
Suzuki 0 - 100 cc JR 50 1984
Suzuki 0 - 100 cc JR 50 1985
Suzuki 0 - 100 cc JR 50 1986
Suzuki 0 - 100 cc JR 50 1987
Suzuki 0 - 100 cc JR 50 1988
Suzuki 0 - 100 cc JR 50 1989
Suzuki 0 - 100 cc JR 50 1990
Suzuki 0 - 100 cc JR 50 1991
Suzuki 0 - 100 cc JR 50 1992
Suzuki 0 - 100 cc JR 50 1993
Suzuki 0 - 100 cc JR 50 1994
Suzuki 0 - 100 cc JR 50 1995
Suzuki 0 - 100 cc JR 50 1996
Suzuki 0 - 100 cc JR 50 1997
Suzuki 0 - 100 cc JR 50 1998
Suzuki 0 - 100 cc JR 50 1999
Suzuki 0 - 100 cc JR 50 2000
Suzuki 0 - 100 cc JR 50 2001
Suzuki 0 - 100 cc JR 50 2002
Suzuki 0 - 100 cc JR 50 2003
Suzuki 0 - 100 cc JR 50 2004
Suzuki 0 - 100 cc JR 50 2005
Suzuki 0 - 100 cc JR 50 2006
Suzuki 0 - 100 cc JR 50 2007
