AFAM Chain Kit for Suzuki RG 80 Gamma C 85-87 428 R1G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with an appropriate master link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Suzuki RG 80 Gamma C NC11A 1985-1987

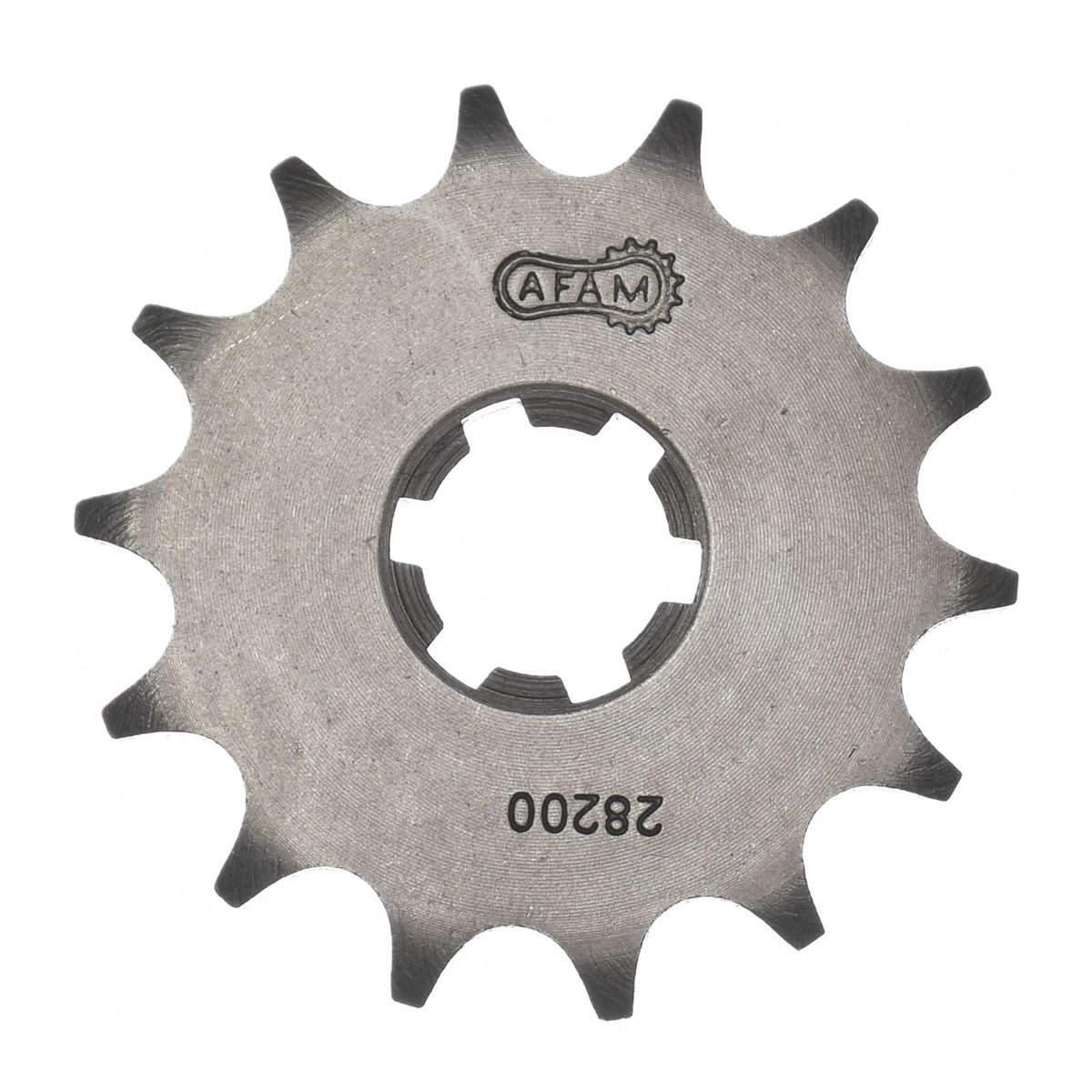

• Front sprocket: AFAM front sprocket #428 15 teeth - a28200.15

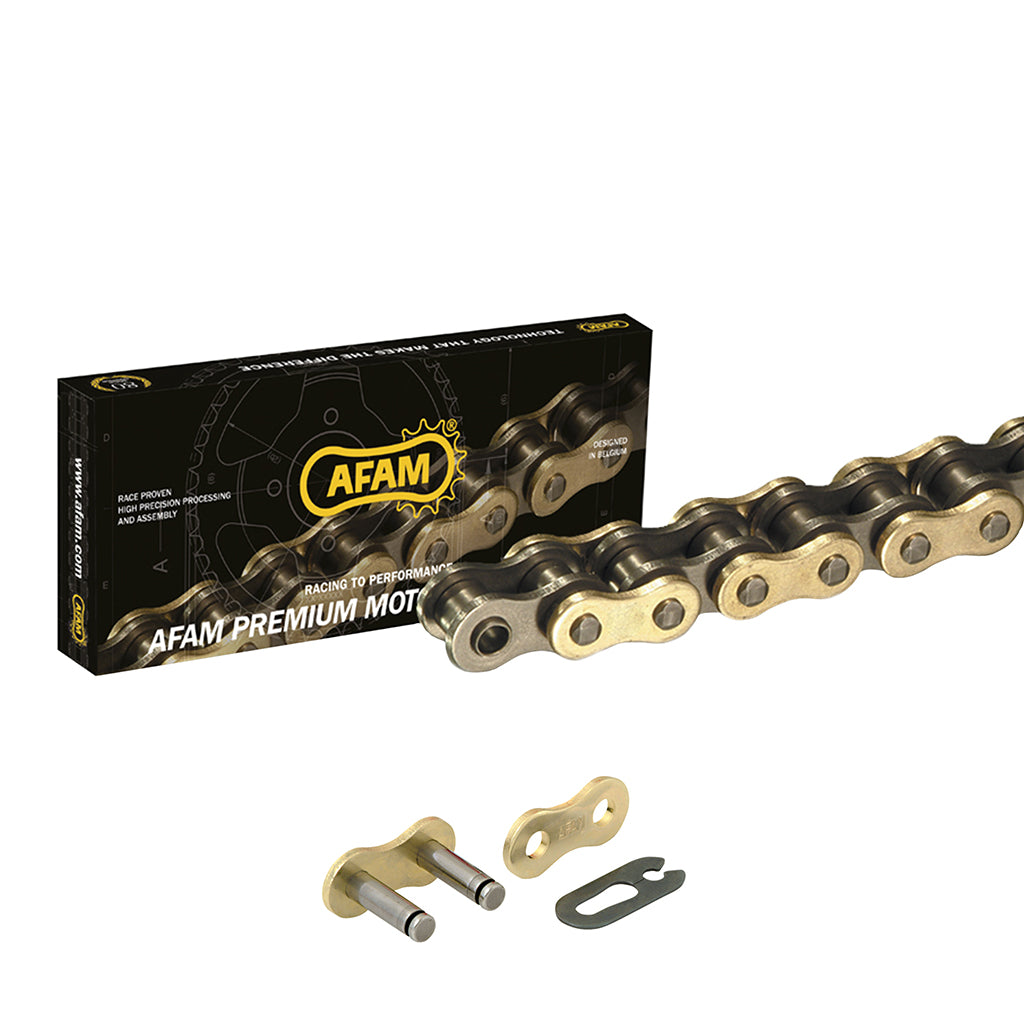

• Chain: AFAM chain 428 R1-G reinforced 130 with clip link - a428r1.g.130
• Rear sprocket: Esjot rear sprocket 14201-49 STEEL #428 49 teeth - a14201.49
• Gear ratio sprocket-chain-rear sprocket: 15-130-49

AFAM 428 R1-G

Lightly reinforced chain
Without O-rings
Color: Gold
Application by displacement: up to 200 cc

Technical data:
Pitch: 428
Pin length: 18.4 mm
Roller Ø: 8.51 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 22.00 kN
Weight per 100 links: 1.01 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Part number	KKF-52494

Fits

Suzuki 0 - 100 ccm RG 80 Gamma C NC11A 1985
Suzuki 0 - 100 ccm RG 80 Gamma C NC11A 1986
Suzuki 0 - 100 ccm RG 80 Gamma C NC11A 1987
