AFAM chain kit for Suzuki RM 125 04-05 520 M chain kit

AFAM Chain Kit for Suzuki RM 125 04-05 520 M Chain Kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Suzuki RM 125 RF16C 2004-2005

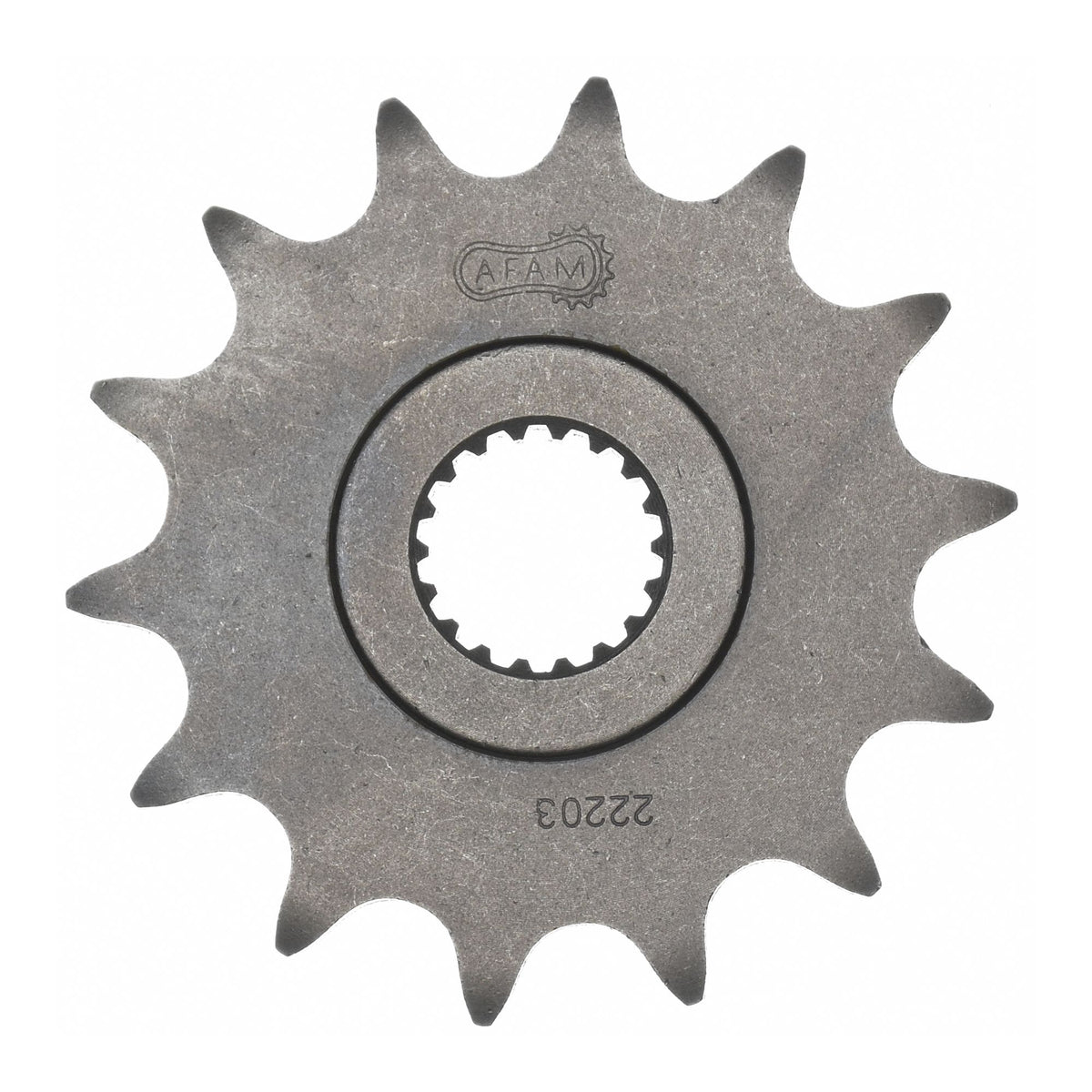

• Front sprocket: AFAM front sprocket #520 12 teeth - a22203.12

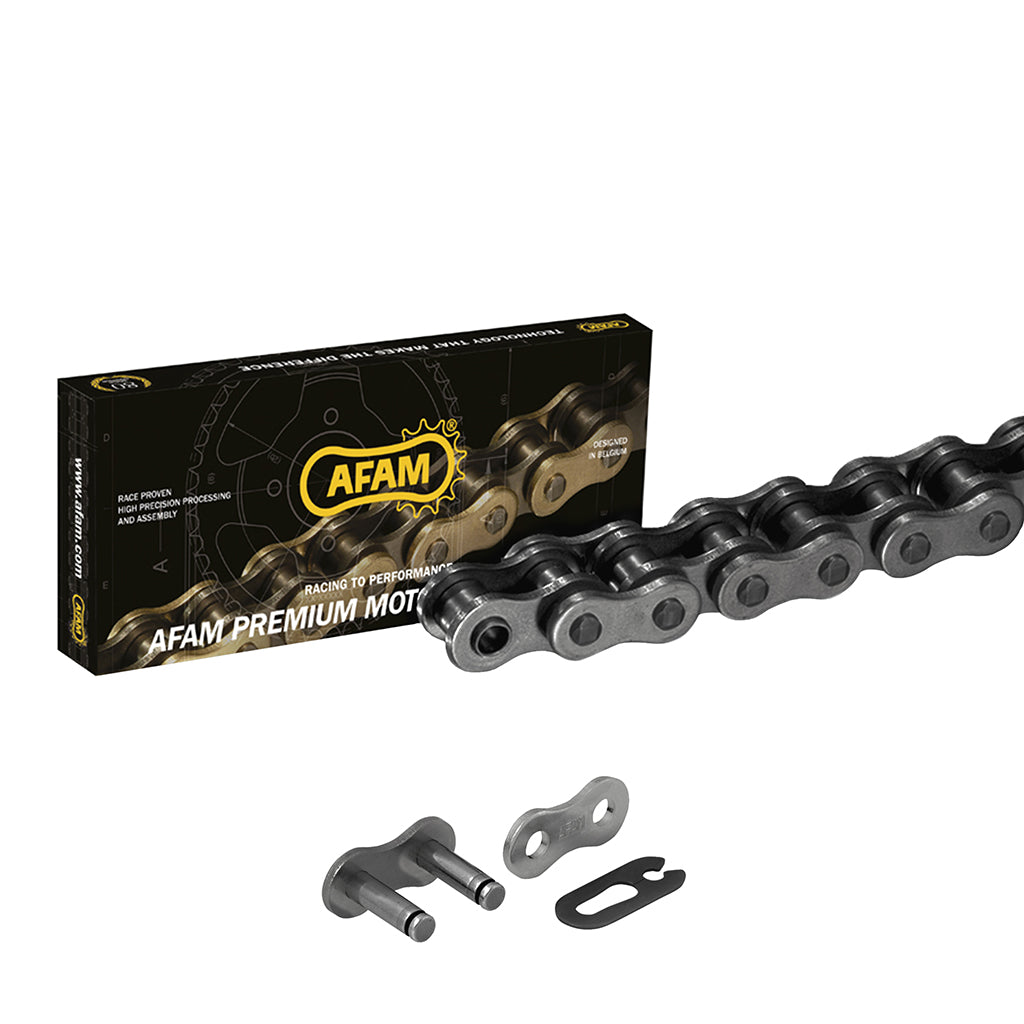

• Chain: AFAM chain 520 M 114 with clip master link - a520m.114

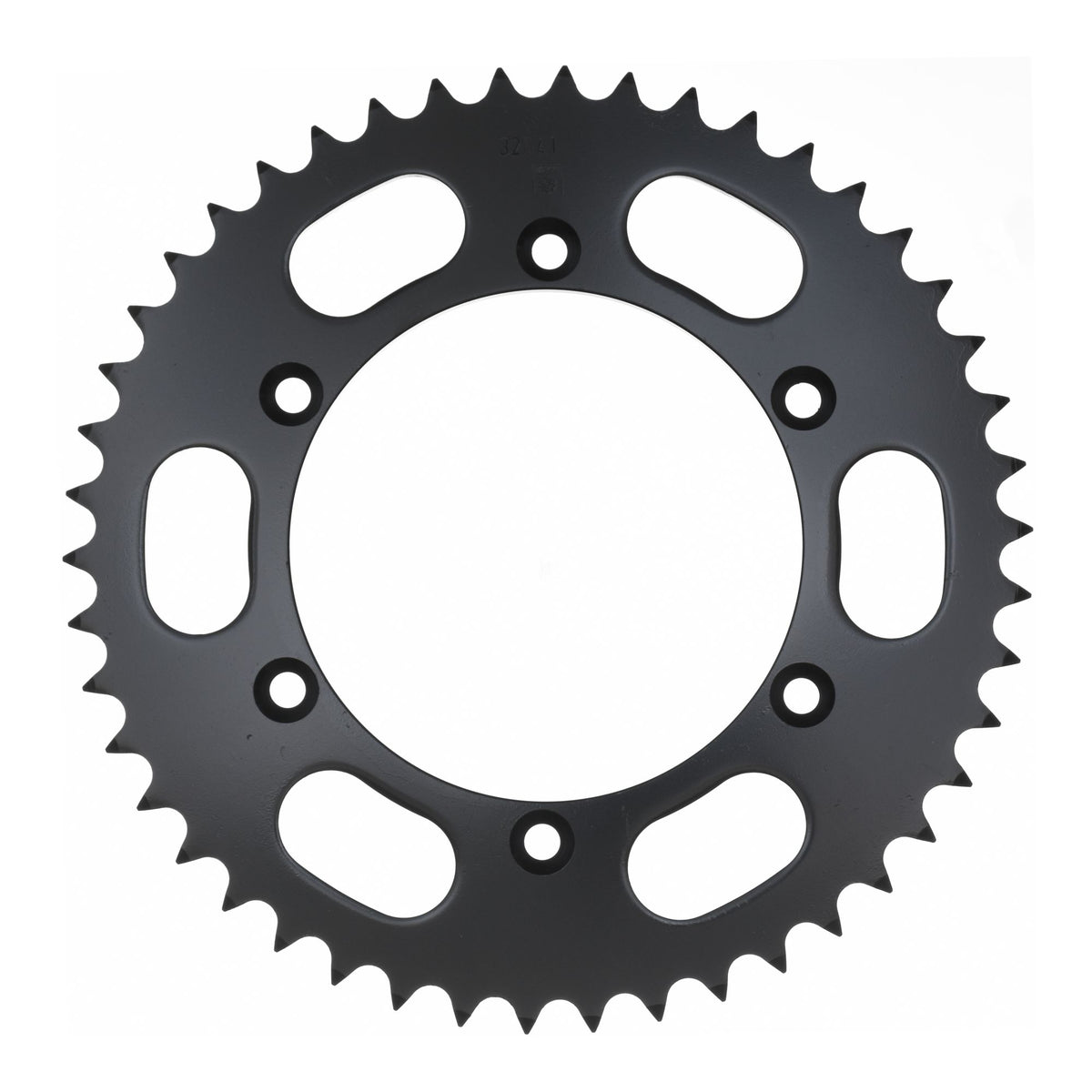

• Rear sprocket: AFAM rear sprocket STEEL #520 50 teeth - a14203.50
• Gear ratio sprocket-chain-rear sprocket: 12-114-50

AFAM 520 M

Affordable and simple standard chain
Without O-rings
Color: Steel
Application by displacement: up to 250 cc / street and offroad

Technical data:
Pitch: 520
Pin length: 16.6 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 31.00 kN
Weight per 100 links: 1.42 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of identifying compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-47834

Fits

Suzuki 101 - 125 cc RM 125 RF16C 2004
Suzuki 101 - 125 cc RM 125 RF16C 2005
