AFAM chain set for Suzuki RM 125 89-91 520 XMR3 chain kit

AFAM chain kit for Suzuki RM 125 89-91 520 XMR3 chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility representation only!

Components of the chain kit Suzuki RM 125 RF14A 1989-1991

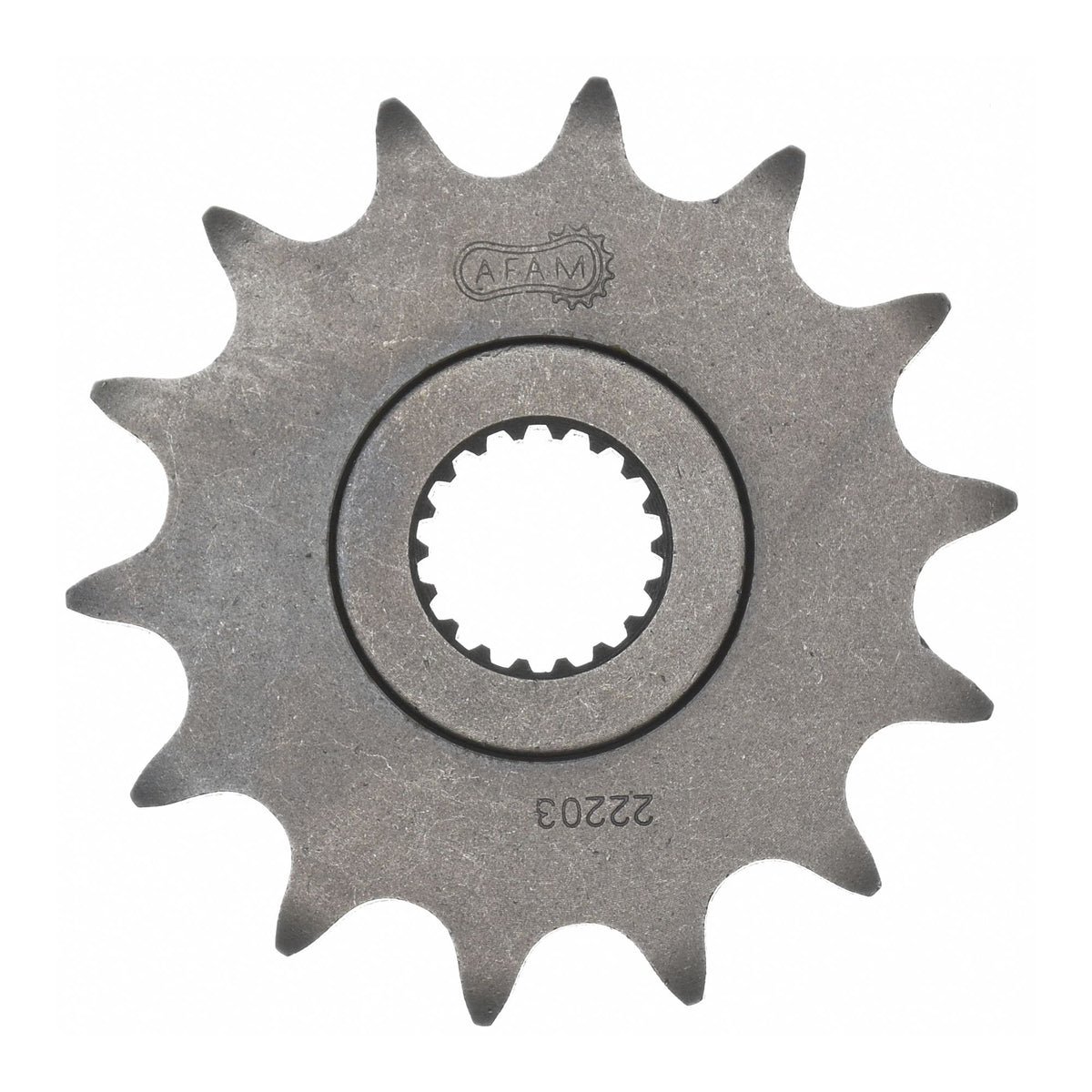

• Sprocket: AFAM sprocket #520 13 teeth - a22203.13
• Chain: AFAM chain 520 XMR3 Xs-ring 114 w. rivet link - a520xmr3.114

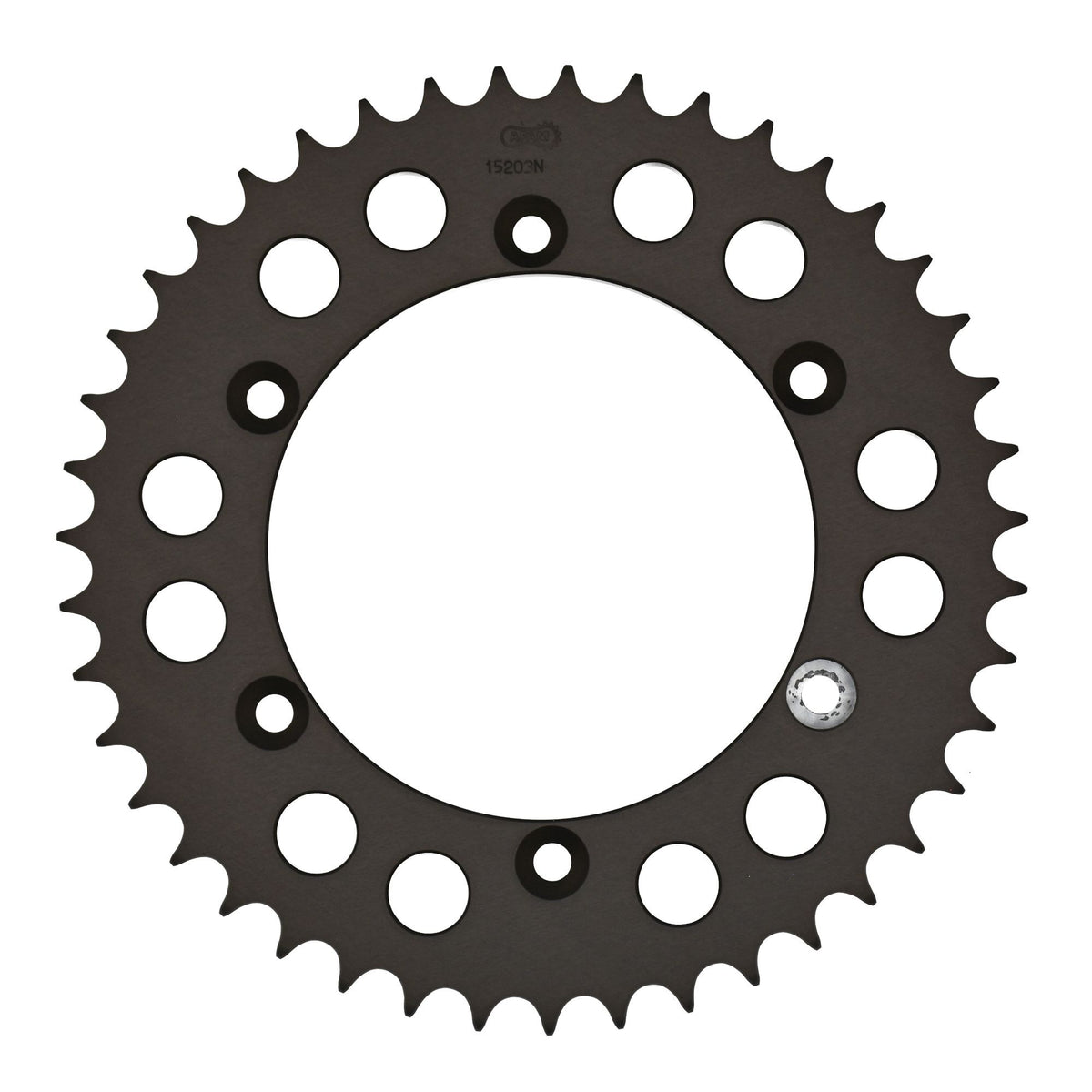

• Rear sprocket: AFAM rear sprocket ALU #520 51 teeth - a15203n.51
• Gear ratio sprocket-chain-rear sprocket: 13-114-51

AFAM 520 XMR3

Reinforced chain with smooth-running properties
Xs-ring chain
Color: Steel
Application by displacement: up to 650 cc / road

Technical data:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-50472

Suitable for

Suzuki 101 - 125 ccm RM 125 RF14A 1989
Suzuki 101 - 125 ccm RM 125 RF14A 1990
Suzuki 101 - 125 ccm RM 125 RF14A 1991
