AFAM chain kit for Suzuki RM 250 04-06 520 XMR3 chain kit

AFAM chain kit for Suzuki RM 250 04-06 520 XMR3 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - Mention of the manufacturer is for compatibility purposes only!

Components of the chain kit Suzuki RM 250 RJ18C 2004-2006

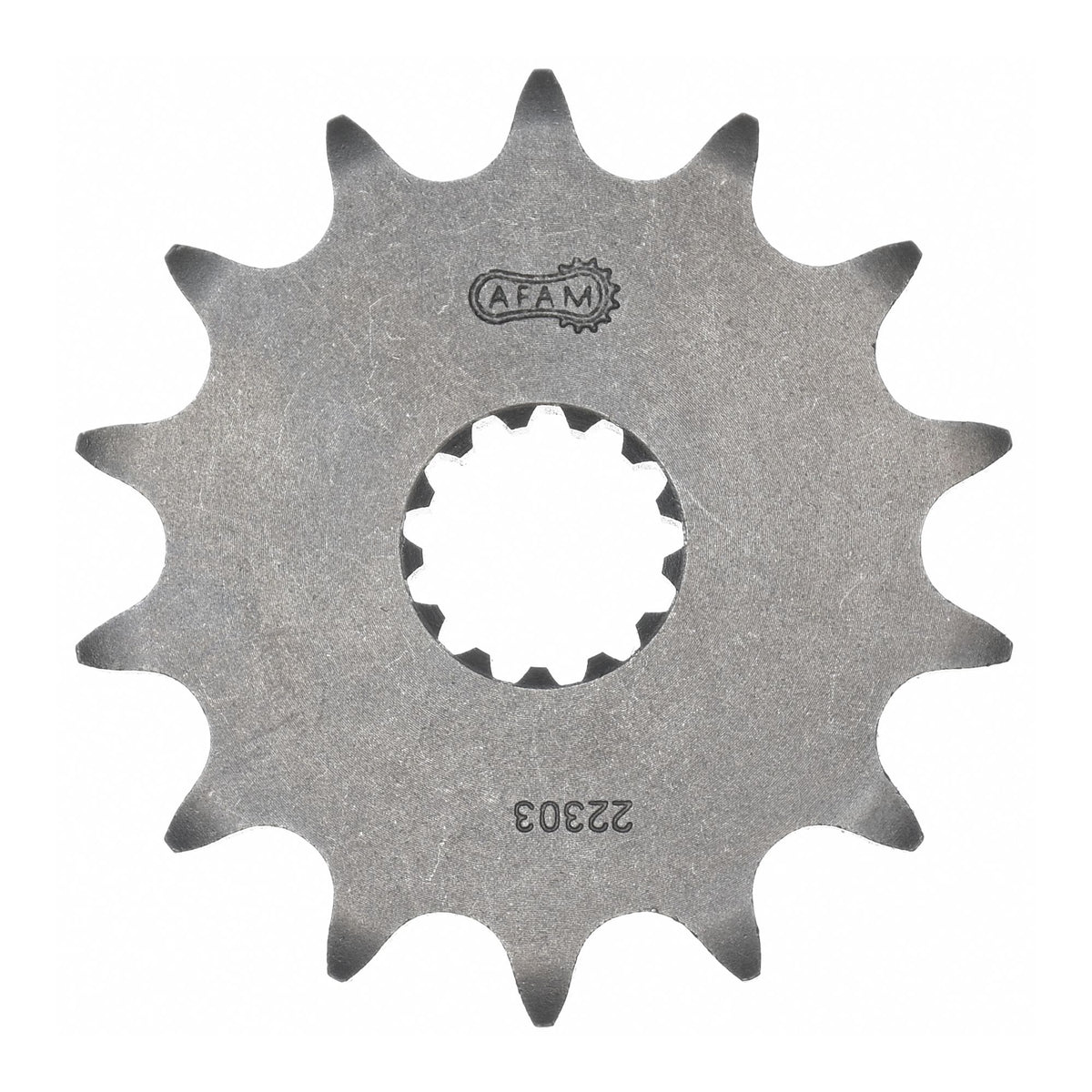

• Front sprocket: AFAM front sprocket #520 13 teeth - a22303.13

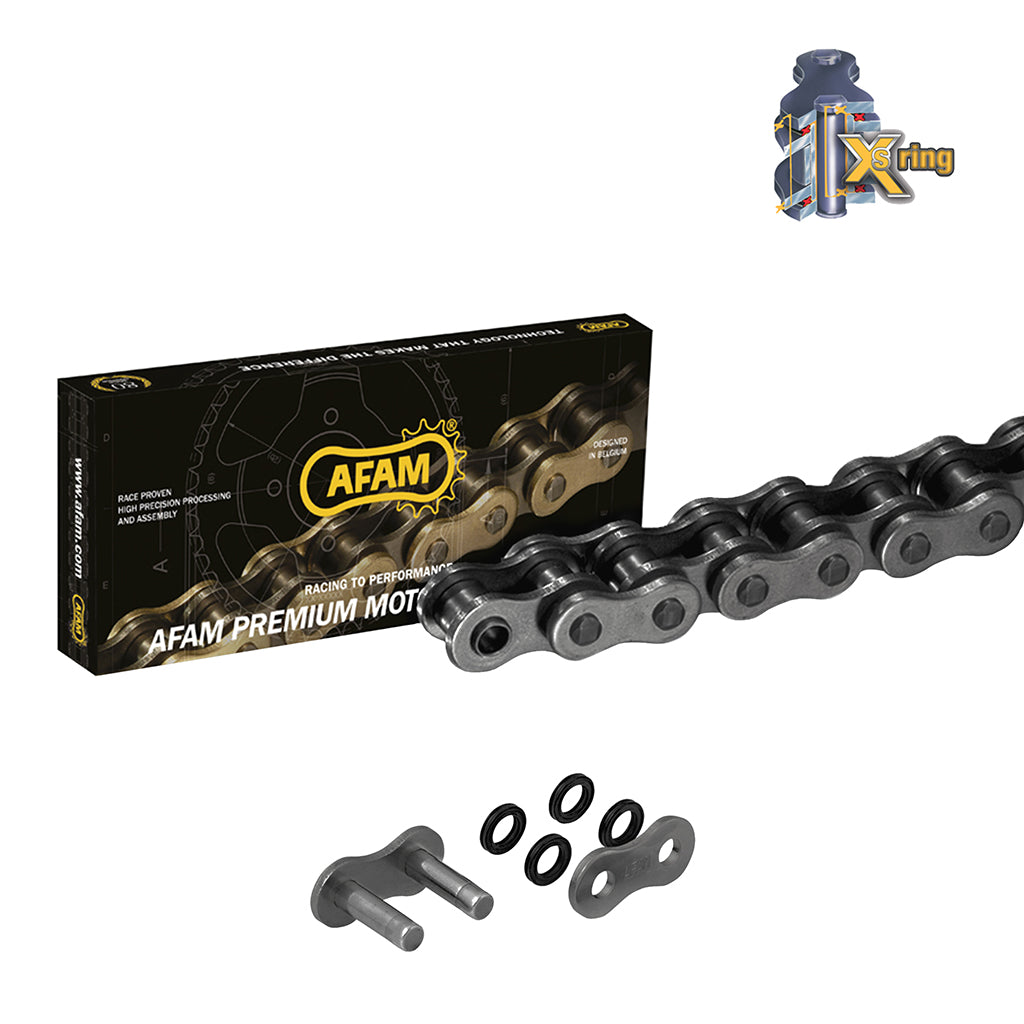

• Chain: AFAM chain 520 XMR3 Xs-Ring 114 w. rivet link - a520xmr3.114

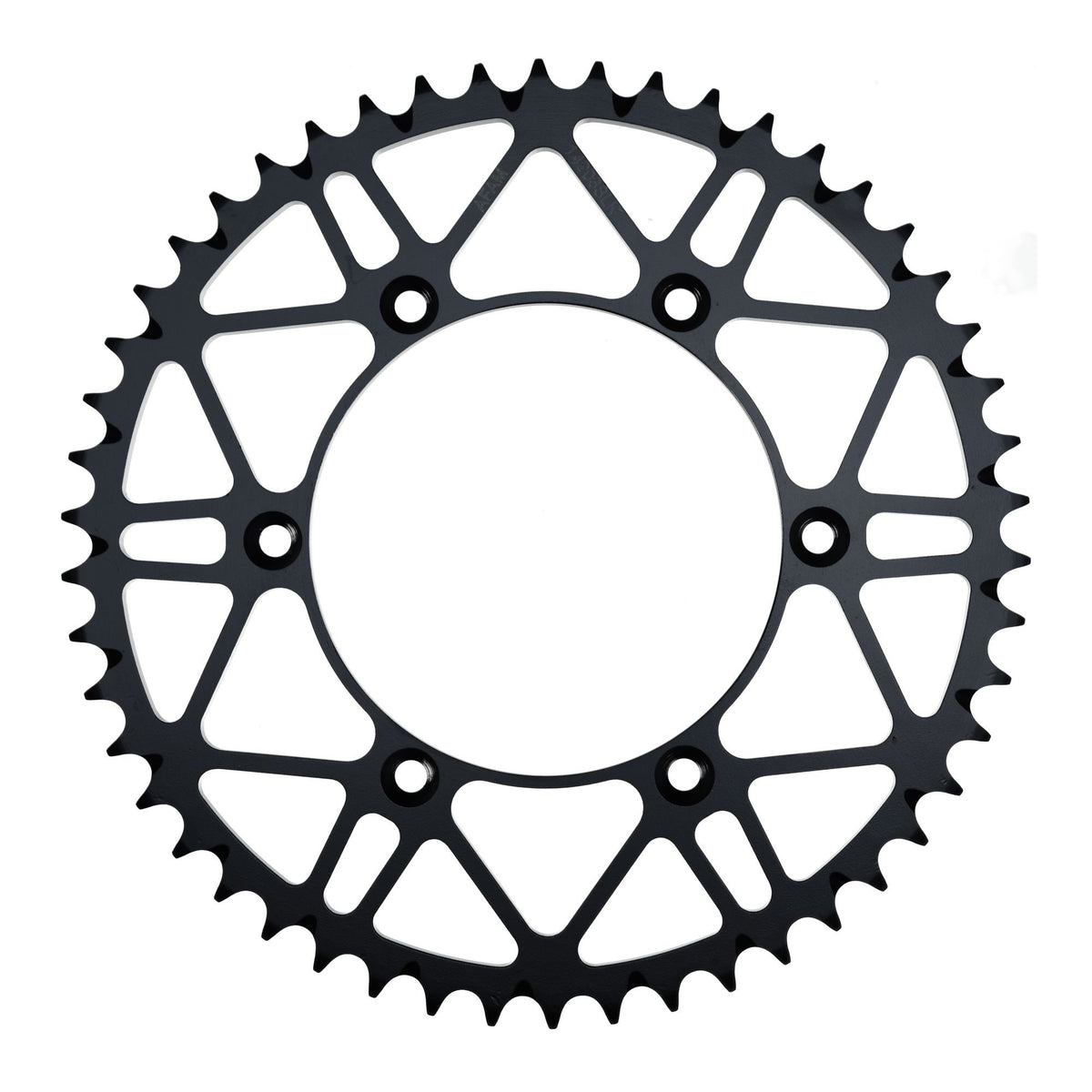

• Rear sprocket: AFAM STEEL rear sprocket #520 w. mud grooves 50 teeth - a14203slk.50
• Gear ratio front sprocket-chain-rear sprocket: 13-114-50

AFAM 520 XMR3

Reinforced chain with low-friction properties
Xs-Ring chain
Color: Steel
Application by displacement: up to 650 cc / road

Technical specifications:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered goods are an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Article number	KKF-44595

Fits

Suzuki 126 - 250 cc RM 250 RJ18C 2004
Suzuki 126 - 250 cc RM 250 RJ18C 2005
Suzuki 126 - 250 cc RM 250 RJ18C 2006
