AFAM chain kit for Suzuki RM 250 07-09 520 XMR3 chain kit

AFAM chain set for Suzuki RM 250 07-09 520 XMR3 chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: No original part - Manufacturer names are used for compatibility purposes only!

Components of the chain kit Suzuki RM 250 RJ18A 2007-2009

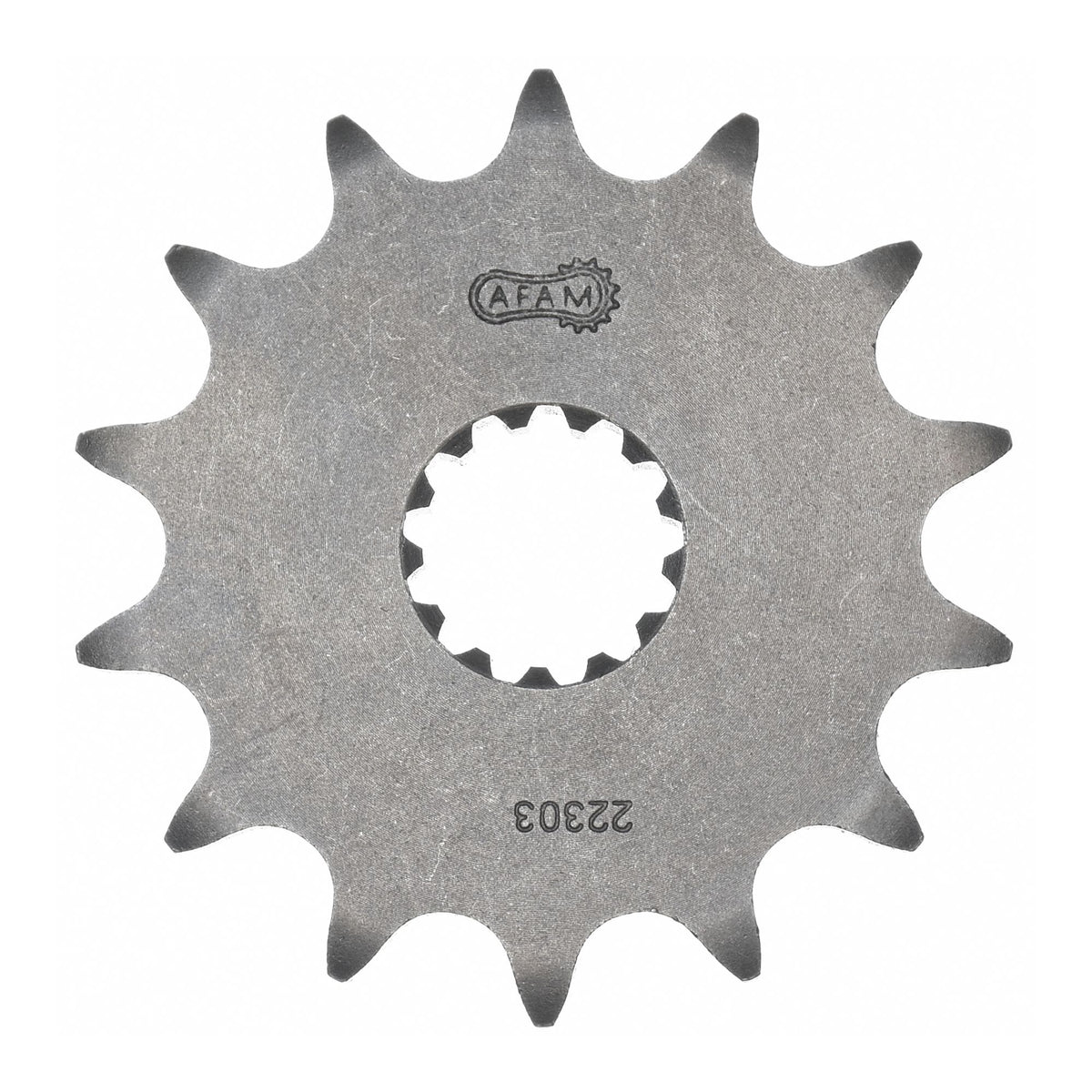

• Sprocket: AFAM sprocket #520 13 teeth - a22303.13
• Chain: AFAM chain 520 XMR3 Xs-ring 114 with rivet link - a520xmr3.114

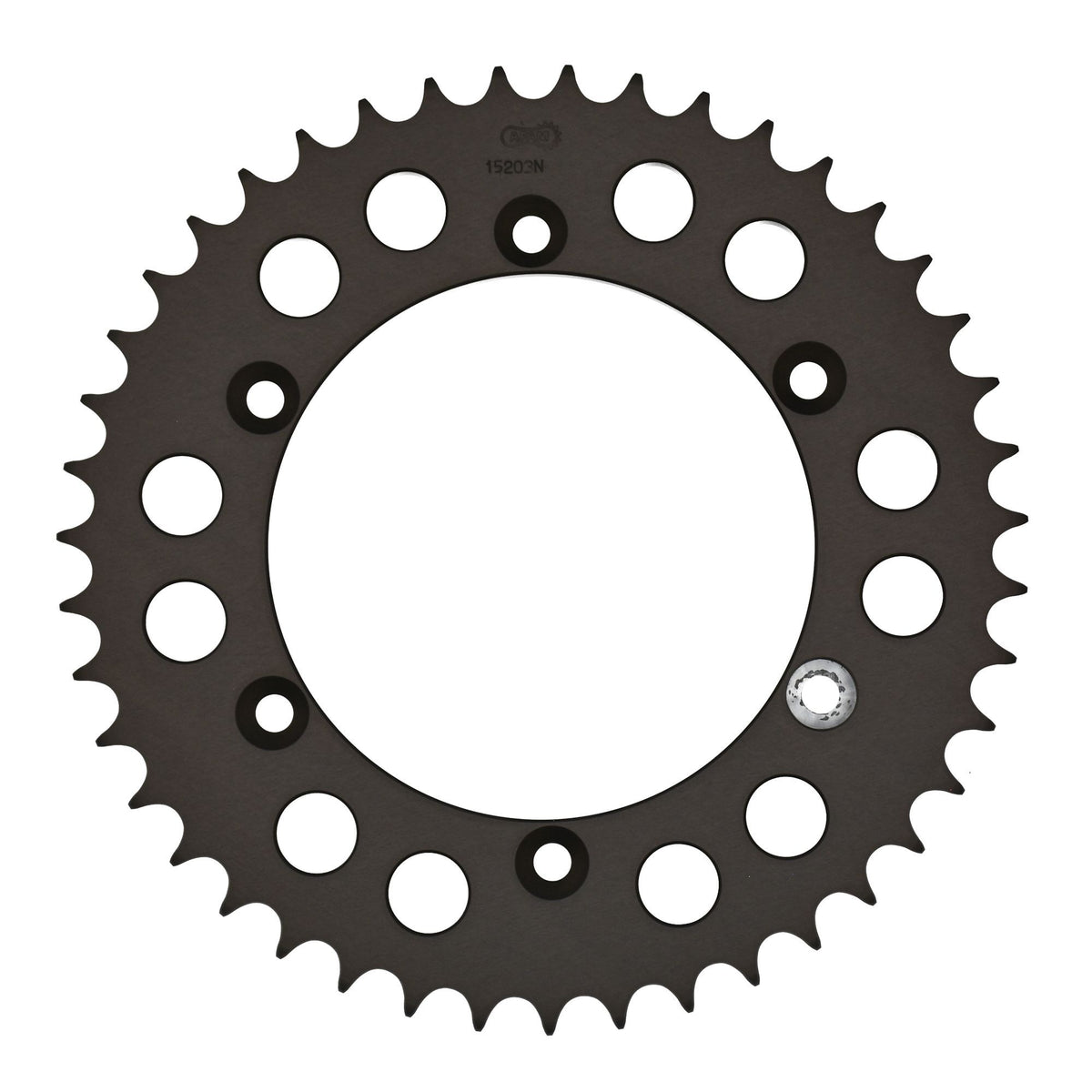

• Chain wheel: AFAM aluminum chain wheel #520 50 teeth - a15203n.50
• Gear ratio sprocket-chain-chain wheel: 13-114-50

AFAM 520 XMR3

Reinforced chain with low-friction properties
Xs-ring chain
Color: Steel
Application by displacement: up to 650 cc / street

Technical specifications:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-41430

Suitable for

Suzuki 126 - 250 cc RM 250 RJ18A 2007
Suzuki 126 - 250 cc RM 250 RJ18A 2008
Suzuki 126 - 250 cc RM 250 RJ18A 2009
