AFAM chain kit for Suzuki RM 85 (17/14 inch) 02-13 428 R1G chain kit

AFAM Chain Kit for Suzuki RM 85 (17/14 inch) 02-13 428 R1G Chain Kit

Chain kit or chain set for the specified model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility identification only!

Components of the chain kit Suzuki RM 85 (17/14 inch) RD16C 2002-2013

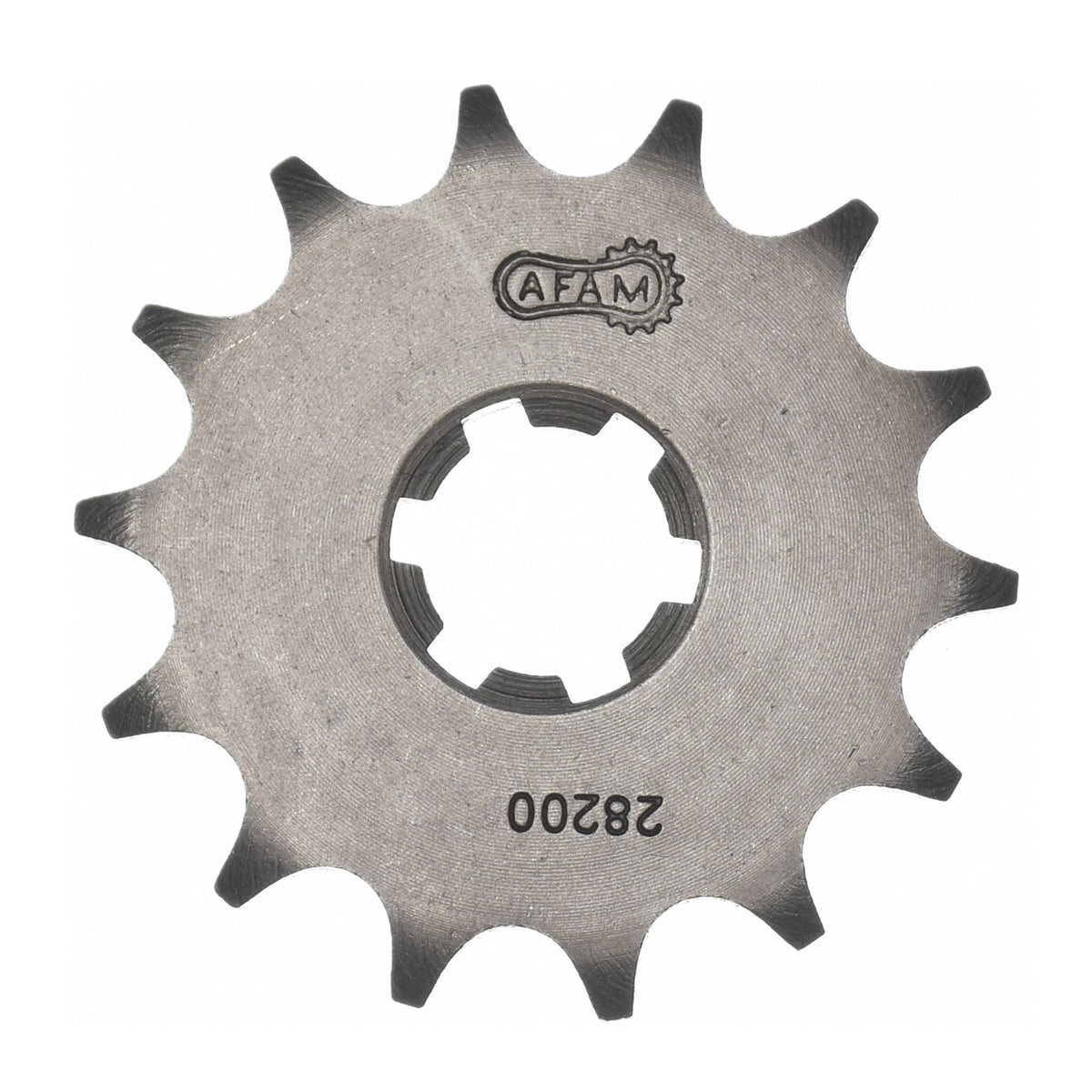

• Front sprocket: AFAM front sprocket #428 14 teeth - a28200.14
• Chain: AFAM chain 428 R1-G reinforced 118 with clip link - a428r1.g.118

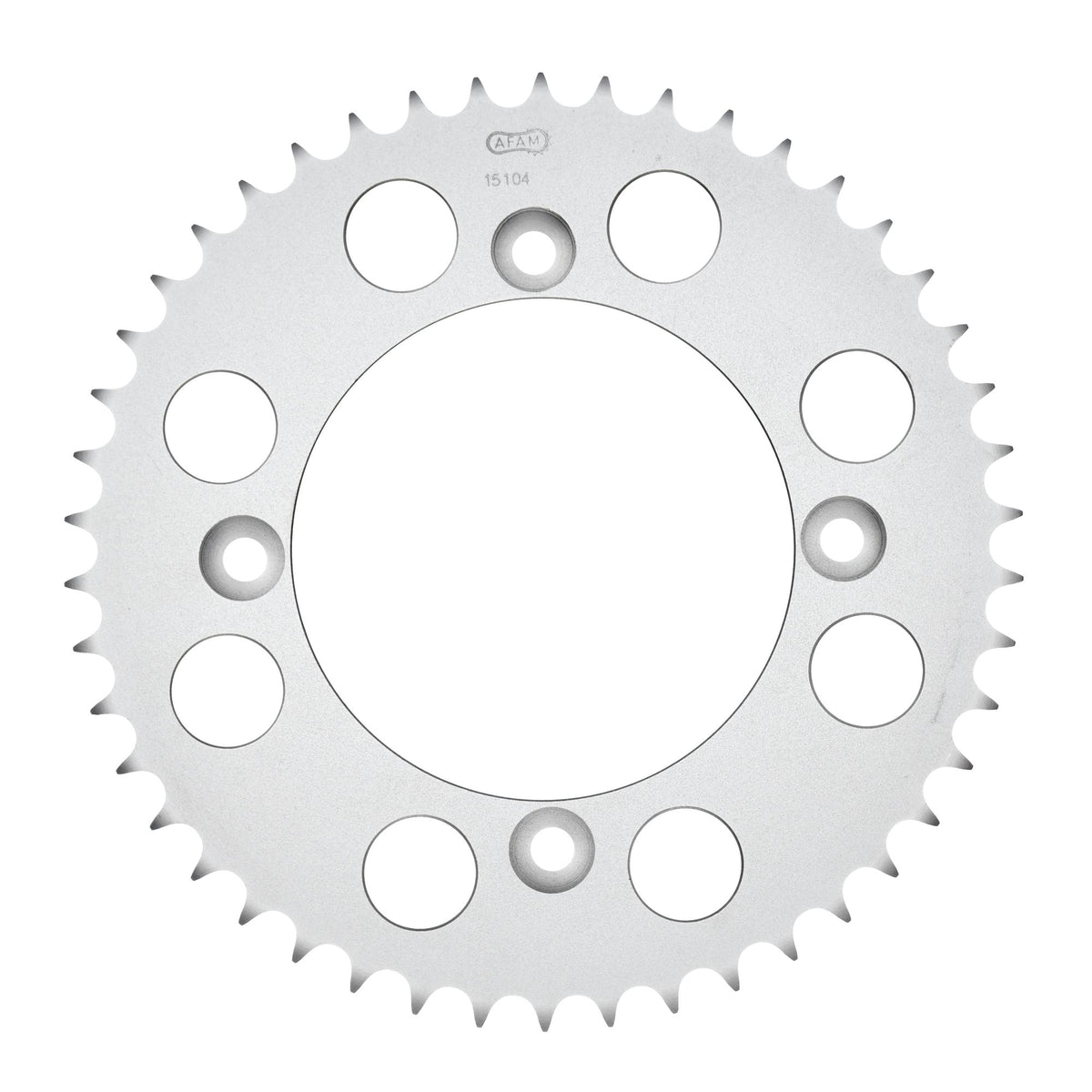

• Rear sprocket: AFAM sprocket ALU #428 47 teeth - a15104n.47
• Gear ratio sprocket-chain-rear sprocket: 14-118-47

AFAM 428 R1-G

Lightly reinforced chain
Without O-rings
Color: Gold
Application by displacement: up to 200 cc

Technical data:
Pitch: 428
Pin length: 18.4 mm
Roller Ø: 8.51 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 22.00 kN
Weight per 100 links: 1.01 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-52509

Suitable for

Suzuki 0 - 100 cc RM 85 (17/14 inch) RD16C 2002
Suzuki 0 - 100 cc RM 85 (17/14 inch) RD16C 2003
Suzuki 0 - 100 cc RM 85 (17/14 inch) RD16C 2004
Suzuki 0 - 100 cc RM 85 (17/14 inch) RD16C 2005
Suzuki 0 - 100 cc RM 85 (17/14 inch) RD16C 2006
Suzuki 0 - 100 cc RM 85 (17/14 inch) RD16C 2007
Suzuki 0 - 100 cc RM 85 (17/14 inch) RD16C 2008
Suzuki 0 - 100 cc RM 85 (17/14 inch) RD16C 2009
Suzuki 0 - 100 cc RM 85 (17/14 inch) RD16C 2010
Suzuki 0 - 100 cc RM 85 (17/14 inch) RD16C 2011
Suzuki 0 - 100 cc RM 85 (17/14 inch) RD16C 2012
Suzuki 0 - 100 cc RM 85 (17/14 inch) RD16C 2013
