AFAM chain kit for Suzuki RM-Z 250 10-12 520 XSRG chain kit

AFAM chain set for Suzuki RM-Z 250 10-12 520 XSRG chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the Suzuki RM-Z 250 RJ42A 2010-2012 chain kit

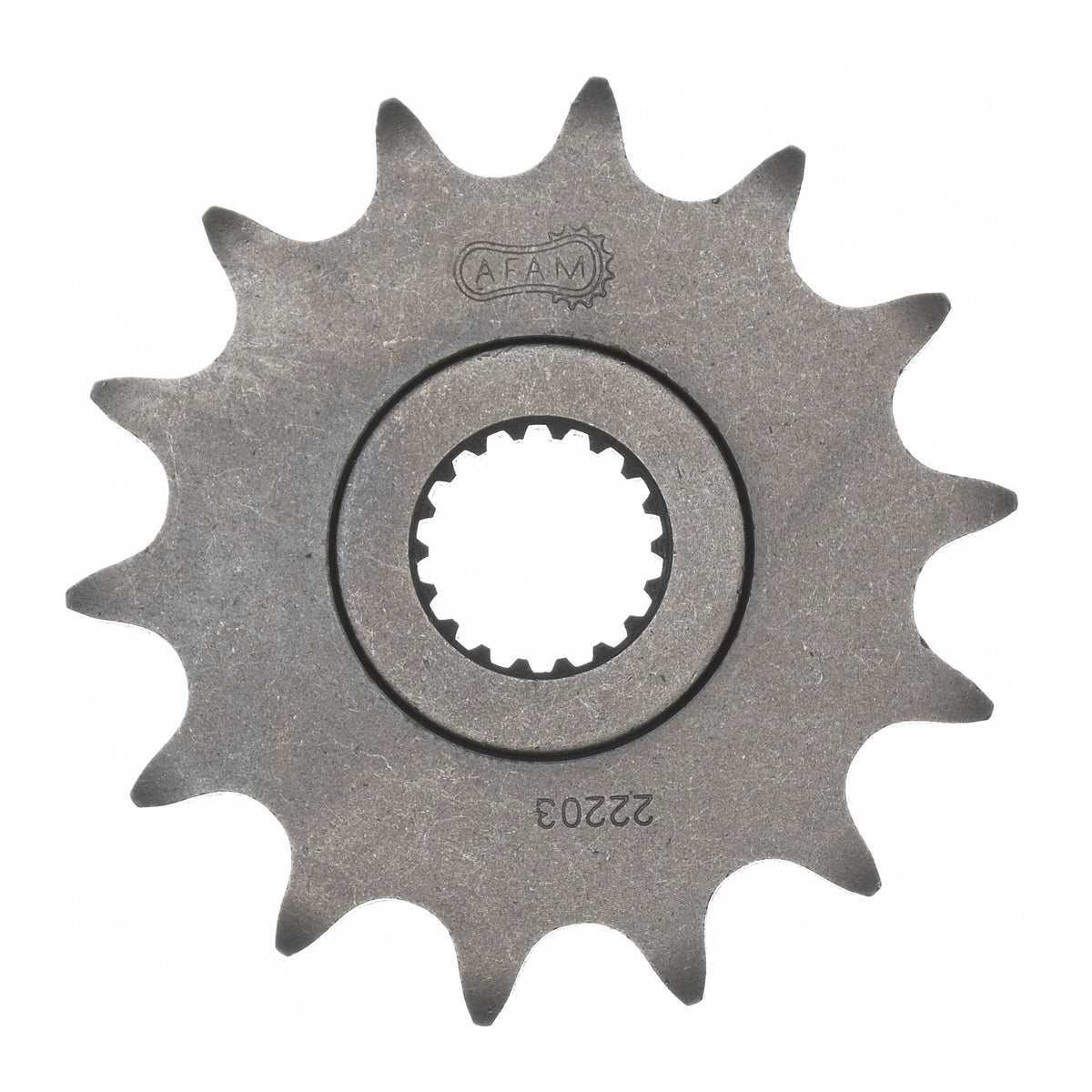

• Sprocket: AFAM sprocket #520 13 teeth - a22203.13
• Chain: AFAM chain 520 XSR-G Xs-Ring 114 with rivet link - a520xsr.g.114

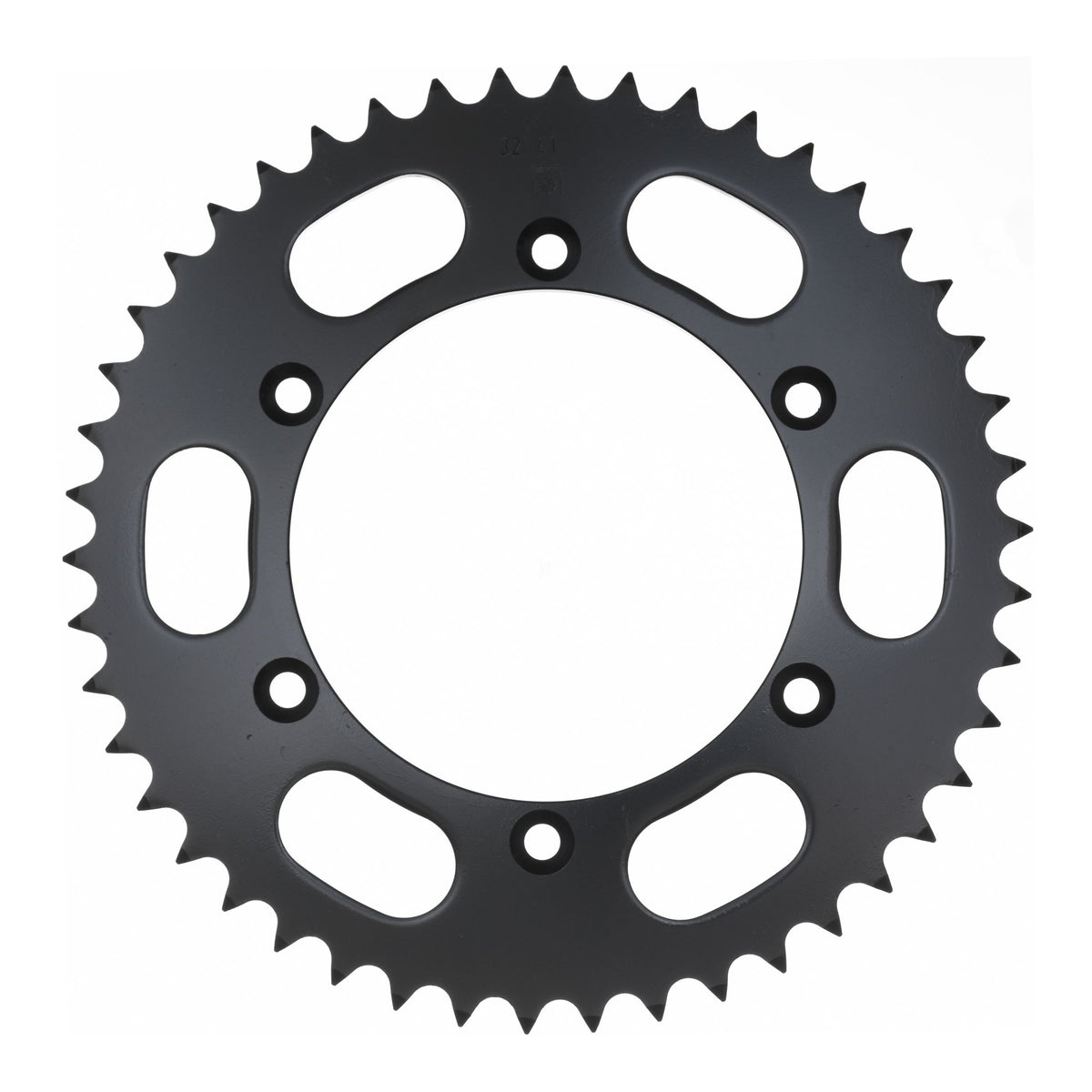

• Rear sprocket: AFAM STEEL rear sprocket #520 49 teeth - a14203.49
• Gear ratio sprocket-chain-rear sprocket: 13-114-49

AFAM 520 XSR-G

Super reinforced chain with smooth-running properties
Xs-Ring chain
Color: Gold
Application by displacement: up to 800 cc / road, sport and off-road

Technical data:
Pitch: 520
Pin length: 20.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 36.30 kN
Weight per 100 links: 1.58 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is exclusively for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-44810

Suitable for

Suzuki 126 - 250 cc RM-Z 250 RJ42A 2010
Suzuki 126 - 250 cc RM-Z 250 RJ42A 2011
Suzuki 126 - 250 cc RM-Z 250 RJ42A 2012
