AFAM chain kit for Suzuki RM-Z 250 13-18 520 XSRG chain kit

AFAM chain kit for Suzuki RM-Z 250 13-18 520 XSRG chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a matching master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Suzuki RM-Z 250 RJ42A 2013-2018

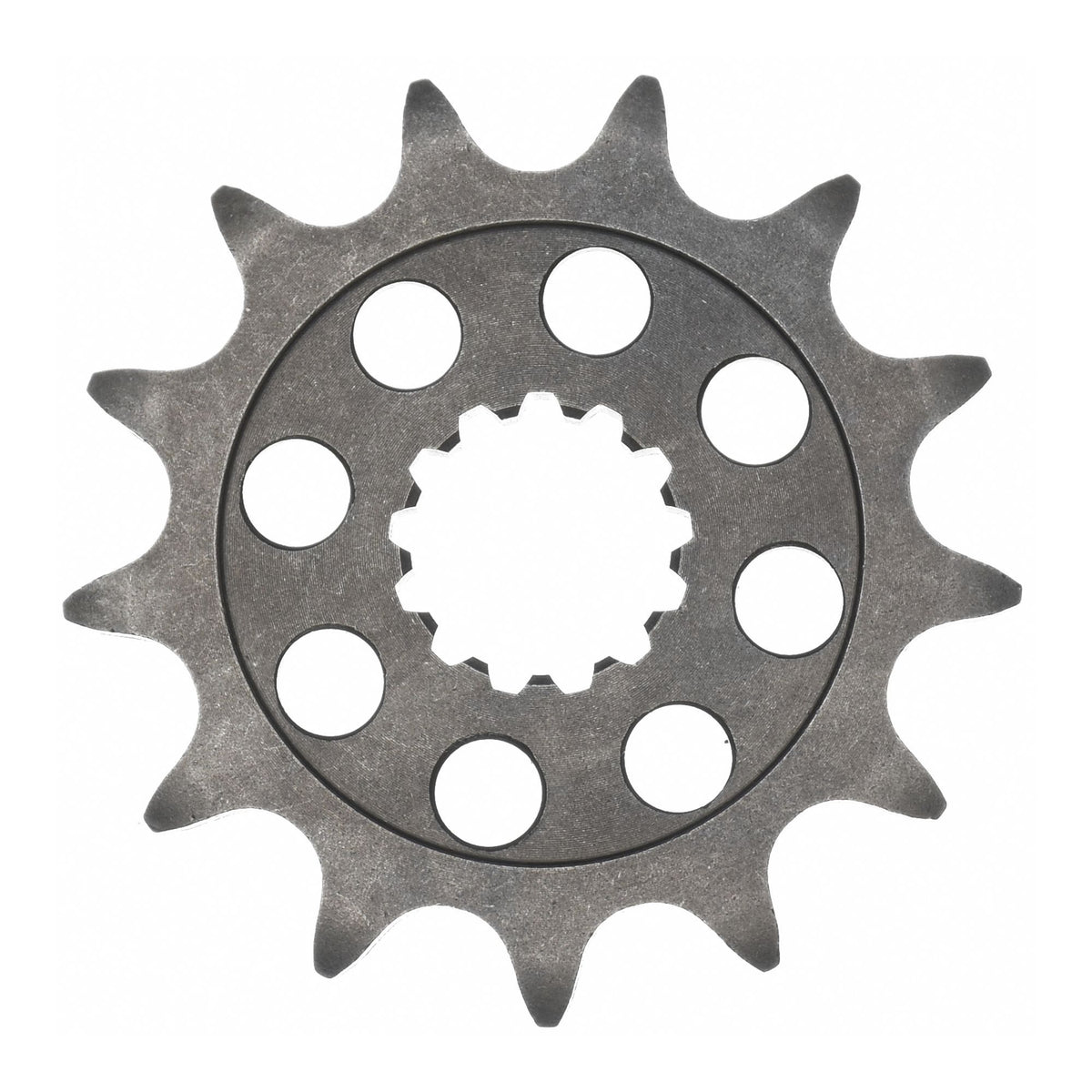

• Front sprocket: AFAM front sprocket #520 Sport for RM-Z250 13 13 teeth - a22311.13
• Chain: AFAM chain 520 XSR-G Xs-ring 114 w. rivet master link - a520xsr.g.114

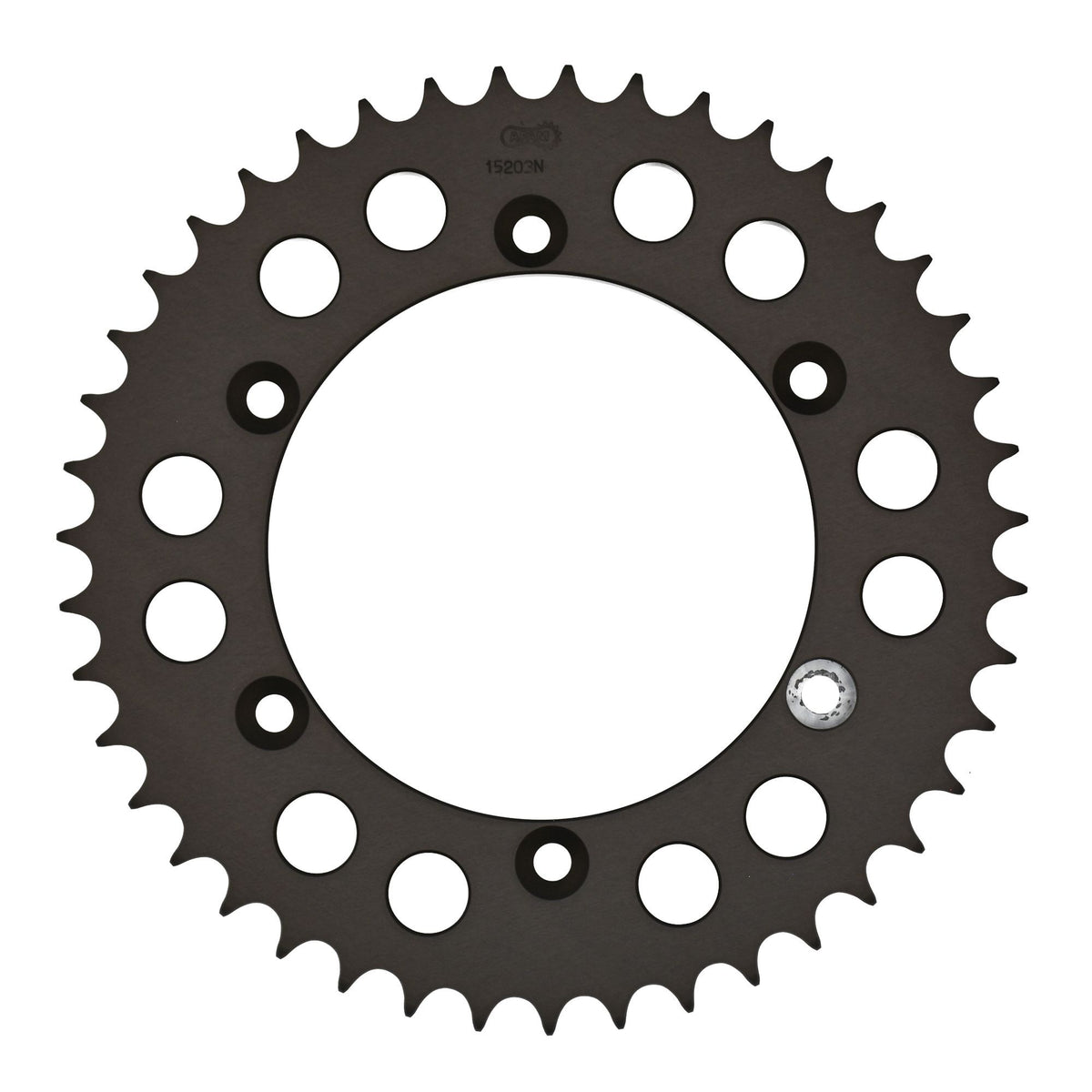

• Rear sprocket: AFAM rear sprocket ALU #520 49 teeth - a15203n.49
• Transmission ratio front sprocket-chain-rear sprocket: 13-114-49

AFAM 520 XSR-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 800 cc / road, sport, and offroad

Technical specifications:
Pitch: 520
Pin length: 20.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 36.30 kN
Weight per 100 links: 1.58 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is exclusively for the determination of compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-48172

Suitable for

Suzuki 126 - 250 cc RM-Z 250 RJ42A 2013
Suzuki 126 - 250 cc RM-Z 250 RJ42A 2014
Suzuki 126 - 250 cc RM-Z 250 RJ42A 2015
Suzuki 126 - 250 cc RM-Z 250 RJ42A 2016
Suzuki 126 - 250 cc RM-Z 250 RJ42A 2017
Suzuki 126 - 250 cc RM-Z 250 RJ42A 2018
