AFAM chain kit for Suzuki RM-Z 250 2022 520 MR2G chain kit

AFAM chain kit for Suzuki RM-Z 250 2022 520 MR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless stated otherwise: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the Suzuki RM-Z 250 2022-2022 chain kit

• Front sprocket: Esjot front sprocket 22309-13 #520 Sport 13 teeth - a22309s.13
• Chain: AFAM chain 520 MR2-G with clip connecting link - a520mr2.g.114

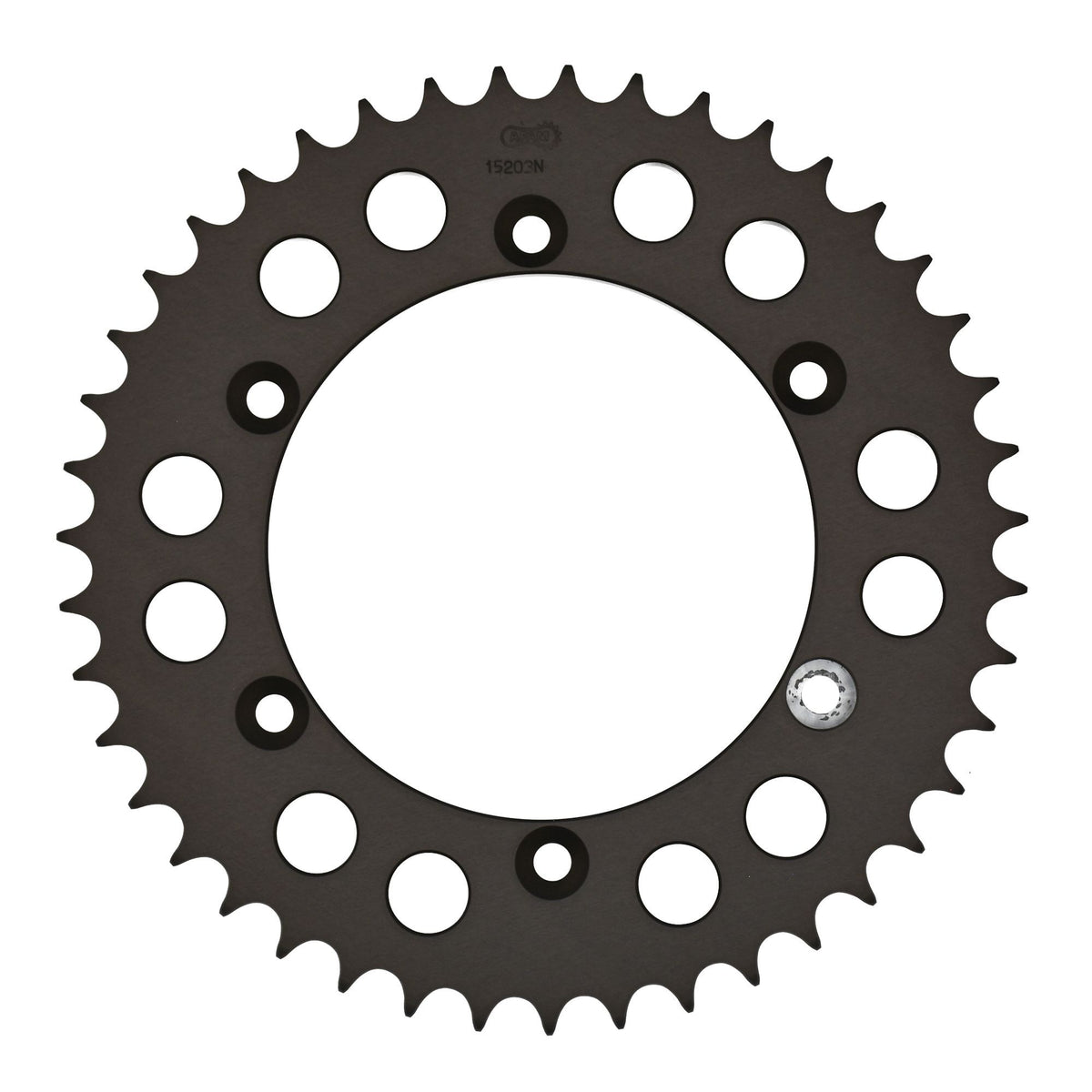

• Rear sprocket: AFAM rear sprocket ALU #520 50 teeth - a15203n.50
• Gear ratio front sprocket-chain-rear sprocket: 13-114-50

AFAM 520 MR2-G

Reinforced chain
Without O-rings
Color: Gold
Application by displacement: up to 250 cc / street, off-road, and motocross

Technical data:
Pitch: 520
Pin length: 18.9 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 34.30 kN
Weight per 100 links: 1.64 kg

Unless stated otherwise: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mentioning the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Part number	KKF-48069

Fits

Suzuki 126 - 250 cc RM-Z 250 2022
