AFAM chain kit for Suzuki RM-Z 450 08-14 520 MR2G chain kit

AFAM chain kit for Suzuki RM-Z 450 08-14 520 MR2G chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

Components of the chain kit for Suzuki RM-Z 450 RL42A 2008-2014

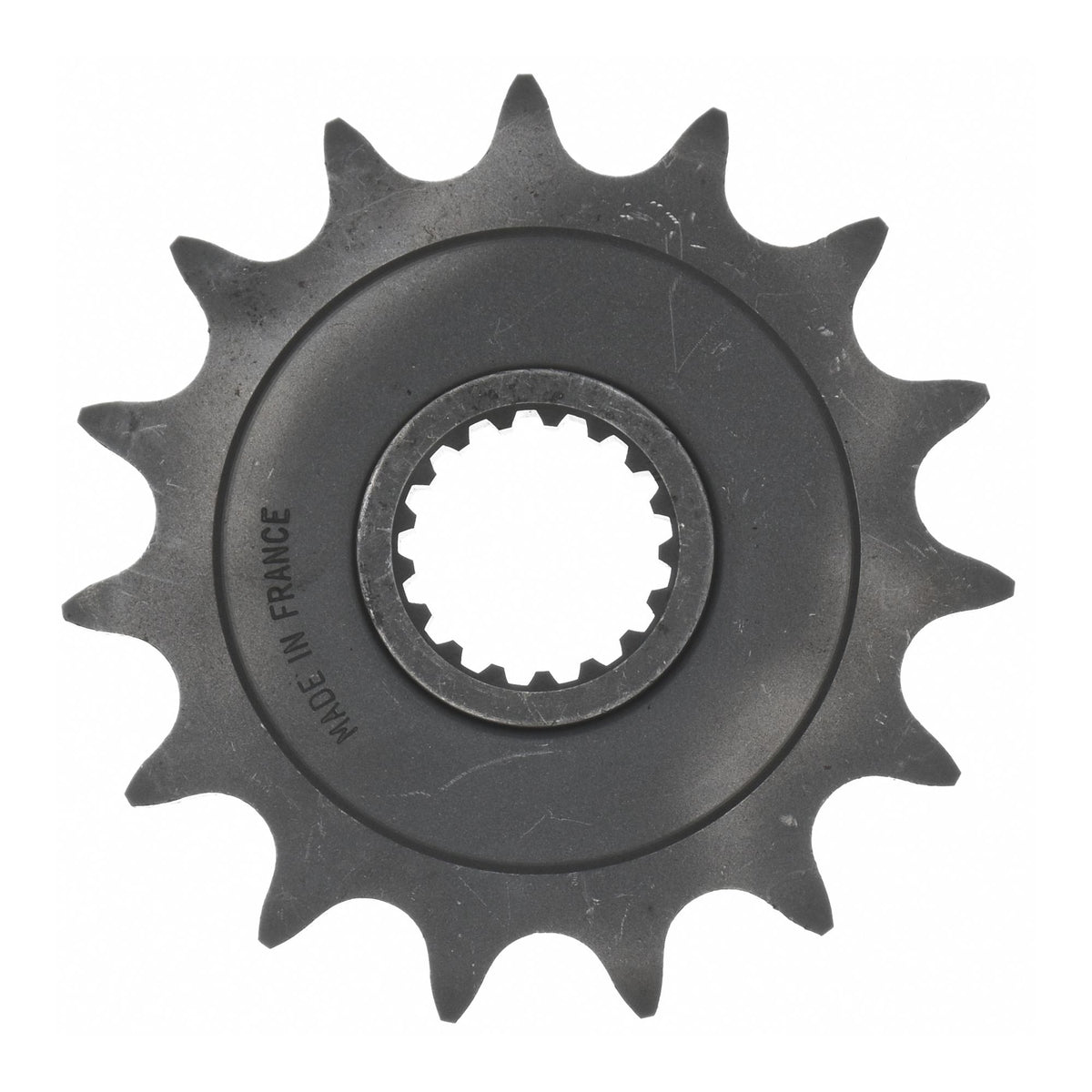

• Front sprocket: AFAM sprocket #520 for RM-Z450 05- 13 teeth - a22406.13
• Chain: AFAM chain 520 MR2-G w. clip master link - a520mr2.g.114

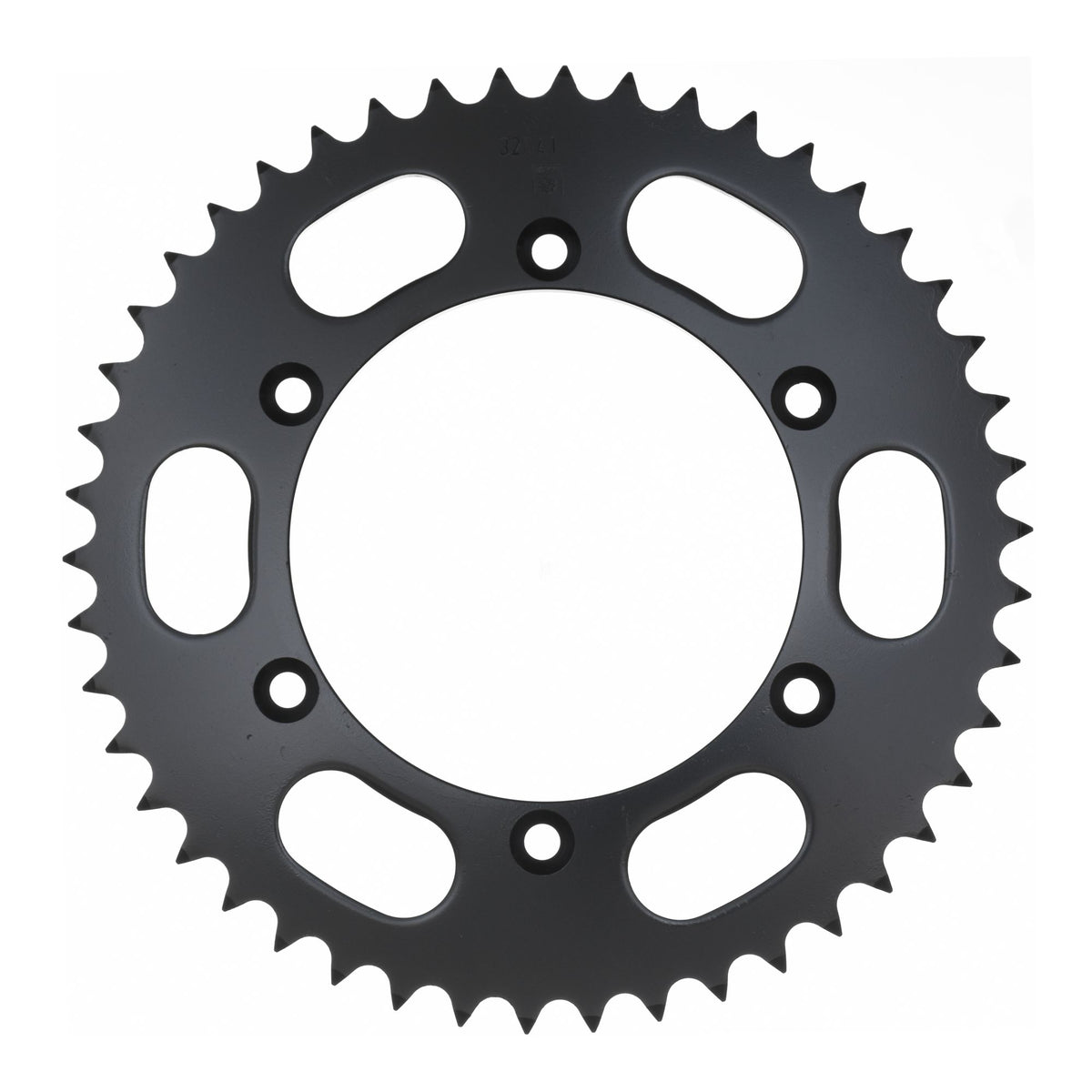

• Rear sprocket: AFAM rear sprocket STEEL #520 50 teeth - a14203.50
• Gear ratio sprocket-chain-rear sprocket: 13-114-50

AFAM 520 MR2-G

Reinforced chain
Non-sealed
Color: Gold
Application by displacement: up to 250 cc / road, off-road and motocross

Technical data:
Pitch: 520
Pin length: 18.9 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 34.30 kN
Weight per 100 links: 1.64 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-51956

Fits

Suzuki 251 - 500 cc RM-Z 450 RL42A 2008
Suzuki 251 - 500 cc RM-Z 450 RL42A 2009
Suzuki 251 - 500 cc RM-Z 450 RL42A 2010
Suzuki 251 - 500 cc RM-Z 450 RL42A 2011
Suzuki 251 - 500 cc RM-Z 450 RL42A 2012
Suzuki 251 - 500 cc RM-Z 450 RL42A 2013
Suzuki 251 - 500 cc RM-Z 450 RL42A 2014
