AFAM chain kit for Suzuki RM-Z 450 08-14 520 XMR3 chain kit

AFAM chain kit for Suzuki RM-Z 450 08-14 520 XMR3 chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the Suzuki RM-Z 450 RL42A 2008-2014 chain kit

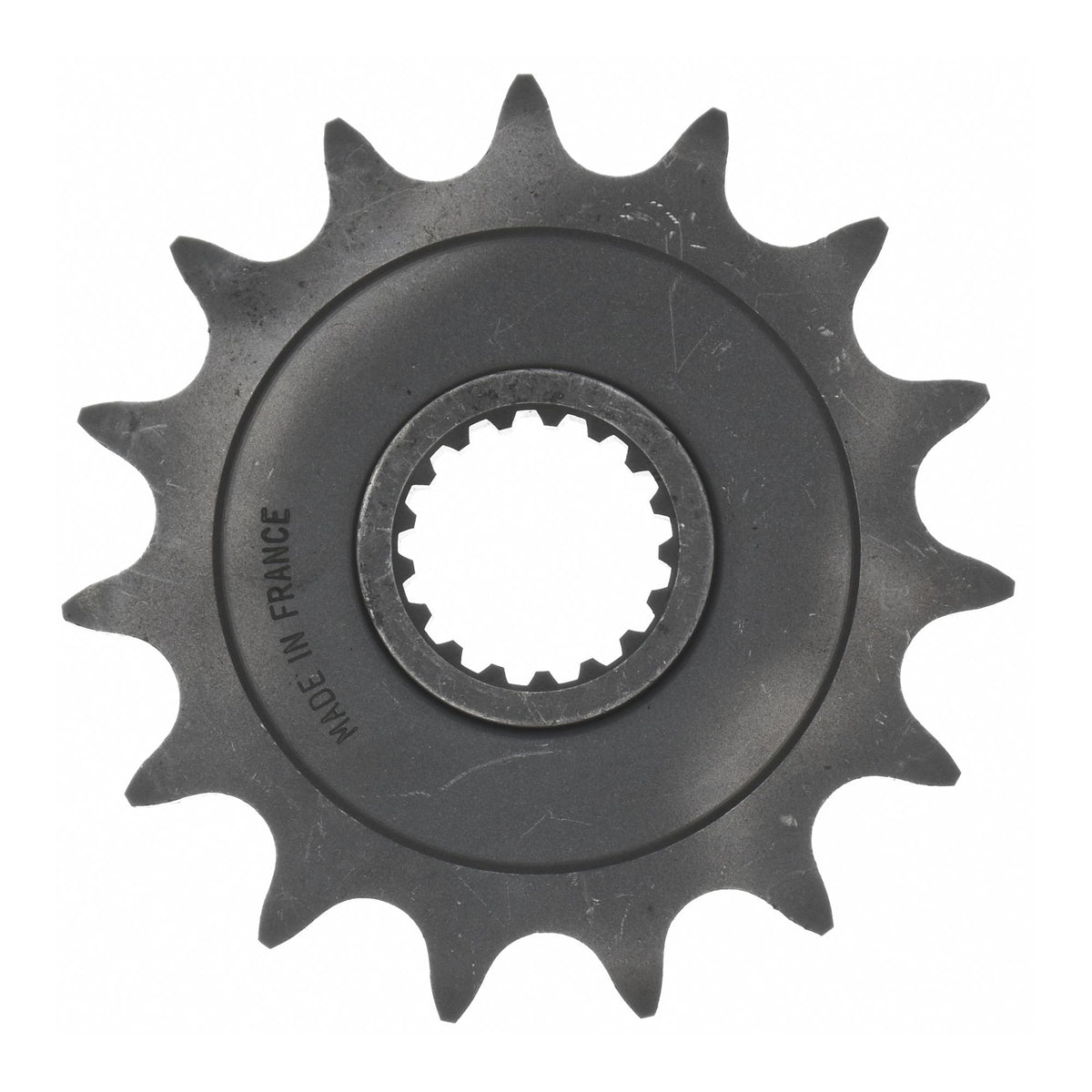

• Front sprocket: AFAM front sprocket #520 for RM-Z450 05- 13 teeth - a22406.13
• Chain: AFAM chain 520 XMR3 Xs-ring 114 w. rivet link - a520xmr3.114

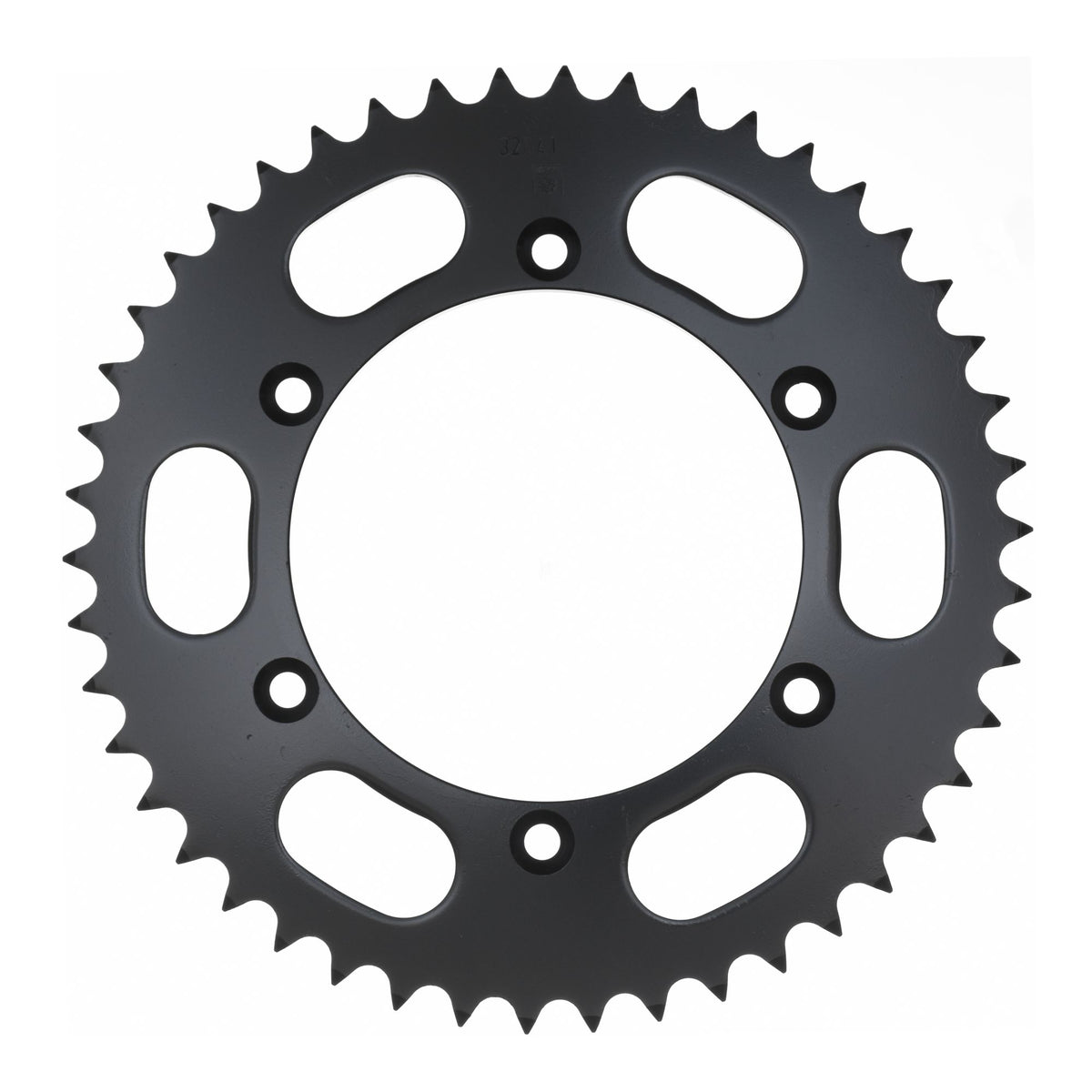

• Rear sprocket: AFAM STEEL rear sprocket #520 50 teeth - a14203.50
• Gear ratio front sprocket-chain-rear sprocket: 13-114-50

AFAM 520 XMR3

Reinforced chain with smooth-running properties
Xs-ring chain
Color: Steel
Application by displacement: up to 650 cc / street

Technical data:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand is exclusively for the determination of compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-15846

Fits

Suzuki 251 - 500 cc RM-Z 450 RL42A 2008
Suzuki 251 - 500 cc RM-Z 450 RL42A 2009
Suzuki 251 - 500 cc RM-Z 450 RL42A 2010
Suzuki 251 - 500 cc RM-Z 450 RL42A 2011
Suzuki 251 - 500 cc RM-Z 450 RL42A 2012
Suzuki 251 - 500 cc RM-Z 450 RL42A 2013
Suzuki 251 - 500 cc RM-Z 450 RL42A 2014
