AFAM chain kit for Suzuki RM-Z 450 15-17 520 MX6GG chain kit

AFAM chain kit for Suzuki RM-Z 450 15-17 520 MX6GG chain set

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility representation only!

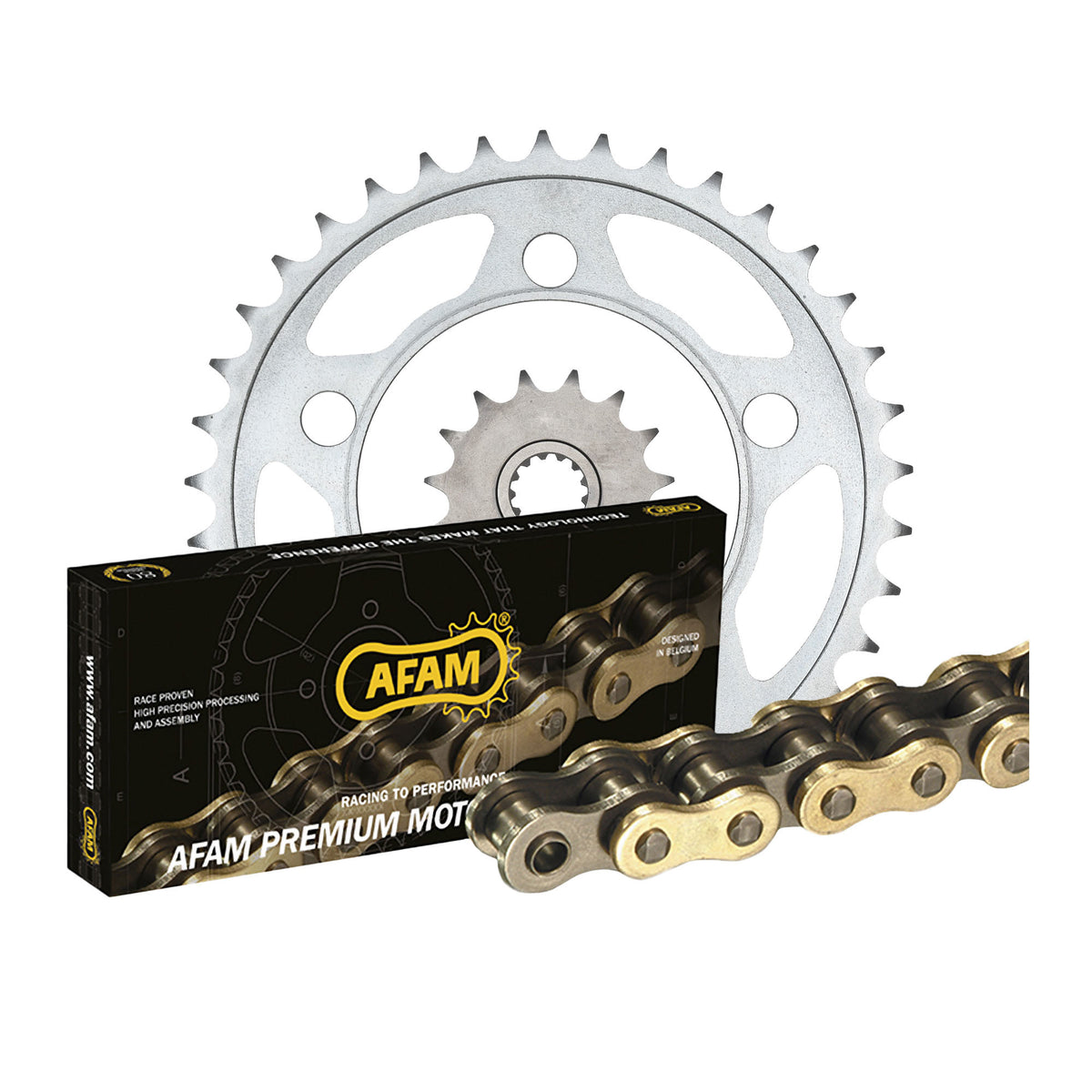

Components of the Suzuki RM-Z 450 RL42A 2015-2017 chain kit

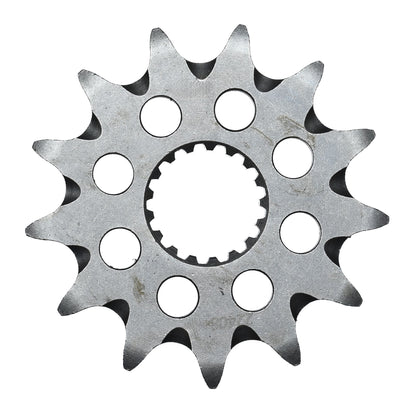

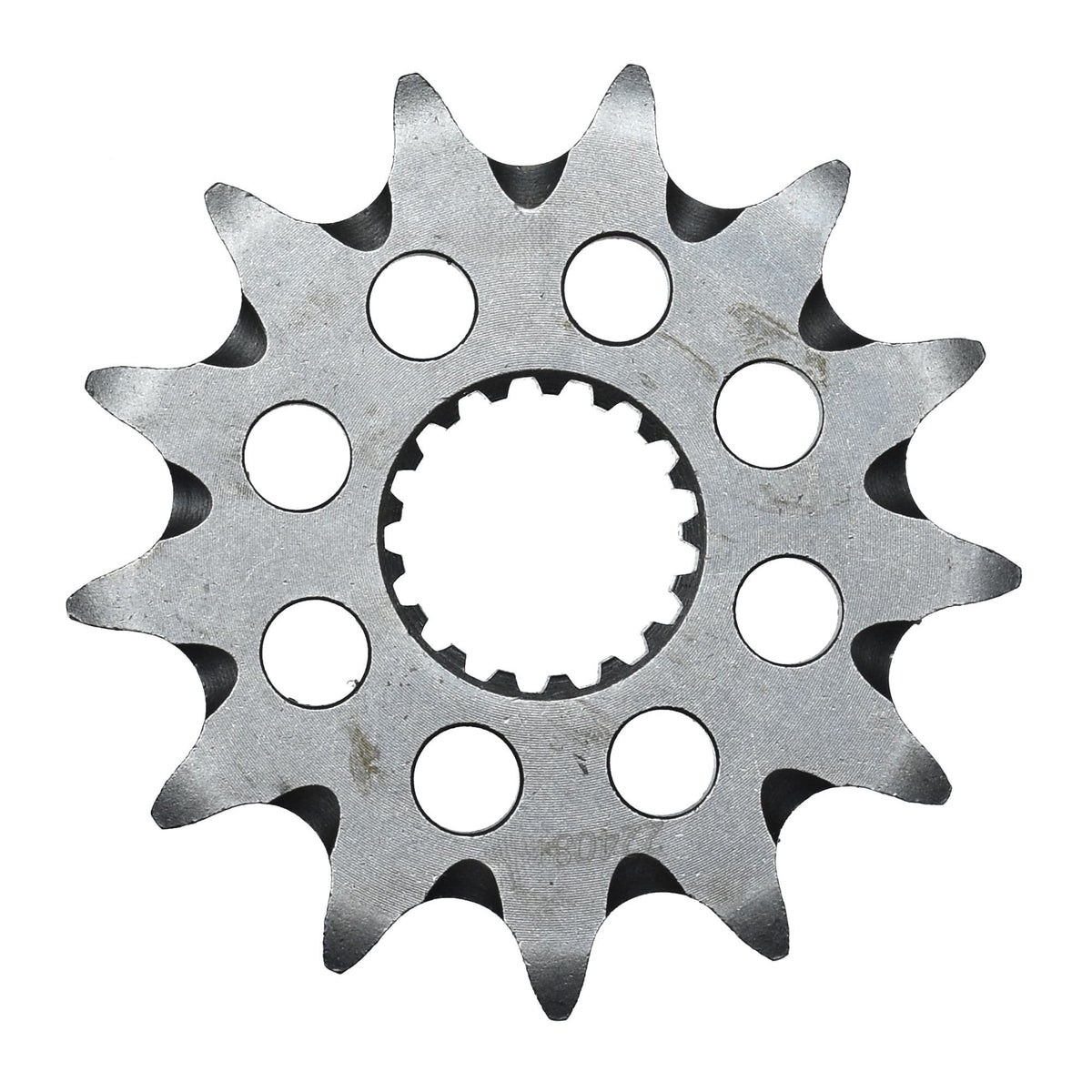

• Front sprocket: AFAM front sprocket #520 SC - a22408.13sc
• Chain: AFAM chain 520 MX6-GG 114 w. clip link - a520mx6.gg.114

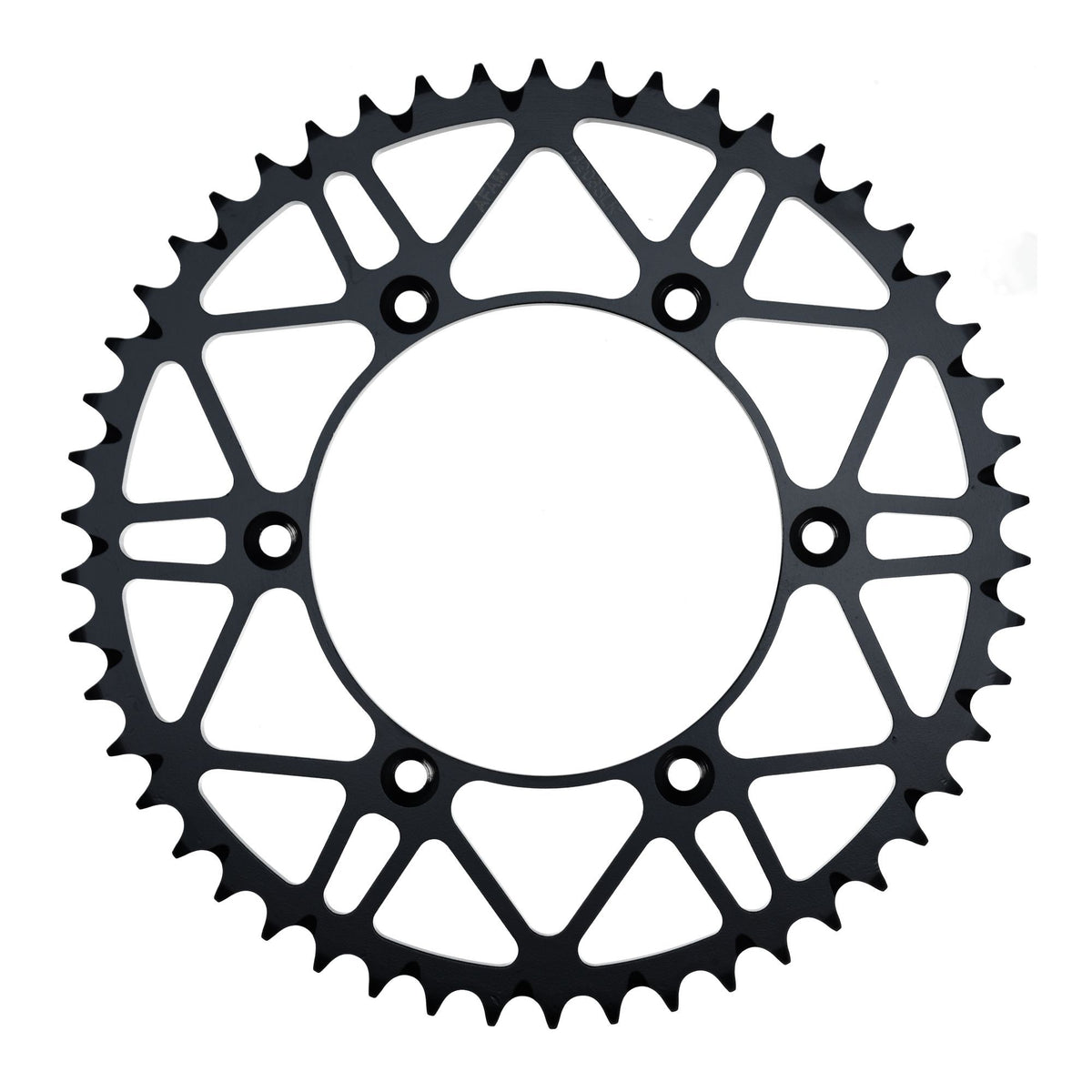

• Rear sprocket: AFAM STEEL rear sprocket #520 w. mud grooves 50 teeth - a14203slk.50
• Gear ratio front sprocket-chain-rear sprocket: 13-114-50

AFAM 520 MX6-GG MX Racing GP

Pure Moto-Cross chain
Without O-rings
Color: Gold/Gold
Application by displacement: up to 500 cc / Moto-Cross only

Technical data:
Pitch: 520
Pin length: 16.8 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 37.40 kN
Weight per 100 links: 1.64 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively for determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-64270

Fits

Suzuki 251 - 500 cc RM-Z 450 RL42A 2015
Suzuki 251 - 500 cc RM-Z 450 RL42A 2016
Suzuki 251 - 500 cc RM-Z 450 RL42A 2017
