AFAM chain kit for Suzuki SV 650 03-06 525 XSR2G chain kit

AFAM Chain Kit for Suzuki SV 650 03-06 525 XSR2G Chain Kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Suzuki SV 650 BY1 2003-2006

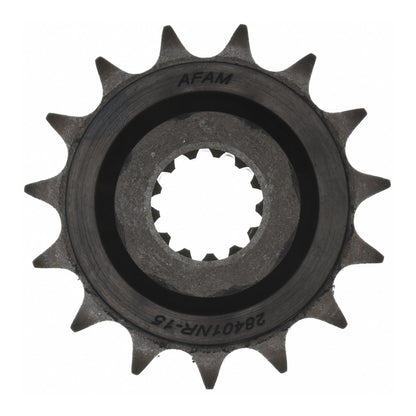

• Front sprocket: AFAM front sprocket 28401-15 rubberized #525 15 teeth - a28401oem.15
• Chain: AFAM chain 525 XSR2-G Xs-Ring 110 with rivet link - a525xsr2.g.110

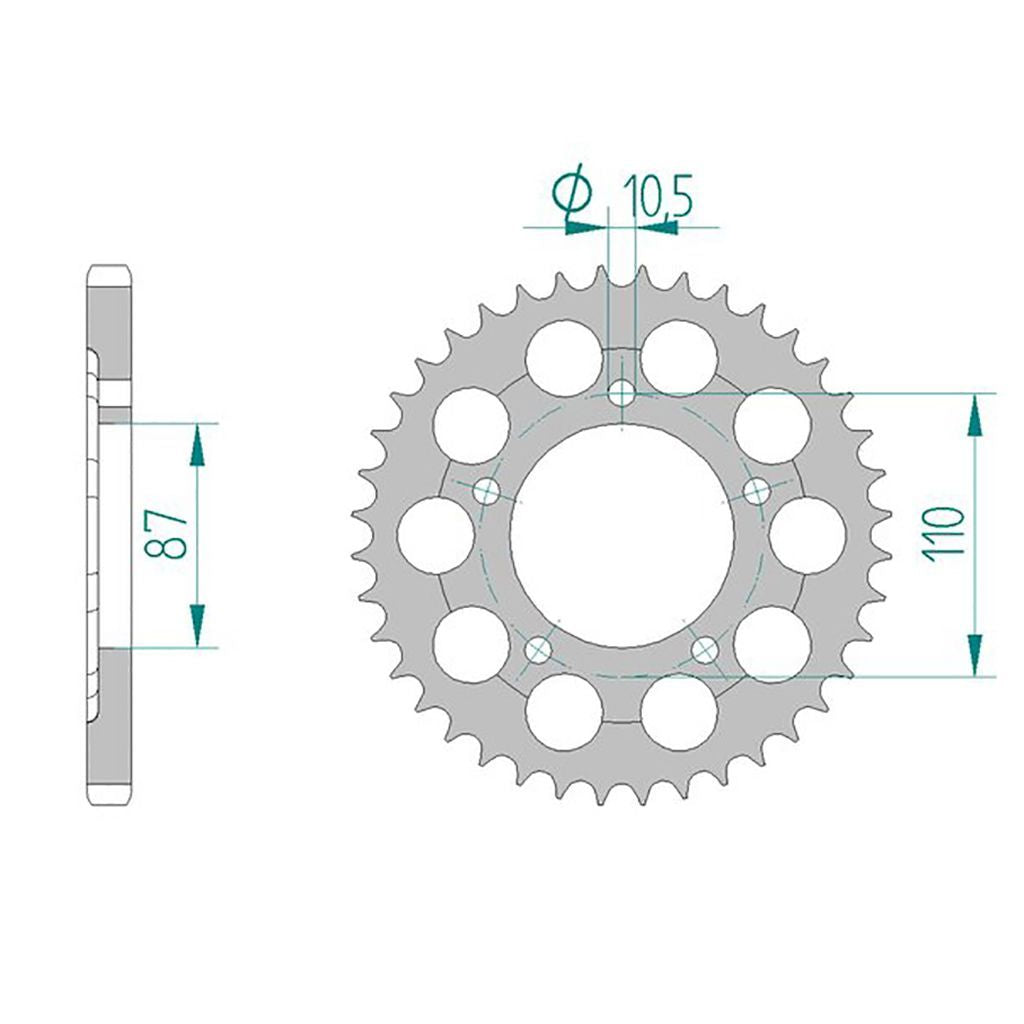

• Rear sprocket: AFAM rear sprocket ALU #525 GSX-R 45 teeth - a15404.45
• Gear ratio front sprocket-chain-rear sprocket: 15-110-45

AFAM 525 XSR2-G

Super reinforced chain with low-friction properties
Xs-Ring chain
Color: Gold
Application by displacement: up to 1000 cc / street and sport

Technical data:
Pitch: 525
Pin length: 22.75 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered goods are an accessory/spare part from a third-party manufacturer that was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-52340

Suitable for

Suzuki 501 - 750 cc SV 650 BY1 2003
Suzuki 501 - 750 cc SV 650 BY1 2004
Suzuki 501 - 750 cc SV 650 BY1 2005
Suzuki 501 - 750 cc SV 650 BY1 2006
