AFAM chain kit for Suzuki SV 650 A ABS 16-20 520 XSRG chain kit

AFAM Chain Kit for Suzuki SV 650 A ABS 16-20 520 XSRG Chain Kit

Chain kit or chain set for the assigned model according to the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Suzuki SV 650 A ABS CX12 2016-2020

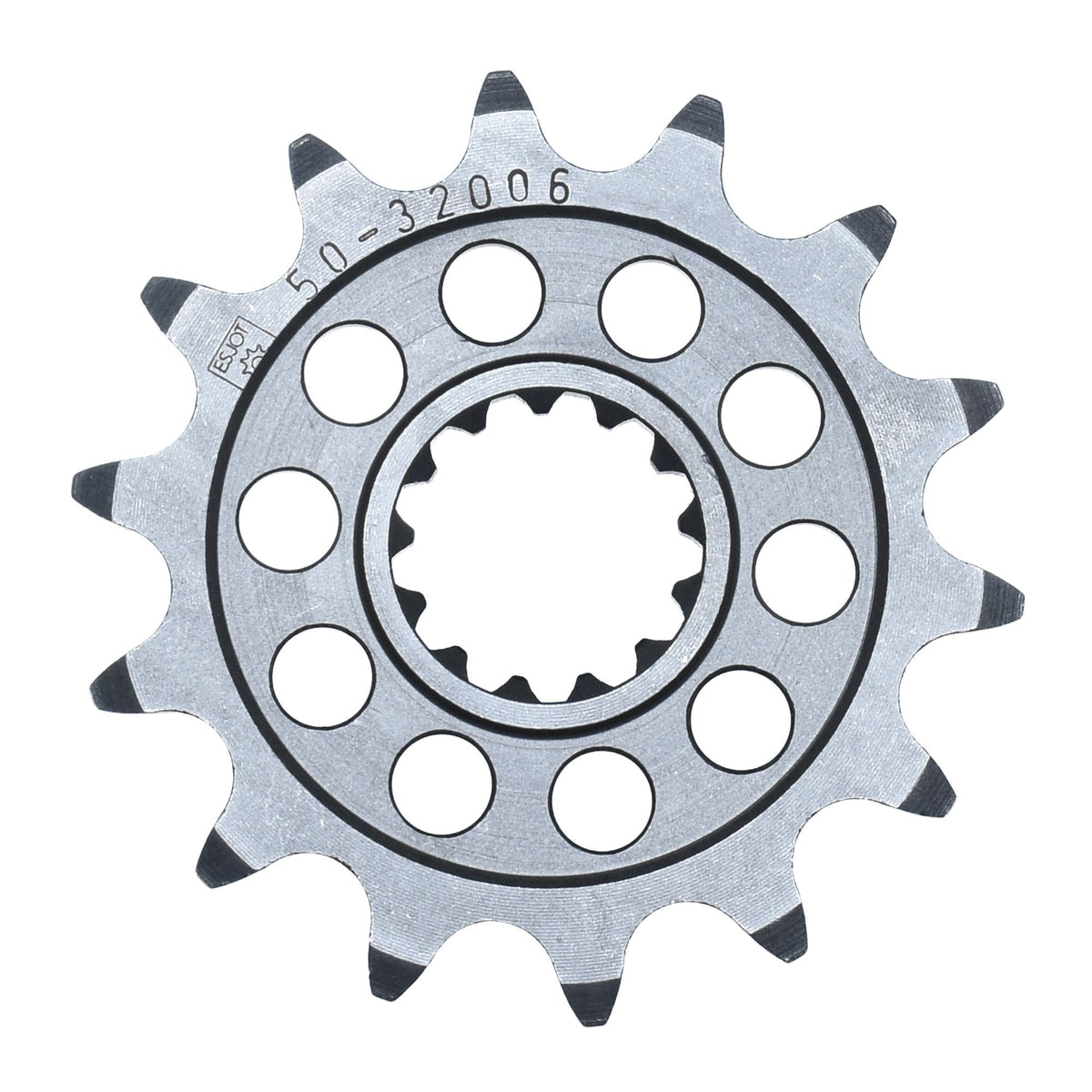

• Front sprocket: Esjot Front Sprocket 27500-15 #520 Sport 15 teeth - a27500s.15
• Chain: AFAM Chain 520 XSR-G Xs-Ring 112 with rivet link - a520xsr.g.112

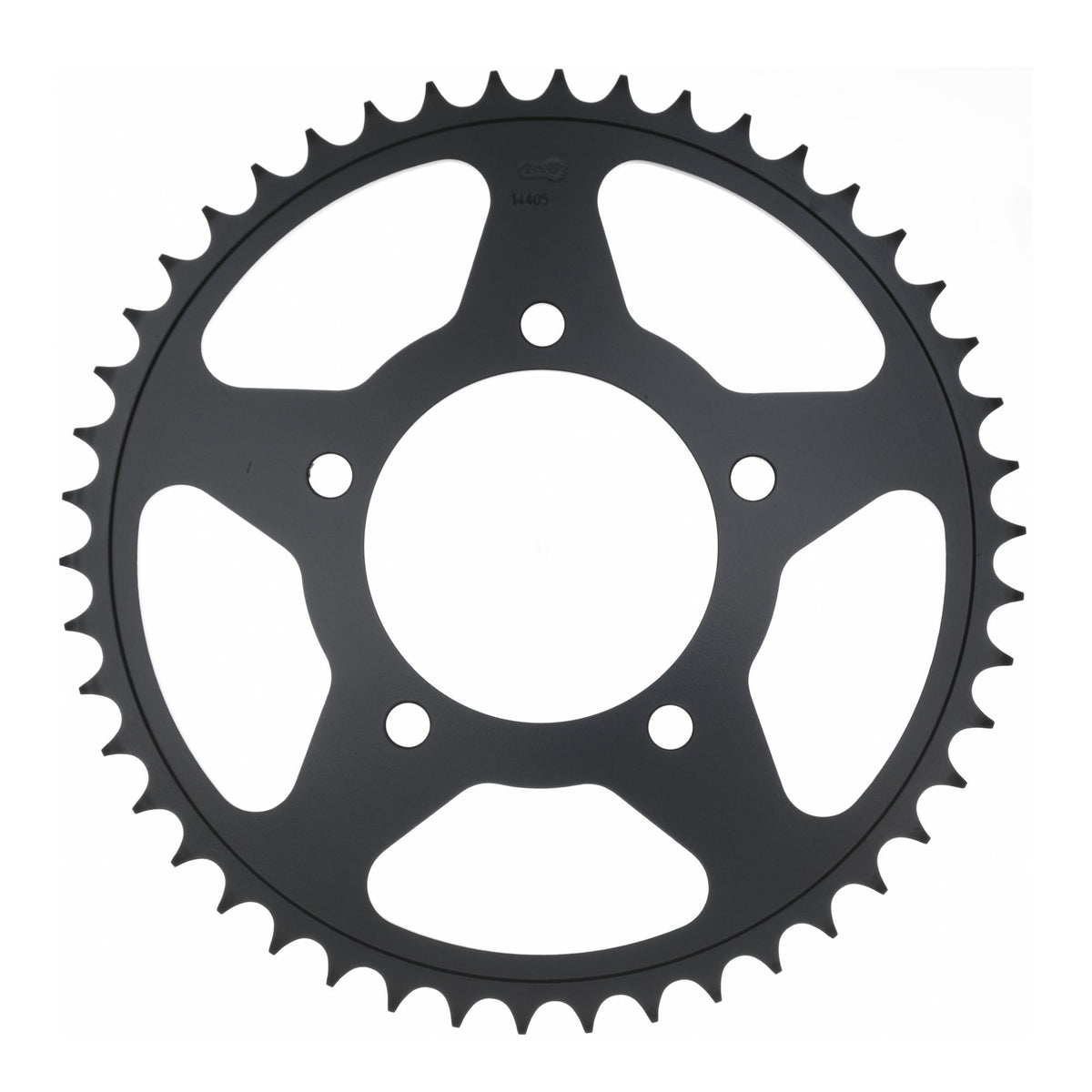

• Rear sprocket: AFAM Rear Sprocket STEEL #520 46 teeth - a14405.46
• Gear ratio front sprocket-chain-rear sprocket: 15-112-46

AFAM 520 XSR-G

Super reinforced chain with low-friction properties
Xs-Ring chain
Color: Gold
Application by displacement: up to 800 cc / road, sport and offroad

Technical data:
Pitch: 520
Pin length: 20.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 36.30 kN
Weight per 100 links: 1.58 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is exclusively for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Part number	KKF-52374

Suitable for

Suzuki 501 - 750 cc SV 650 A ABS CX12 2016
Suzuki 501 - 750 cc SV 650 A ABS CX12 2017
Suzuki 501 - 750 cc SV 650 A ABS CX12 2018
Suzuki 501 - 750 cc SV 650 A ABS CX12 2019
Suzuki 501 - 750 cc SV 650 A ABS CX12 2020
