AFAM chain kit for Suzuki SV 650 S 03-06 525 XHR3G chain kit

AFAM Chain Kit for Suzuki SV 650 S 03-06 525 XHR3G Chain Kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Suzuki SV 650 S BY1 2003-2006

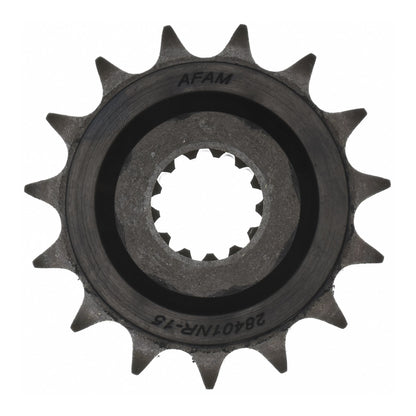

• Front sprocket: AFAM Front sprocket 28401-15 rubber #525 15 teeth - a28401oem.15
• Chain: AFAM Chain 525 XHR3-G Xs-Ring 108 with rivet link - a525xhr3.g.108

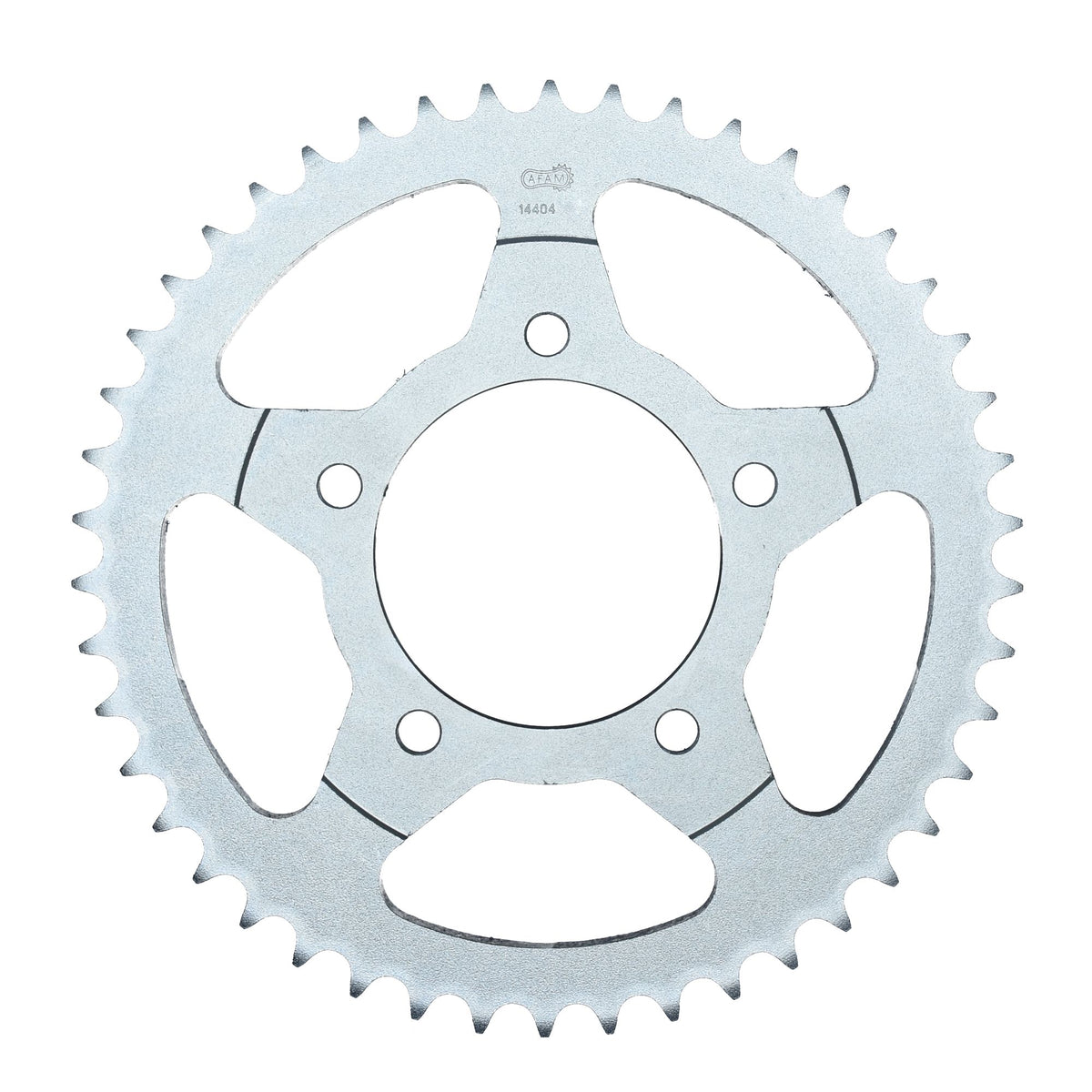

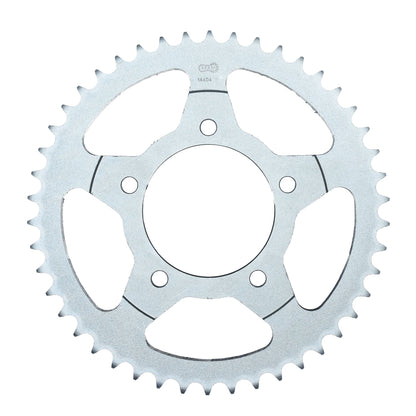

• Rear sprocket: AFAM Steel sprocket #525 44 teeth - a14404.44
• Gear ratio sprocket-chain-rear sprocket: 15-108-44

AFAM 525 XHR3-G

Hyper-reinforced chain with smooth-running properties. The "all-rounder"!
Xs-Ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 525
Pin length: 23.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.06 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-50987

Suitable for

Suzuki 501 - 750 cc SV 650 S BY1 2003
Suzuki 501 - 750 cc SV 650 S BY1 2004
Suzuki 501 - 750 cc SV 650 S BY1 2005
Suzuki 501 - 750 cc SV 650 S BY1 2006
