AFAM chain kit for Suzuki SV 650 SA ABS 08-09 525 XSR2G chain kit

AFAM chain kit for Suzuki SV 650 SA ABS 08-09 525 XSR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit for Suzuki SV 650 SA ABS BY1 2008-2009

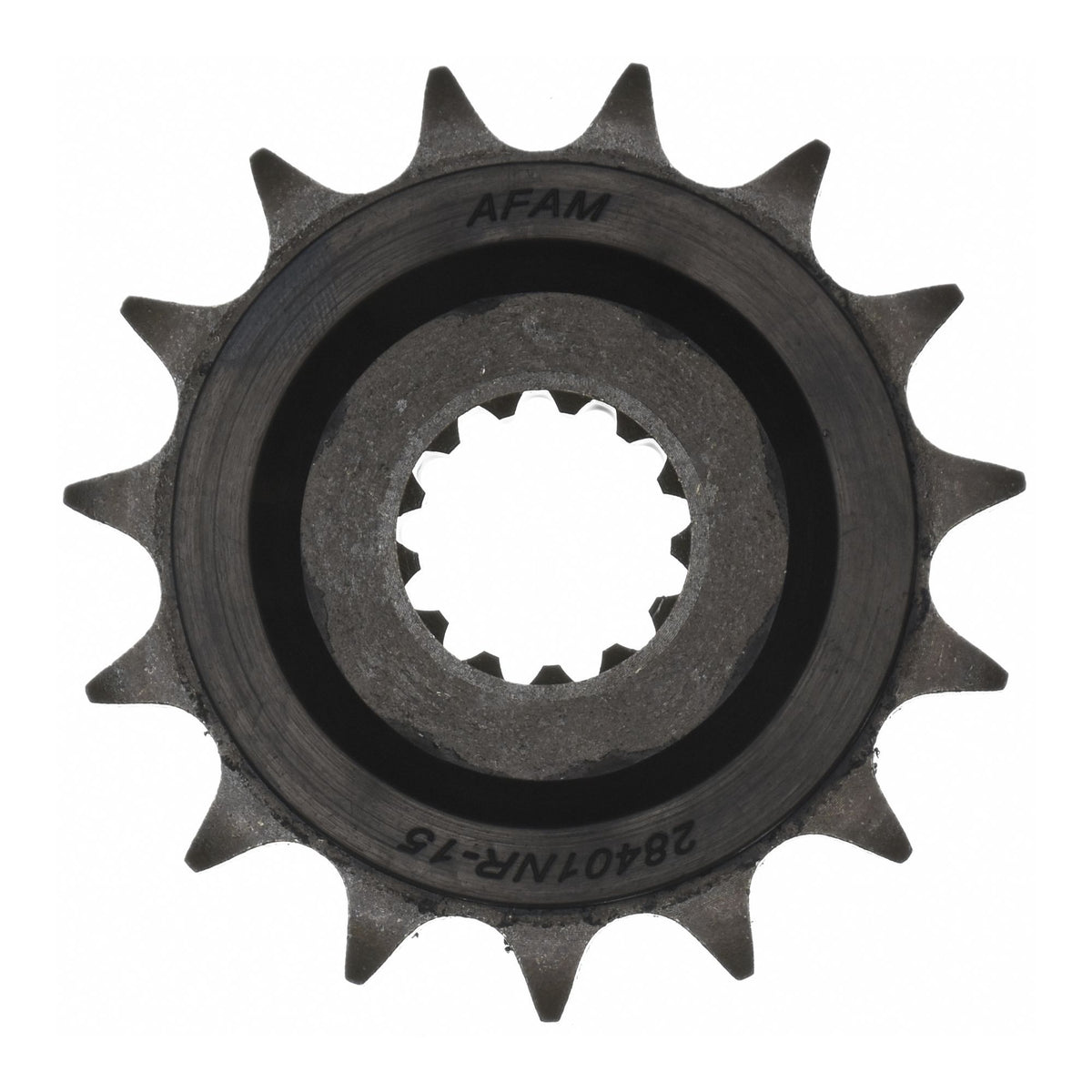

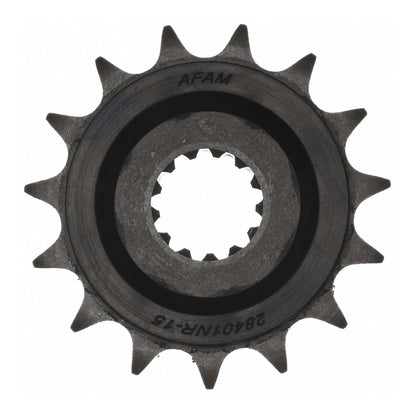

• Sprocket: AFAM sprocket 28401-15 rubber #525 15 teeth - a28401oem.15
• Chain: AFAM chain 525 XSR2-G Xs-ring 114 with rivet link - a525xsr2.g.114

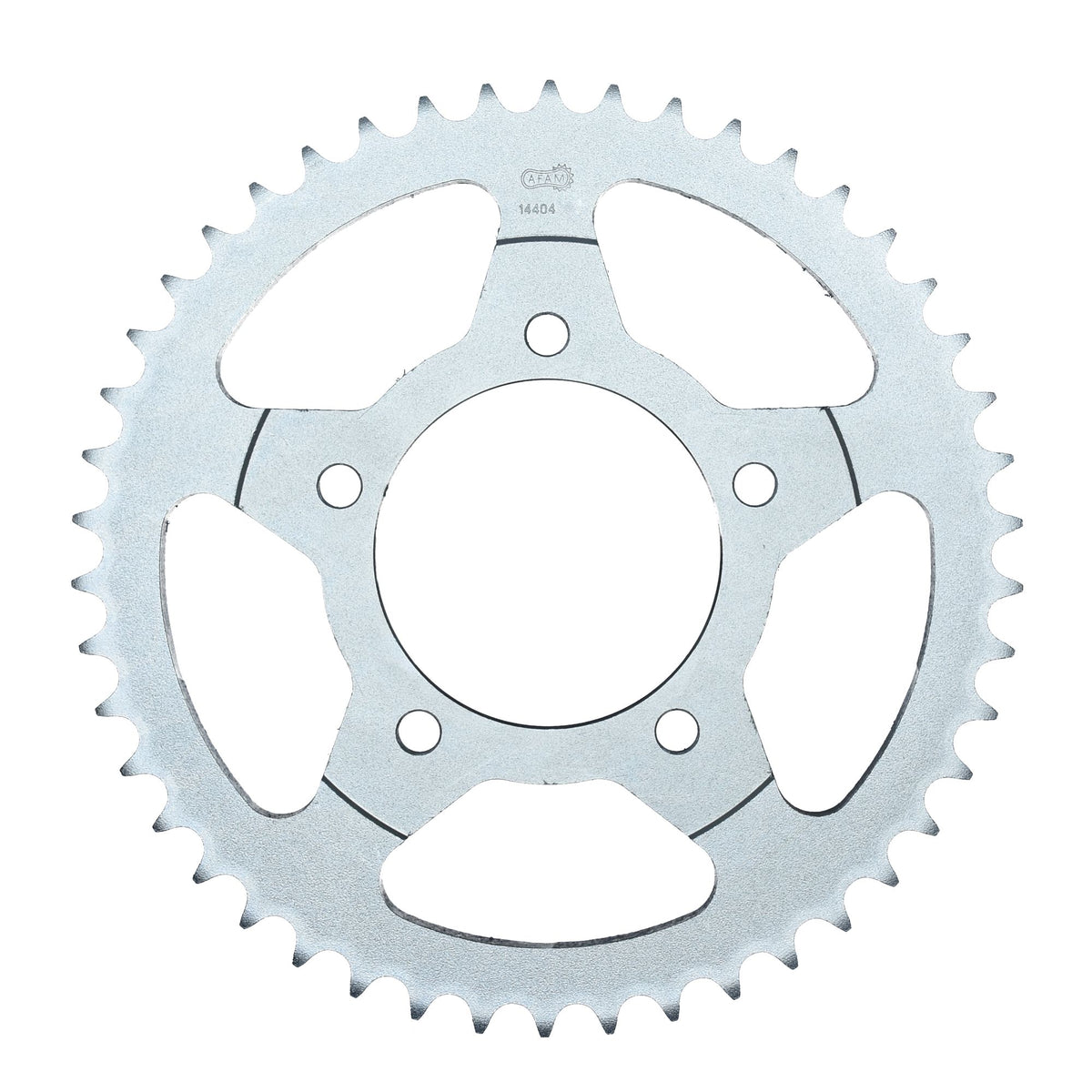

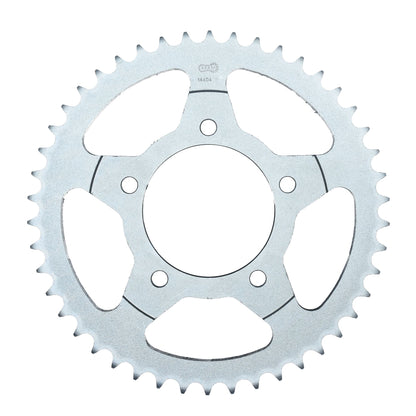

• Rear sprocket: AFAM rear sprocket STEEL #525 45 teeth - a14404.45
• Gear ratio sprocket-chain-rear sprocket: 15-114-45

AFAM 525 XSR2-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / street and sport

Technical specifications:
Pitch: 525
Pin length: 22.75 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-50998

Fits

Suzuki 501 - 750 cc SV 650 SA ABS BY1 2008
Suzuki 501 - 750 cc SV 650 SA ABS BY1 2009
