AFAM chain kit for Suzuki TS 80 ER 81-83 428 R1G chain kit

AFAM Chain Kit for Suzuki TS 80 ER 81-83 428 R1G Chain Kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility purposes only!

Components of the chain kit Suzuki TS 80 ER TS80 1981-1983

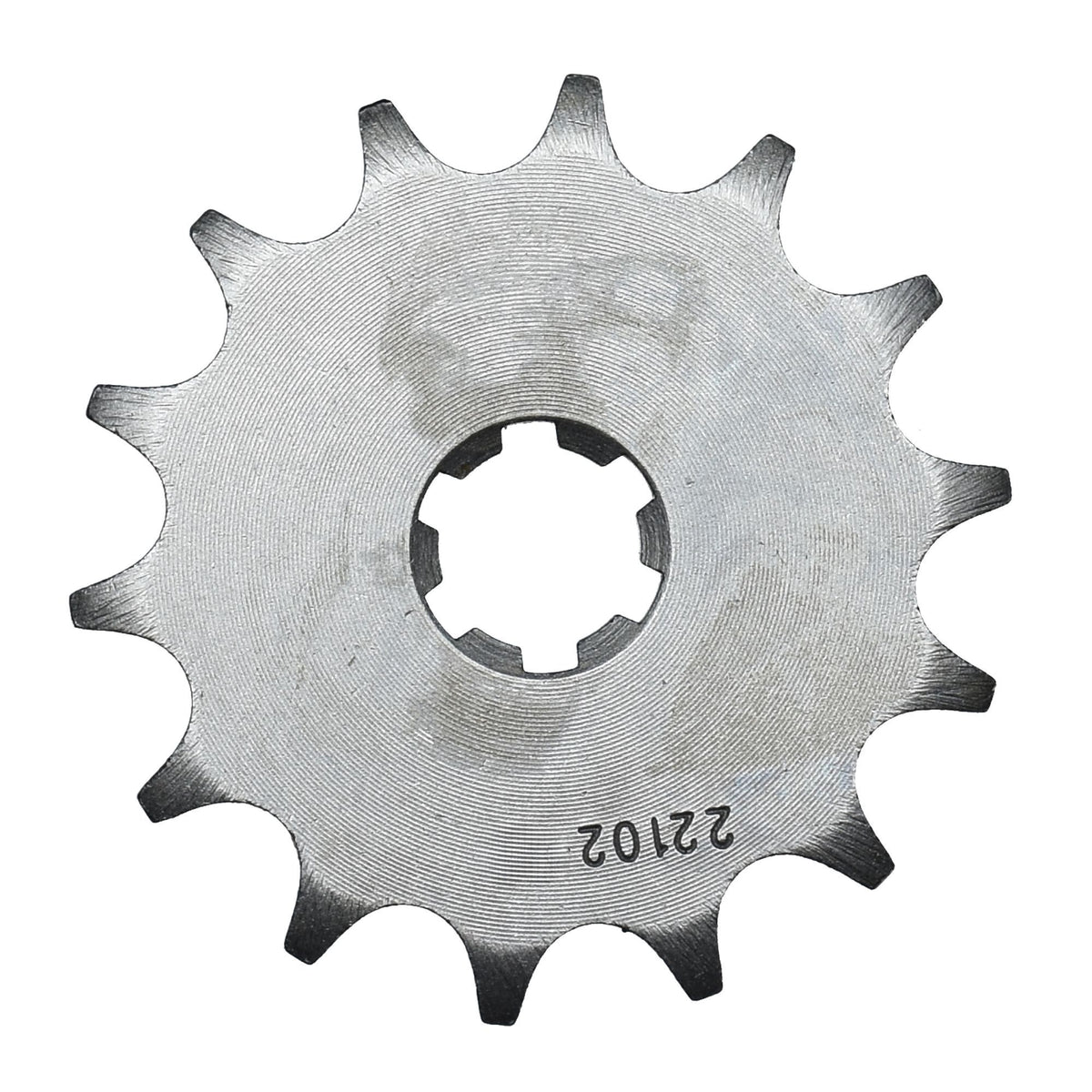

• Sprocket: AFAM sprocket #428 14 teeth - a22102.14
• Chain: AFAM chain 428 R1-G reinforced 114 with clip link - a428r1.g.114

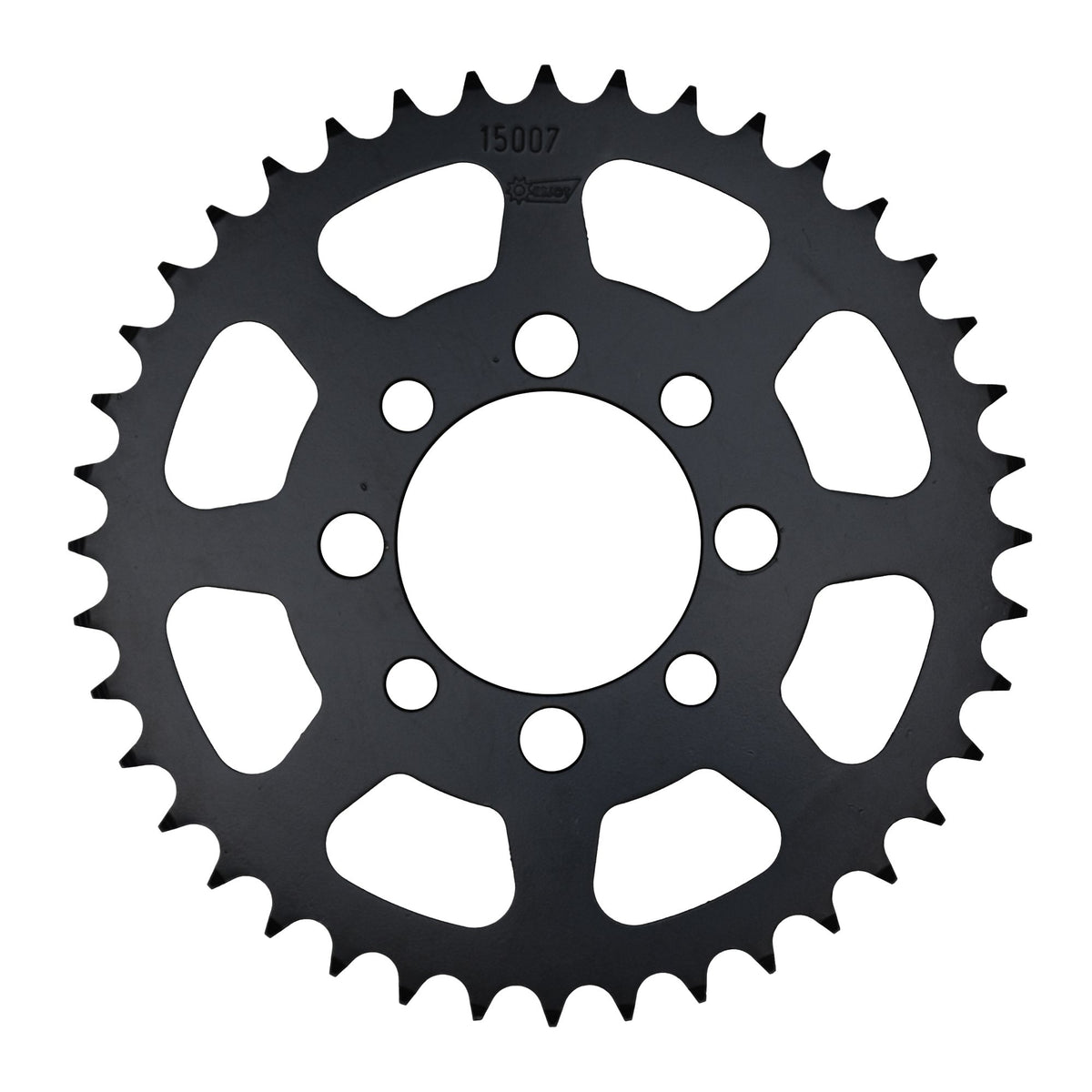

• Chain wheel: AFAM chain wheel STEEL #428 46 teeth - a14101.46
• Transmission ratio sprocket-chain-chain wheel: 14-114-46

AFAM 428 R1-G

Lightly reinforced chain
Without O-rings
Color: Gold
Application by displacement: up to 200 cc

Technical specifications:
Pitch: 428
Pin length: 18.4 mm
Roller Ø: 8.51 mm
Plate thickness: inner: 1.8 mm
Plate thickness: outer: 1.8 mm
Tensile strength: 22.00 kN
Weight per 100 links: 1.01 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the authorization of the motorcycle manufacturer. The mention of the brand serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-52498

Suitable for

Suzuki 0 - 100 cc TS 80 ER TS80 1981
Suzuki 0 - 100 cc TS 80 ER TS80 1982
Suzuki 0 - 100 cc TS 80 ER TS80 1983
